Preventa Fire-Resistant Adjustable Pedestals
Application

Engineered to support pavers and decking, reducing material and construction costs.

Description

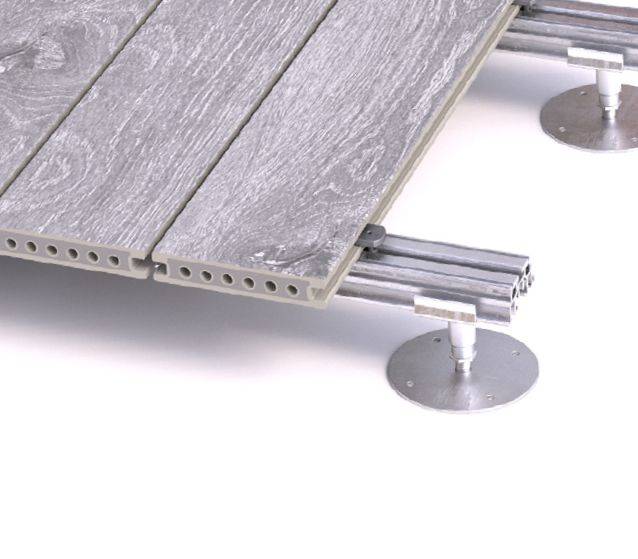

Height adjustable steel pedestals designed for supporting Raaft aluminium joists in the external terrace support structure system.

Preventa is the complete Class A fire-rated, modular terrace system.

Features and benefits:

  • Manufactured from fire and corrosion resistant zinc coated steel.
  • Flat base diameter ensures an even load distribution.
  • Integral locking ring for ultimate stability.
  • Adjustable to suit substrate conditions.

Applications:

Engineered to support pavers and decking, reducing material and construction costs.

General information

Uniclass 2015

Pr_20_85_47_22 Decking and paving pedestalsPrimary

CAWS

Q55/395 Support pedestals

Specification data - Decking and paving pedestals

Product Reference

Preventa Steel Fire-Resistant Adjustable Pedestal 30–40 mm 331010

Preventa Steel Fire-Resistant Adjustable Pedestal 40–60 mm 331011

Preventa Steel Fire-Resistant Adjustable Pedestal 60–100 mm 331012

Preventa Steel Fire-Resistant Adjustable Pedestal 100–180 mm 331013

Preventa Steel Fire-Resistant Adjustable Pedestal 180–340 mm 331014

Standard product features

Base diameter:

120 mm.

Composition:

Zinc-coated steel.

Maintenance:

Once installed the pedestals are typically hidden and not accessible and do not require any further maintenance.

Fixing:

Free-standing installation on to a firm, level surface. The top bracket clips to the joist.
