Prestige AOV Window
Verified by manufacturer 2 days ago
BSI Kitemark
Certificate type
Qualicoat approval
Certificate type
BSI Kitemark
Certificate type
BSI Kitemark
Certificate type
Automatic opening ventilator.
Application
Natural ventilator suitable for commercial applications.
Description

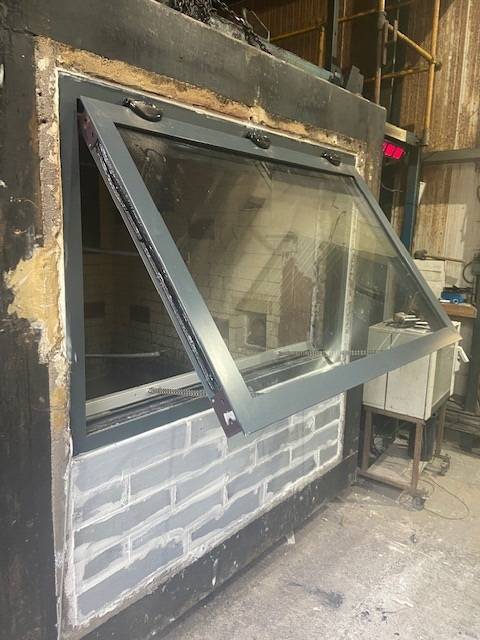

Automatic opening ventilator (AOV) window designed to automatically open in the event of a fire, to allow smoke and heat to escape from a building.
Features and benefits:
- Automatically opens in the event of a fire.
- Allows smoke and heat to escape from a building.
- Tested in accordance with EN 12101-2.
General information
Color | Grey Black Brown Cream White |
Finish | Powder-coated Matt Gloss Metallic Satin |
Material | Aluminium Glass |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: Powder-coated finish, thermlock performance and profile integrity. Ten year Guidance for specification option: Gasket integrity. Other Guidance for specification option: Bespoke guarantee for marine specific locations and bespoke colours. Consult manufacturer for details. |
Uniclass | |
CAWS | L10/330 Aluminium windows L10/25 Aluminium windows |
Specification data - Natural smoke and heat exhaust ventilators
Classification data | |
Standard | To BS EN 12101-2. |
Opening type | Top hung. Bottom hung. Side hung. |
Mounting | Wall-mounted. |
Arrangement | Glazed. |
Dimensions | |
Length | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Width | Manufacturer guidanceInsert requirements.
|
Height | Manufacturer guidanceInsert requirements.
|
Controls | Manufacturer guidanceActuators and controls supplied by SE Controls. Consult manufacturer for details and insert requirements. |
Initiation | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Materials | |
Ventilator | |
Frame | Aluminium. |
Glazing | Double glazing, 28 mm (4/20/4). Guidance for specification option: Clear/ Argon/ Planitherm Total+. Double glazing, 28 mm (4/18/6.8). Guidance for specification option: Clear/ Argon/ Laminated Planitherm Total+. |
Finish | Powder coating. Guidance for specification option: Qualicoat 'seaside class' and Sherwin-Williams approved powder-coating. |
Colour | Anthracite grey, RAL 7016, matt. Pure white, RAL 9010, gloss. Hipca gloss white, RAL 9910, gloss. Jet black, RAL 9005, matt. Cream, RAL 9001, matt. Agate grey, RAL 7038, matt. Squirrel grey, RAL 7000, matt. Pastel turquoise, RAL 6034, matt. Chocolate brown, RAL 8017, matt. Silver metallic effect. Mid bronze metallic effect. Black metallic effect. Black cherry laminated foil. Golden oak laminated foil. White laminated foil. Irish oak laminated foil. Anthracite grey laminated foil. Black brown laminated foil. Chartwell green laminated foil. Bespoke. Guidance for specification option:
|
Integral upstands | |
Material | Aluminium. |
Finish | Powder coating. Guidance for specification option: Qualicoat 'seaside class' and Sherwin-Williams approved powder-coating. |
Colour | As frame colour. |
Seals | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Accessories | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Outer frame | Intermediate, 102 mm sightline. Large, 112 mm sightline. |
Frame profile | Contemporary with reinforced corners and corner fixings. |
Hardware | Extern flag hinges. |
British Fenestration Rating Council Window Energy Rating | B. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Aluminium Glass |
Expected Life | 50 year |
Product certifications
BSI Kitemark
Sheerline ISO 9001:2015
Qualicoat approval
Qualicoat Seaside Class Powder Coating
BSI Kitemark
Classic and Prestige Windows BS 4873/PAS24
BSI Kitemark
Classic and Prestige BS 4873
Literature
Literature type
Sheerline Specification Guide
Sheerline AOV Brochure
