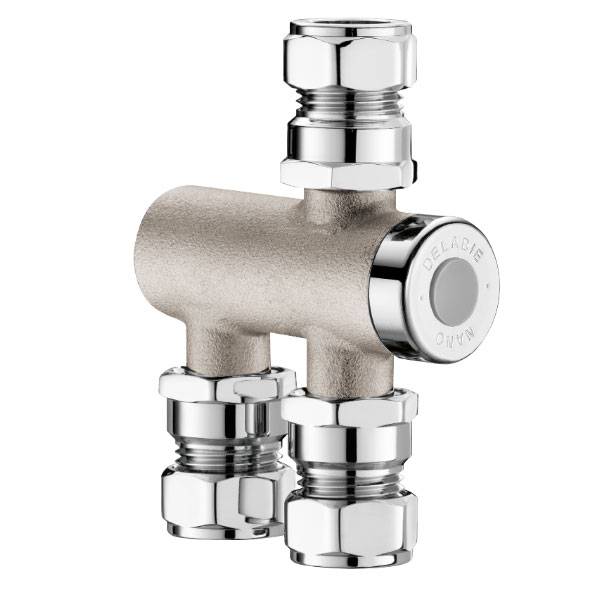

PREMIX NANO Thermostatic Mixing Valve - Water Mixing Valve.
Verified by manufacturer 11 months ago
Nickel plated – 732115
Nickel plated – 732115
Thermostatic water mixing valve.
Application
Suitable for public and commercial washrooms.
Description
Hot water thermostatic mixing valve for mixed water distribution.
Features and benefits:
- Range of 34–60°C.
- For one to two taps or one shower.
- Anti-scalding safety: immediate shut-off if cold or hot water fails.
- Temperature pre-set at 38°C, can be adjusted by the installer from 34–60°C.
- Filters and non-return valves.
- Minimum flow rate to operate: 3 L/min.
- Thermal shocks are possible.
- Non-return valves and filters easily accessible.
- Thermo-reactive cell.
- 30-year warranty.
General information
Color | Silver Other |
Finish | Chrome |
Material | Brass Nickel |
Shape | Rectangle Circle |
Width | 75 mm |
Height | 70 mm |
Warranty description | 30 year |
Uniclass | |
CAWS | S90/680 Thermostatic mixing valves S90/680 Thermostatic mixing valves |
Specification data - Thermostatic mixing valves
Finish | Nickel plated. |
Third-party certification | WRAS and NSF TMV3 approval. |
Operating temperature range | 34–60°C. |
Connector | M ½. Guidance for specification option: 15 mm. |
Inlets/outlets diameter | 15 mm. |
Literature
Premix Nano with Nickel body Data Sheet - 732115
Premix Nano with a Chrome body Data sheet - 732116
