Premium Range Riser Doors
Description

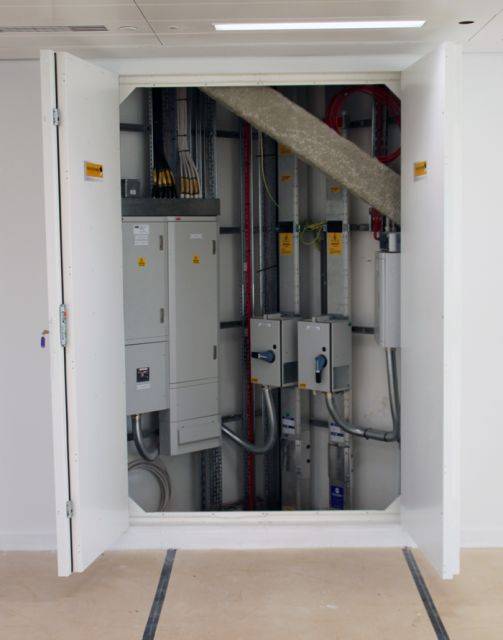

Designed and fire tested specifically for use in riser shafts running through larger buildings. The Access Panel Company fire tested Riser Doors provide protection to riser openings from both sides to prevent fire entering or escaping from the riser shafts and spreading a fire throughout a multi-storey buildings.

This is possibly the most important access door in your building when it comes to preventing the spread of fire to other floors. Doors up to 2700 mm high and 2000 mm wide have been tested guaranteeing accurate real levels of protection. Supplied as complete units and out performing timber door sets in fire situations the doors are faster to fit and blend seamlessly with the surrounding wall for a very discrete look.

The interlocking doors are almost 100 mm thick and are finished in powder coated white as standard with other colours available. The door leafs comprise steel skins to both the outside and the internal face, have an insulated strengthened core and come with high quality stainless steel ironmongery to the passive leaf and three point locking with euro-profile locks to the active leaf. The door has a safety feature which prevents the door being left unlocked accidentally as the key cannot be removed without first securing the door.

General information
Finish

Factory finished polyester powder coated RAL 9010 (other colours available on request)

Uniclass 2015
Pr_30_59_36_01 Access panelsPrimary
CAWS

K10/215 Suspended ceiling system

L20/630 Hatches

K10/30 Metal stud

K10/220 Proprietary suspended ceiling system

K10/50 Suspended ceiling on metal framing

K10/245 Ceiling lining on timber

K10/125 Metal stud partition system

K10/115 Metal stud partition system

K10/430 Access panels

K10/15 Lining on timber

K10/25 Lining on timber framed ceilings

Specification data - Access panels
Product Reference

Premium Range Riser Doors

FireRating

60 minutes

120 minutes

AcousticRating

45 db Rw maximum reduction.

FrameType

Picture Frame (PF)

Simulated Beaded Frame (SBF)

Lock

Euro Cylinder

Square Drive Operated Lock ‘Slik’ Invisible Keyhole (as standard)

Three Point Locking System

Standard product features

Finish:

Factory finished polyester powder coated RAL 9010 (other colours available on request).

Product Options

Air Tightness:

Thermally insulated and air-sealed options available, complying to building regulations parts L1 and L2, BS EN 12207:2000 BS EN 1026:2000.

Door Arrangement:

  • Single Door.
  • Double Door.
  • Triple Door.
