Description

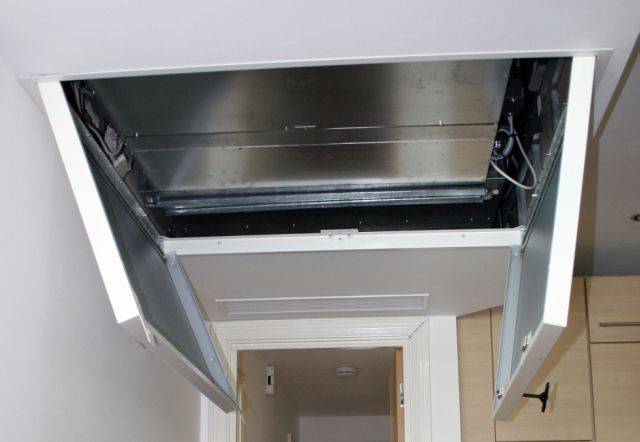

The Premium Range Double Door provides protected access to larger openings in walls or ceilings for access to building engineering services. Available non fire rated or fire rated up to two hours, the doors are finished in powder coated white and can be over painted to blend with the surrounding surface. The panels have full length piano hinges and are a high quality robust solution suitable for everyday use. Fitted with the ‘Slik’ invisible keyhole the panel gives your client all the discrete advantages possible with an access panel.

There are two frame options for the Premium Range Double Door: Beaded frame type (SBF) with perforated flange to key into the surrounding membrane used where the surface has yet to be skimmed or tape and jointed; Picture frame, (PF), where the solid flange sits on the surface of the wall or ceiling and covers the cut edge of the aperture, used when the surface has already been finished and decorated.

The fire rating does not affect the appearance of the panel and the unique design enables the panels to be fire rated without using heavyweight layers of plasterboard which can effect the operation. Door sets 2250 x 1500 mm wide have been successfully fire tested to over two hours duration.

General information
Size

1200 x 1200 mm

1800 x 1200 mm

Finish

Factory finished polyester powder coated RAL 9010 (other colours available on request)

Uniclass 2015
Access panels (Pr_30_59_36_01)Primary
Specification data - Access panels
Product Reference

Premium Range Double Door Access Panel

Size

1200 x 1200 mm

1800 x 1200 mm

Aperture

Ceiling

Wall

FireRating

60 minutes

120 minutes

AcousticRating

63 db Rw maximum reduction.

FrameType

Picture Frame (PF)

Simulated Beaded Frame (SBF)

Lock

Euro Cylinder

Square Drive Operated Lock ‘Slik’ Invisible Keyhole (as standard)

Three Point Locking System

Standard product features

Finish:

Factory finished polyester powder coated RAL 9010 (other colours available on request).

Product Options

Air Tightness:

Thermally insulated and air-sealed options available, complying to building regulations parts L1 and L2, BS EN 12207:2000 BS EN 1026:2000.
