Premier Trellis Panels

Application

For residential and commercial properties.

Description

A range of trellis panels in four designs. Include square, diamond, wing and lattice panels.

Features and benefits:

  • Superior planed finish.
  • Suitable for climbing plants.
  • All fixings are stainless steel.
  • Fully framed with 45 x 50 softwood and 25 x 12 infill battens.
  • Planed, pressure treated timber with a 25 year guarantee.

Application:

For residential and commercial properties.

General information

Features

[Features, Superior planed finish, ideal for climbing plants, is fully framed with softwood and has stainless steel fixings]

-

Finish

[Finish, Planed, pressure treated, stainless steel fixings]

-

Material

[Material, Wood and stainless steel]

-

Size

[Size, 300–1830 mm (height) x 1830 mm (width)]

-

WarrantyDescription

[WarrantyDescription, 25 years. Softwood timber Jakcure® treated products are guaranteed against all wood-boring pests and all forms of wet and dry rot for 25 years]

-

Uniclass 2015

Pr_25_71_57_82 Softwood framed panelsPrimary

CAWS

Q40/30 Proprietary fencing

Q40/430 Proprietary fencing

Specification data - Softwood framed panels

Product Reference

Premier Trellis Panel

Panel size

-

Width

1830 mm

Height

Insert requirements; 300 - –1830 mm.

Frame section

45 x 51 mm

Applied finish

Pressure treated

Softwood infill

-

Pattern

Square

Diamond

Wing

Lattice

Panel thickness

25 x 12 mm battens

Treatment

Pressure treated

Panel toppings

Post caps

Capping rail

Colour

Natural timber

Type

-

Trellis Panels (100 mm squares)

Not required

740100

300 mm high x 1830 mm wide.

740200

430 mm high x 1830 mm wide.

740300

560 mm high x 1830 mm wide.

740500

810 mm high x 1830 mm wide.

740600

940 mm high x 1830 mm wide.

740800

1190 mm high x 1830 mm wide.

740900

1320 mm high x 1830 mm wide.

741000

1450 mm high x 1830 mm wide.

741100

1570 mm high x 1830 mm wide.

741300

1830 mm high x 1830 mm wide.

Lattice Panels (38 mm squares)

Not required

750100

300 mm high x 1830 mm wide.

750200

430 mm high x 1830 mm wide.

750300

560 mm high x 1830 mm wide.

750500

810 mm high x 1830 mm wide.

750600

940 mm high x 1830 mm wide.

750800

1190 mm high x 1830 mm wide.

750900

1320 mm high x 1830 mm wide.

751000

1450 mm high x 1830 mm wide.

751100

1570 mm high x 1830 mm wide.

751300

1830 mm high x 1830 mm wide.

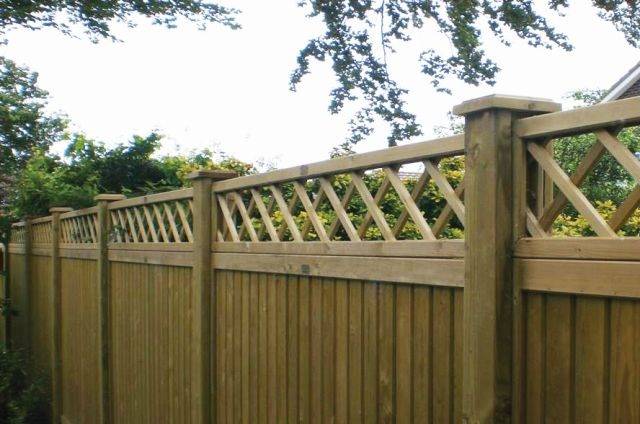

Diamond Trellis Panels with 100 mm squares

Not required

742500

300 mm high x 1830 mm wide.

742600

430 mm high x 1830 mm wide.

742700

560 mm high x 1830 mm wide.

743000

940 mm high x 1830 mm wide.

743100

1190 mm high x 1830 mm wide.

743300

1450 mm high x 1830 mm wide.

743700

1830 mm high x 1830 mm wide.

Wing Lattice panel with 38 mm squares

Not required

775010

Left hand single panel, 560 mm x 940 mm.

775020

Right hand single panel, 560 mm x 940 mm.

775000BM

Wing Trellis panel with 100 mm squares

Not required

744010

Left hand single panel, 560 mm x 940 mm.

744020

744020

Right hand single panel, 560 mm x 940 mm.

744000BM

Concave Topper Panel with 100 mm squares

742200

Size: 1830 x 560 mm at ends.

Convex topper panel (with 100 mm squares):

742100

1830 x 560 mm at centre, 430 mm at the ends.

Product Options

Colour:

Natural timber.

Features:

Superior planed finish, ideal for climbing plants, is fully framed with softwood and has stainless steel fixings.

Finish:

Planed, pressure treated, stainless steel fixings.

Material:

Wood and stainless steel.

Size:

300–1830 mm (height) x 1830 mm (width).

Warranty description:

25 years. Softwood timber Jakcure® treated products are guaranteed against all wood-boring pests and all forms of wet and dry rot for 25 years.
