Description

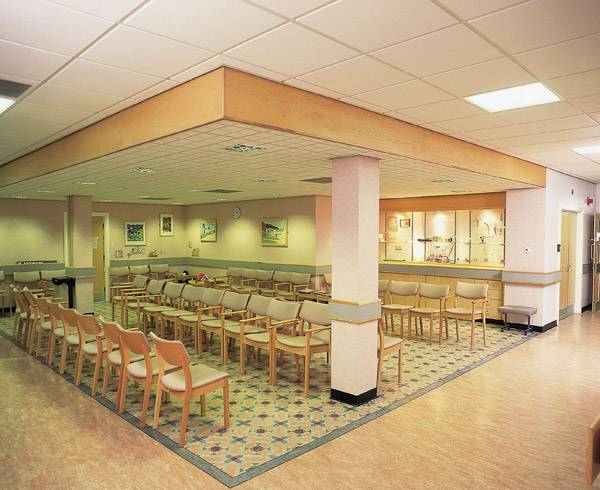

Yeoman Shield Premier Protection Rail hides its functionality in pure aesthetics. It has the appearance of a decorative feature although it is a fully operational protection rail, ideal for those areas where corporate image is a major consideration. The Premier Protection Rail is ideal for use in hospitals, supermarkets, nursing homes, schools, banks, airports, offices and any other areas which are subject to damage by impact or abrasion.

Fixing:

  • Straight runs: At 800 mm centres, 50 mm from internal angles and 100 mm from external angles.
  • To plasterboard: Appropriate length 5 mm machine screw, 5 mm rubber rawlnut.
  • To brickwork, breeze blockwork, concrete: Appropriate length no. 10 woodscrew, no. 10 plastic plug.
  • To lightweight blockwork: Appropriate length no 10 woodscrew, Fischer S8 plastic plug.

General information
Finish

Special colours are available subject to order quantity or premium. The insert is available in a range of finishes (FalmouthEx is provided as a standard finish) to help conceal the effects of impact and abrasion

Uniclass 2015
Wall protection panels (Pr_35_90_43_86)Primary
Specification data - Wall protection panels
Product Reference

Premier Protection Rail

Size (w x l)

200 x ___ mm

Standard width is 200 mm - depending on order quantity or premium, other widths may be available.

As drawing ___

As schedule ___

Colour

Manufacturer's standard

As schedule ___

Special colours are available subject to order quantity or premium.

Insert -
Colour

As schedule ___

Finish

FalmouthEx

Standard finish.

HessianEx

Stippled

Accessories

External corner

Internal corner

Stop end

Signage text '___', colour ___

As drawing ___

Standard product features

Dimensions:

Premier Protection rail is workshop manufactured to suit site sizes, lengths over 2.44 m are jointed on site. The rail is 200 mm wide and has a projection of 20 mm. Rail width can be manufactured to specified width.

Finish:

Special colours are available subject to order quantity or premium. The insert is available in a range of finishes (FalmouthEx is provided as a standard finish) to help conceal the effects of impact and abrasion.

Materials:

Manufactured with a pre-formed MDF backing core with Vinylac face, edge with high quality Ash trims.

Corners:

Internal corners are mitred, Vinylac insert is cut and fitted. External corners are mitred, Vinylac insert is fabricated for continuity. Irregular internal and external corners are manufactured to order.

Product Options

Insert colour:

Standard colours for the insert are listed. Special colours are available subject to order quantity or premium. Signage can be incorporated within rails.

  • BS 00 A 01 - Light Grey.
  • BS 00 A 05 - Mild Grey.
  • BS 00 E 53 - Black.
  • BS 04 E 49 - Pink Rose.
  • BS 04 E 53 - Red.
  • BS 08 B 17 - Mushroom.
  • BS 08 B 21 - Mocha.
  • BS 08 B 29 - Brown.
  • BS 08 E 51 - Yellow.
  • BS 10 B 15 - Cream.
  • BS 10 C 33 - Primrose.
  • BS 10 E 50 - Grapefruit.
  • BS 14 C 31 - Sage Green.
  • BS 14 E 53 - Green.
  • BS 18 C 35 - Pigeon Blue.
  • BS 18 E 53 - Regatta Blue.
  • BS 20 C 33 - Powder Blue.
  • BS 22 B 17 - Lavender.
  • BS 24 C 39 - Aubergine.
  • RAL 1001 - Buff.
  • RAL 2012 - Tangerine.
  • RAL 3003 - Burgundy.
  • RAL 3027 - Red.
  • RAL 4001 - Lilac.
  • RAL 4004 - Bordeaux.
  • RAL 4012 - Amethyst.
  • RAL 5000 - Trafalgar Blue.
  • RAL 5001 - Steel Blue.
  • RAL 5002 - Dark Blue.
  • RAL 5012 - Cornflower Blue.
  • RAL 5017 - Royal Blue.
  • RAL 5018 - Aqua Blue.
  • RAL 5024 - Pastel Blue.
  • RAL 6004 - Opal Green.
  • RAL 6019 - Pastel Green.
  • RAL 6027 - Light Green.
  • RAL 7015 - Dark Grey.
  • RAL 7037 - Dusty Grey.
  • RAL 7046 - Graphite.
  • RAL 9016 - White.
  • Avocado.
  • Blush.
  • Heather.
  • Orange.
  • Sky Blue.
