PPG STEELGUARD 951 - Epoxy coating.
Verified by manufacturer 3 days ago
EPD
Certificate type
Two-component, 100% solids, flexible epoxy intumescent coating for structural steelwork. Suitable for internal and external environments.
Application
Suitable for application on-site and off-site, by single leg, and plural spray.
Description
Two-component, epoxy intumescent passive fire protective coating for structural steelwork. Provides decades of protection for steel framed buildings, tested and certified for both fire and corrosion resistance.
Features and benefits:
- Provides up to 240 minutes protection from cellulosic fires.
- Highly durable, chemically resistant epoxy intumescent coating suitable for internal and external use.
- Excellent corrosion protection suitable for C5 environments without topcoat as per ISO 12944.
- Excellent corrosion protection suitable for C3 environments without primer and topcoat as per ISO 12944.
- Direct-to-metal application over properly prepared, lightly gingered steel where the end use is classified as interior conditioned or general-purpose space.
- High quality finish.
- Low VOC / LEED credit contributor.
- Independently tested and approved in accordance with international fire and corrosion standards including: EN 13381-8, BS 476, ISO 12944, GB 14907, ASTM E119, UL 263, CAN/ULC-S101, and UL-2431-IA Classification.
- CE marked product, ETA 22/079.
General information
Color | Grey |
Finish | Matt |
Material | Epoxy Intumescent |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | M61/150 Off-site coating to unprimed steel M61/110 On-site coating to primed steel M61/115 On-site coating to galvanized steel M61/120 On-site coating to existing steel |
Specification data - Intumescent protective coatings
Classification data | |
Composition | Epoxy-borne. |
Colour | Light Gray. |
Volume solids | 100%. |
VOC | EUR Directive: 2004/42/IIA(i)(500) 0 g/l EPA Method 24: 41.0 g/ltr (0.3 lb/USgal) |
Sustainability data
Manufacturing plant location | |
Material | Epoxy Intumescent |
A1–A3 ('Production stage') | Embodied carbon as defined in BS EN 15804 |
Normalized unit | 4.42 kg CO₂ eq/kg |
Declared unit | 4.42 kg CO₂ eq/kg Certified |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | Lifetime |
Product certifications
Product certifications
EPD
PPG Steelguard® 951 EPD
Literature
Literature type
STEELGUARD® 951

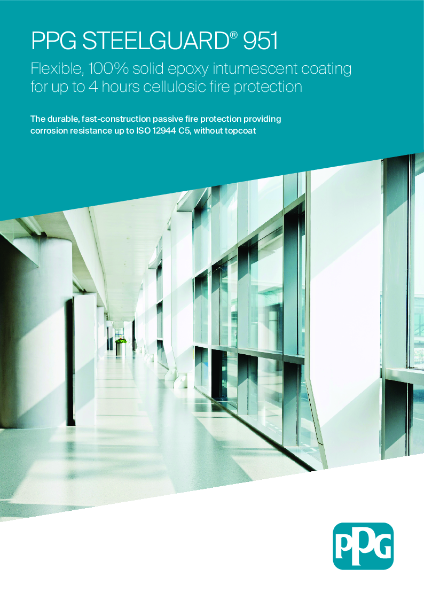

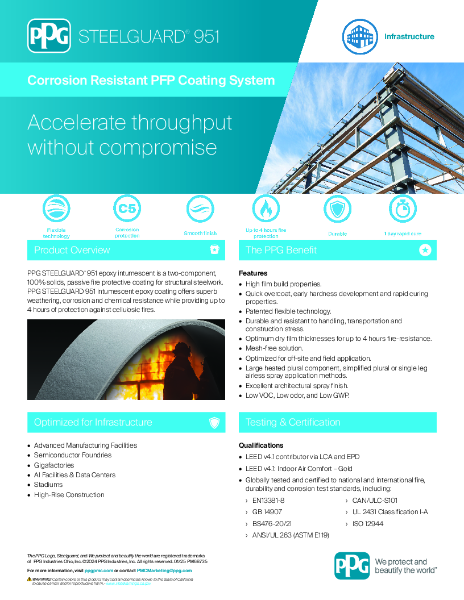

PPG STEELGUARD 951 Brochure

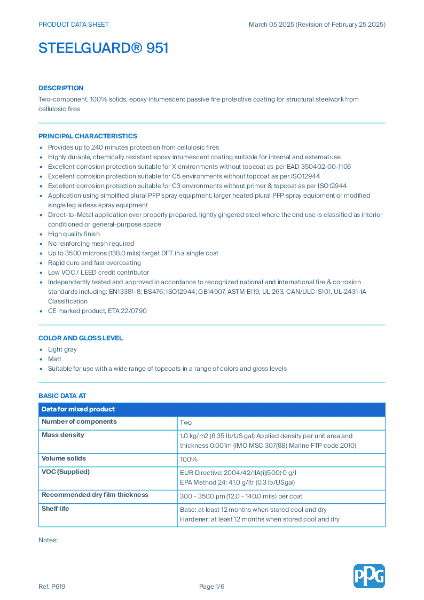

PPG STEELGUARD 951 Information Sheet

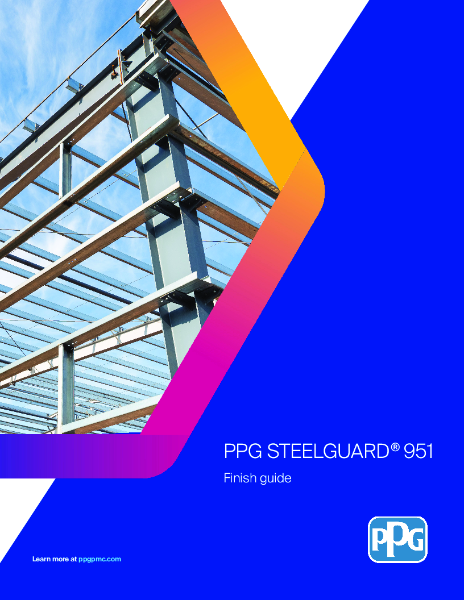

PPG Protective CPFP - Finish Guide - STEELGUARD 951
