PowerPoles and PowerPosts
Verified by manufacturer 1 day ago

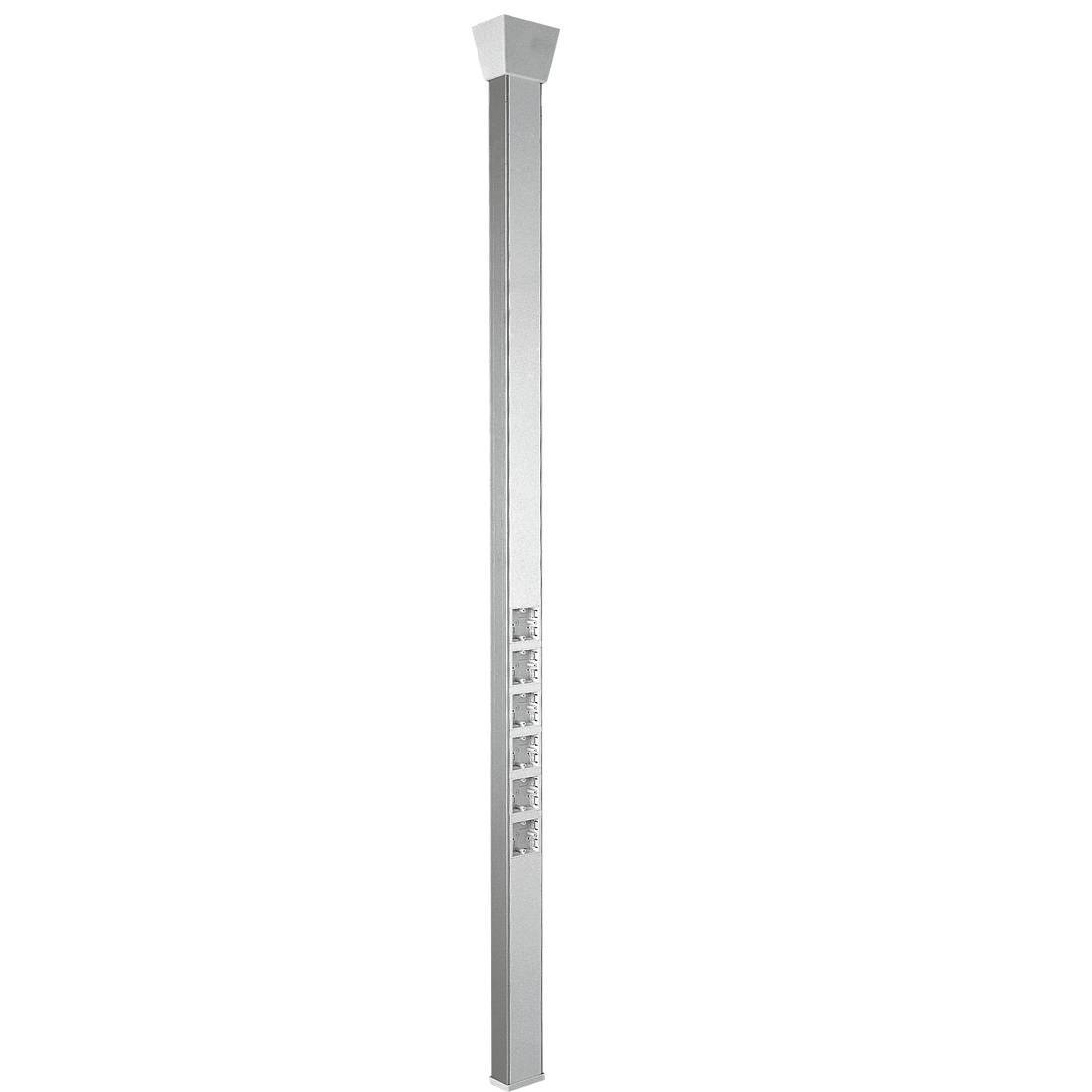

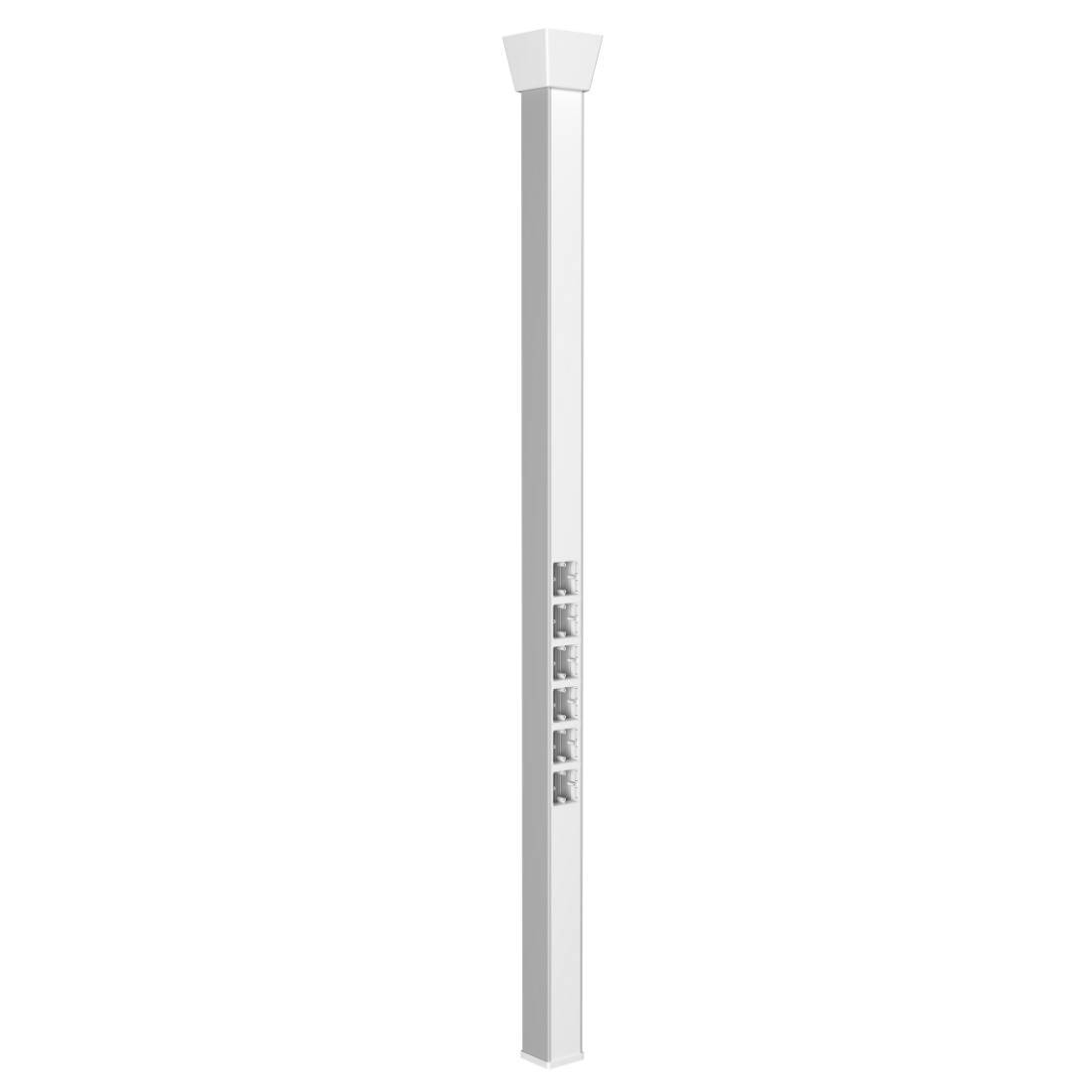

PowerPole
PowerPole
Our square double sided PowerPoles and PowerPosts are a practical solution for the management of power, data and communication services to island workstations.
Application
Provides management of power, data and communication services to island workstation in open environments.
Description
Square double sided PowerPoles and PowerPosts are a practical solution for the management of power, data and communication services to island workstations.
Features and benefits:
- Aluminium body for strength and rigidity
- Suitable for suspended and solid ceiling applications
- Cabling can be fed from the ceiling, from the floor or both
- Supplied with six accessory plates
- Standard 3.6 m PowerPole includes ceiling fixing bracket
- PowerPole extension kit available to extend up to 5 m
- Can be subdivided
- PowerPost designed to fit below standard desk height
General information
Color | White Silver |
Finish | Gloss |
Material | Aluminium PVC-U |
Shape | Square |
Length | 3600 mm 692 mm |
Width | 104 mm |
Height | 104 mm |
Uniclass |
SKU Code | PP36001 |
Specification data - Service outlet poles
Classification data | |
Standard | To BS EN 50085-1 and BS EN 50085-2-4. |
Arrangement | Floor-to-ceiling. |
Material | Extruded aluminium with PVC-U covers. |
Profile | Square. |
Colour | White RAL 9016. Guidance for specification option: Standard. Only available specified with 'powder coated' finish; see 'body finish' below. Natural. Guidance for specification option: Only available specified with 'anodized' finish; see 'body finish' below. |
Single gang outlet boxes | Not required. Required. Guidance for specification option: Available as single gang accessory boxes or single gang adjustable boxes. Consult manufacturer for more details and insert requirements. |
Outlet box arrangement | Double-sided. |
Cover | Flush-fitting. |
Segregation of cabling | Not required. Dividing fillets. Guidance for specification option:
|
Dimensions | 104 x 104 x 3600 mm. Guidance for specification option: Length x width x height. |
Finish | Powder coated. Guidance for specification option: Standard. Anodized. |
Accessories | Not required. Accessory box spacer. Adjustable slide. RCD/ MCB housing. 1 gang accessory box. 1 gang adjustable box. 1 gang accessory plate. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium PVC-U |
Recyclability | Manufacturer guidanceAluminium is 100% recyclable. |
Literature
Literature type
DOC002845-powerpoles
DOC00335-Powerpost
PowerPoles & PowerPosts Catalogue
