Portman 21 - Washbasin 50cm
Description

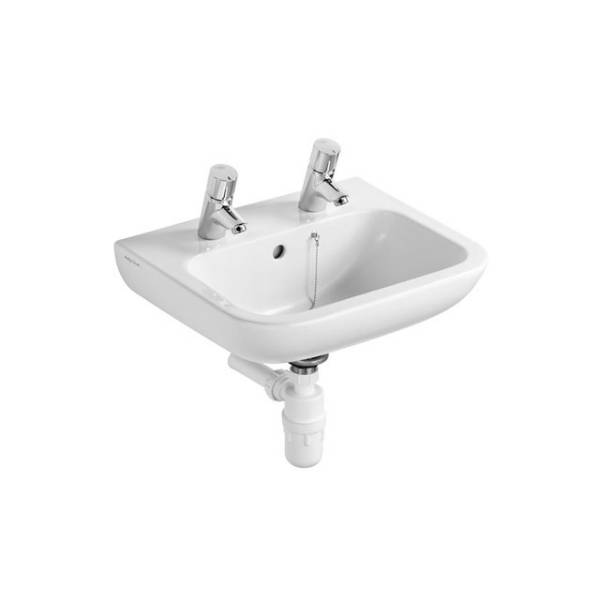

Portman 21 washbasin 50cm, 2 tapholes with overflow and chainstay hole

  • Commercial and domestic use
  • Anti vandal applications
  • Three sizes available
  • With or without overflow
  • 5 taphole options for 50cm basin
  • Option for wall or panel fixing set

General information
Finish

Chrome - (AA)

Neutral / No Finish - (67)

Ultra Steel - (GN)

White - (01)

Size

500 x 420 x 195 mm

Color

White

Features

50 cm 2 taphole with overflow no chainstay hole

50 cm 1 taphole no overflow or chainstay hole

50 cm lh taphole, no overflow or chainstay hole

50 cm centre taphole overflow n o chain

50 cm 2 taphole, chainstay hole & overflow

50 cm rh taphole, no overflow or chainstay hole

50 cm no taphole, chainstay or overflow

50 cm 2 taphole, no overflow or chainstay hole

Material

Vitreous china

Shape

Sculptured

WarrantyDescription

Manufacturers Warranty

Uniclass 2015
Pr_40_20_96_96 Wall-hung washbasinsPrimary
Specification data - Wall-hung washbasins
Product Reference

S2309 - Portman 21 50cm Washbasin

Portman 21 Washbasin 50cm 2 Taphole, Chainstay Hole & Overflow

S2310 - Portman 21 50cm Washbasin

Portman 21 Washbasin 50cm 2 Taphole With Overflow No Chainstay Hole

S2311 - Portman 21 50cm Washbasin

Portman 21 Washbasin 50cm Centre Taphole Overflow N o Chain

S2252 - Portman 21 50cm Washbasin

Portman 21 Washbasin 50cm 1 Taphole No Overflow or Chainstay Hole

S2251 - Portman 21 50cm Washbasin

Portman 21 Washbasin 50cm No Taphole, Chainstay or Overflow

S2319 - Portman 21 50cm Washbasin

Portman 21 Washbasin 50cm With Overflow, No Taphole or Chainstay

Finish

Chrome - (AA)

Neutral / No Finish - (67)

Ultra Steel - (GN)

White - (01)

Standard product features

Washbasin:

  • Capacity: 6.0 litres
  • Material: Vitreous China
  • Weight: 12.73 kg
  • Standards: Vitreous china to BS 3402. Washbasin to BS EN 14688 & BS EN 31

Brassware:

  • Material: Chrome Plated Brass
  • Weight: 1.60 kg
  • Flowrate: 5.00 lpm @ 3bar

Waste:

  • Material: Chrome Plated Plastic
  • Weight: 0.08 kg

Trap:

  • Material: Plastic
  • Weight: 2.00 kg

Product Options

Washbasin wall mounted using E0157 wall fixing set or panel mounted using E0062 fixing set. Alternative S9137 Bracket can be used.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2013 1 1.2
Download now from NBS National BIM Library
