Description

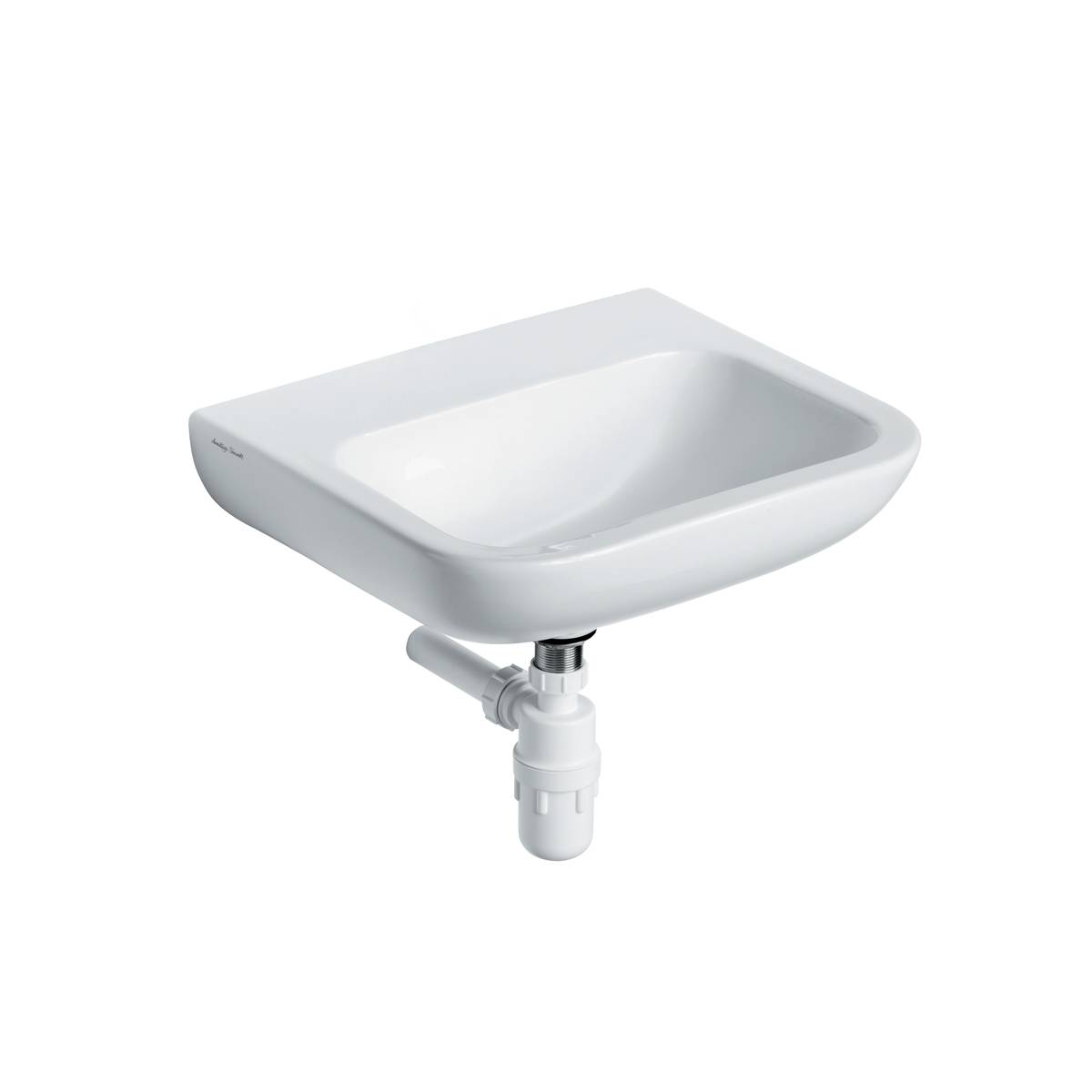

Portman 21 washbasin 40cm, 1 taphole with overflow, no chainstay hole

  • Commercial and domestic use
  • Three sizes available
  • 6 taphole options
  • Anti vandal applications
  • With or without overflow
  • Option for wall or panel fixing set

General information
Finish

Chrome - (AA)

Neutral / No Finish - (67)

Ultra Steel - (GN)

White - (01)

Color

White

Features

40 cm 2 taphole at 100 mm, no overflow or chainstay hole

40 cm rh taphole, no overflow or chainstay hole

40 cm 2 taphole at 170 mm with overflow no chainstay hole

40 cm lh taphole, no overflow or chainstay hole

40 cm 2 taphole at 100 mm, chainstay hole & overflow

40 cm 1 taphole no overflow or chainstay hole

40 cm 1 taphole, overflow, no chainstay

40 cm no taphole, chainstay or overflow

Material

Vitreous china

Shape

Sculptured

Size

400 x 365 x 175 mm

WarrantyDescription

Manufacturers Warranty

Uniclass 2015
Wall-hung hand rinse basins (Pr_40_20_96_95)Primary
Specification data - Wall-hung hand rinse basins
Product Reference

S2157 - Portman 21 40cm Washbasin

Portman 21 Washbasin 40cm 1 Taphole, Overflow, No Chainstay

S2317 - Portman 21 40cm Washbasin

Portman 21 Washbasin 40cm 2 Taphole At 100mm, Chainstay Hole & Overflow

S2158 - Portman 21 40cm Washbasin

Portman 21 Washbasin 40cm 2 Taphole At 100mm, No Overflow or Chainstay Hole

S2315 - Portman 21 40cm Washbasin

Portman 21 Washbasin 40cm 1 Taphole No Overflow or Chainstay Hole

Finish

Chrome - (AA)

Neutral / No Finish - (67)

Ultra Steel - (GN)

White - (01)

Standard product features

Washbasin:

  • Capacity: 3.3 litres
  • Material: Vitreous China
  • Weight: 9.70 kg

Washbasin Wall Fixings:

  • Material: Metal
  • Weight: 0.16 kg

Brassware:

  • Material: Chrome Plated Brass
  • Weight: 2.85 kg
  • Flowrate: 4.70 lpm @ 3bar

Waste:

  • Material: Chrome Plated Metal
  • Weight: 0.22 kg

Trap:

  • Material: Plastic
  • Weight: 2.00 kg

Product Options

S9138 Bracket for 40cm basins Recommended fixing heights (floor to front rim); Nursery use 600mm Infant use 700mm Junior use 750mm Senior/adult use 780-800mm. Washbasin wall mounted using E015767 wall fixing set or panel mounted using E006267 fixing set

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2013 1 1.2
Download now from NBS National BIM Library
