Porta 100 HMT Pocket Acoustics (Sliding Door Hardware)
Verified by manufacturer 3 months ago
EPD
Certificate type

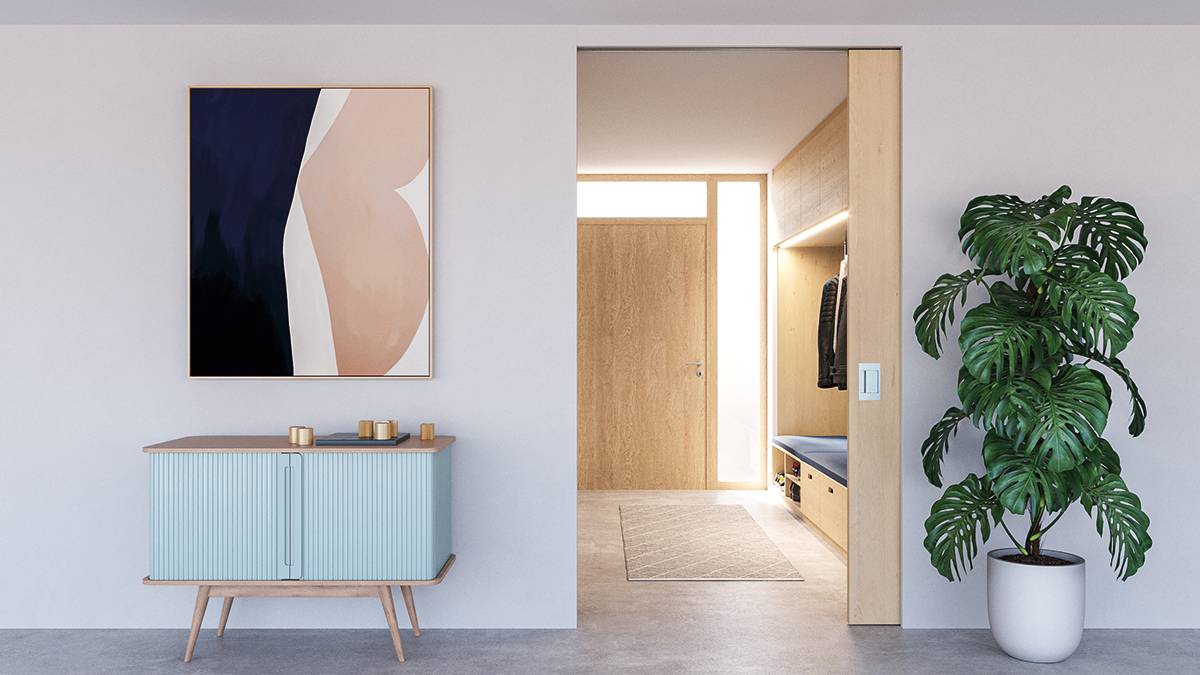

Ceiling mounted sliding door mechanism with surface mounted running track or running track flush with the ceiling, designed for use with one wooden door weighing up to 100 kg.
Application
Suitable for sliding wooden doors in locations such as:
- Private living areas.
- Private and public offices.
- Interior furnishings.
Description
Fitting for top-running wooden doors up to 100 kg, with surface mounted running track or running track flush with the ceiling. Sound attenuation. Ceiling mounting. Wall pocket solution.
Features and benefits:
- Outstanding living comfort thanks to effective exclusion of sound, drafts, odors and unwanted light incidence.
- Ceiling-integrated or surface-mounted pocket solutions possible.
- Door can be installed in pocket after construction is complete.
- Stopper with retention spring.
- Friction-bearing running gear.
- Installation height (minimum): 39 mm.
- Tested in accordance with DIN EN 1527.
Suitable for use with door panels:
- Panel thickness: 39–45 mm.
- Maximum panel width: 1300 mm.
- Maximum panel height: 2500 mm.
- Maximum panel weight: 100 kg.
General information
Color | Grey Black |
Finish | Anodized |
Material | Aluminium Wood |
Shape | Rectangle |
Warranty description | Two year |
Uniclass | |
CAWS | P21/10 Door track and running gear P21/350 Door track and running gear N10/110 Purpose-made N10/10 Purpose-made |
Specification data - Door track and running gear
Standard | To EN 1527. |
Third-party certification | Bern University of Applied Science, Biel, Switzerland. |
Classification grades (minimum) | |
Durability | 6. |
Door mass | 2. |
Initial friction | 3. |
Form | Hawa Porta 60 HTM Acoustics consisting of running track, running gear with friction bearing roolers, SoftStop, stopper with retention spring, running gear support, horizontal seal set, vertical seal. |
Integral accessories | Disposable cover to running track Hawa Porta 45/ 60/ 100, plastic, black. |
Mounting | Ceiling. |
Running track | Anodized aluminium, 2500 mm. Anodized aluminium, 3500 mm. Anodized aluminium, 6000 mm. Anodized aluminium, cut to size. Manufacturer guidancePre-drilled. |
Accessories | Seal. Guidance for specification option: Insert requirements for size and left or right version. Track cleaner. Guidance for specification option: Plastic. Key for dismounting. Guidance for specification option: Zinc coated steel. Hawa Porta 60/100 assembly set. Spring loaded buffer. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Material | Aluminium Wood |
Recyclability | Yes |
Third party certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
EPD
Hawa EPD Sliding door gear EN
Literature
CAT_EN_Hawa_Porta_100_HMT_Pocket_Acoustics
