Porta 100 H Synchro (Sliding Door Hardware)
Verified by manufacturer 3 months ago
EPD
Certificate type

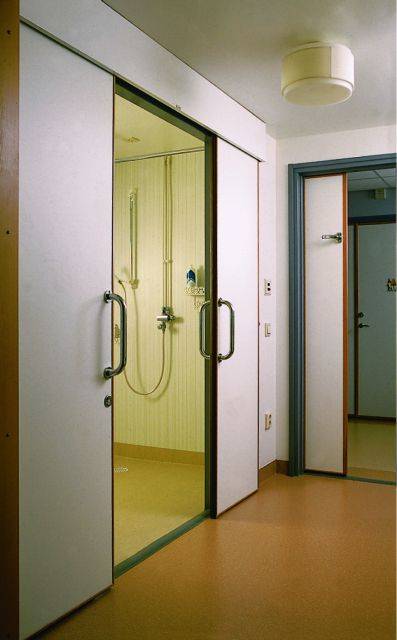

Sliding door mechanism with synchronous opening and closing, designed for use with two wooden doors weighing up to 100 kg each.
Application
Suitable for sliding wooden doors in locations such as:
- Private living areas.
- Private and public offices.
- Interior furnishings.
Description
Sliding door mechanism with synchronous opening and closing, designed for use with two wooden doors weighing up to 100 kg each.
Features and benefits:
- Ceiling or wall mounting (optional floor guide for wall mounting).
- Kevlar cord connects the doors for synchronized opening and closing.
- Adjustable stopper force.
- Ball-bearing running gear.
- Installation height: 53–57 mm.
- Tested in accordance with DIN EN 1527.
Suitable for use with door panels:
- Panel thickness: 28–31 mm.
- Maximum panel width: 1200 mm.
- Maximum panel height: 2400 mm.
- Maximum panel weight: 100 kg.
Components:
Quantities of each component may vary, consult manufacturer for details.
- Fittings available individually or in set with track.
- Spare parts available on request.
- Running track.
- Four-wheeled trolley x 2, with ball bearings and plastic rollers.
- Support bracket both vertically and laterally adjustable (zinc-plated steel x 2).
- Adjustable plastic floor-guide with roller (anthracite finish).
- Plastic stopper with retention spring x 2 (grey finish).
- Hawa Porta Synchro system.
- Supplied with plastic brush for track cleaning.
- Kevlar cord, 10 m.
General information
Color | Grey |
Finish | Anodized |
Material | Aluminium |
Shape | Rectangle |
Warranty description | Two year |
Uniclass | |
CAWS | P21/10 Door track and running gear P21/350 Door track and running gear N10/110 Purpose-made N10/10 Purpose-made |
Product range |
Specification data - Door track and running gear
Standard | To EN 1527. |
Third-party certification | Bern University of Applied Science, Biel, Switzerland. |
Classification grades (minimum) | |
Durability | 6. |
Door mass | 2. |
Initial friction | 3. |
Form | Aluminium, plain anodized, pre-drilled, top hung running track. |
Mounting | Ceiling. Wall. |
Running track | 2000 mm. Guidance for specification option: Standard. 2500 mm. 6000 mm. Manufacturer guidancePre-drilled. |
Accessories/ Other requirements | Not required. Assembly opening and cover cap. Guidance for specification option: For 2500 mm running track only. Manufacturer guidanceOther accessories and spares are also available, consult manufacturer for details. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Recyclability | Yes |
Third party certifications
Third party certifications
EPD
Hawa EPD Sliding door gear EN
Literature
CAT_EN_Hawa_Porta_100_H_Synchro
