Application

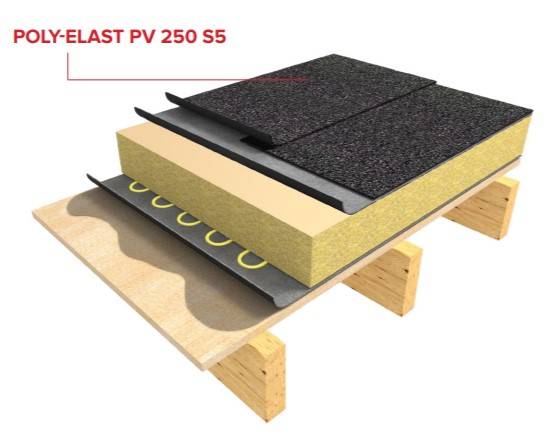

Designed for use as a high performance cap sheet, and can be used as the final waterproofing layer on a variety of TechnoNICOL built-up roofing systems (e.g. torch-safe and full torch-on specifications). The product is compatible with all common bituminous underlay membranes.

Description

A torch-applied, bituminous cap sheet, which is saturated and coated with high quality styrene-butadiene-styrene SBS modified bitumen. It has a 250 g/m² polyester fleece reinforcement, a thermofusible polyethylene film on the underside and has a slate surfaced finish. The product also incorporates a special graphite additive within the coating to provide fire protection properties.

Features and benefits:

  • Torch-on application.
  • Includes graphite technology which actively prevents spread of flames on the roof.
  • Good low temperature flexibility at -25°C.
  • SBS modified bitumen.
  • Tough 250 g/m² polyester reinforcement.
  • CE marked.

Applications:

Designed for use as a high performance cap sheet, and can be used as the final waterproofing layer on a variety of TechnoNICOL built-up roofing systems (e.g. torch-safe and full torch-on specifications). The product is compatible with all common bituminous underlay membranes.

General information
Specification data - Reinforced bitumen roofing sheets
Product Reference

Poly-Elast PV 250 S5 Cap Sheet

Length

5 m

7.5 m

Standard product features

Width:

≥1 m.

Weight:

7.5 kg/m².

Technical characteristics:

  • Straightness (to DIN EN 1848-1): ≤20 mm/ 10 m.
  • Thickness (to DIN EN 1849-1): 5.20 mm (±0.2).
  • Water tightness at 200 kPa test pressure (to DIN EN 192): Passed.
  • Reaction to fire (to DIN EN 11925-2): Class E according to DIN EN 13501-1.
  • Tensile properties maximum tensile force (to DIN EN 12311-1): ≥ 800/ 800 N.
  • Tensile properties elongation (to DIN EN 12311-1): ≥35/ 35%.
  • Flexibility at low temperatures (to DIN EN 1109): ≤-25° C.
  • Flow resistance at elevated temperatures (to DIN EN 1110): ≥+100°C.
  • Chemical resistance: Water-resistant and is resistant to watery solutions of salt, diluted non-oxidising acids and bases. Aliphatic and aromatic hydrocarbons, as well as chlorine hydrocarbons, oils and greases may loosen the product and should therefore be avoided.
