Polar Single Glazed Standard Head

Application

A glass unit which can act as an interior partition or as a layout of a room within a large space.

Description

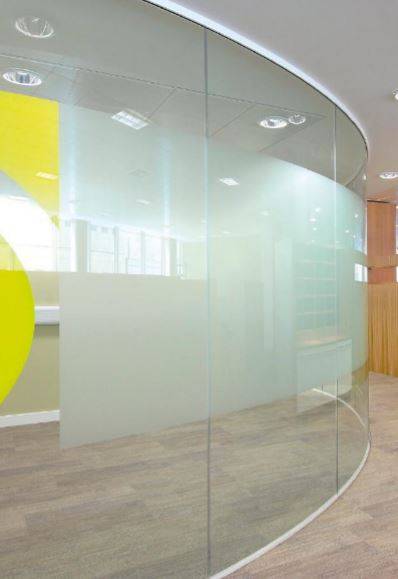

Frameless single glazed glass partition system available in either straight lines, faceted or curves. Polar Single Glazed minimalist form is designed with the minimum of components, thus facilitating speed of erection without compromising structural stability and rigidity. The patented bubble joint ensures a virtually frameless system with no vertical posts between modules, corners or three way junctions.


Polar Single Glazed partitioning can be integrated with other Komfort partitioning systems. Doors can be framed, frameless or sliding. Glazed doors can be single or double glazed. Doorframes can be aluminium, timber or MDF veneered. An extensive range of complementary ironmongery is available.


Features and Benefits:

  • Adaptable designs.
  • Can be ran on straight or curved tracks.
  • Quick and easy installation.
  • Minimum use of components.
  • Doors can be added to the partitions.
  • Acoustic rating (Rw, maximum): 39 dB.
  • Structural rating: Up to severe duty.

General information

Finish

Powder coated finish

Material

Glass / Aluminium

Uniclass 2015

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/10 Relocatable partition system

K30/130 Relocatable partition system

Specification data - Partition panels Enhanced data

Unit size

-

Thickness

12 mm.

Thickness for the glass doors.

44 mm.

Partition height (nominal)

Insert requirement, consult Komfort for details. Maximum height up to 3000 mm.

Deflection allowance (maximum)

-

Head

Insert requirement, consult Komfort for details.

Joint treatment

-

Type

Bubble jointed.

Glazed panels

-

Type

Acoustic laminated safety glass, 10.8 mm thick.

Weight: 29 kg/m².

Acoustic laminated safety glass, 12.8 mm thick.

Weight: 34 kg/m².

Intumescent fire safety glass, 12.4 mm thick.

Consult Komfort for details.

Toughened safety glass, 10 mm thick.

Weight: 27 kg/m².

Toughened safety glass, 12 mm thick.

Weight: 32 kg/m².

Toughened safety glass, 15 mm thick.

Weight: 39.5 kg/m².

With deflection heads.

With deflection heads: ≤30.55 kg/m².

Door arrangement

-

Type

Framed.

Frameless.

Sliding.

Door frames

Not applicable.

For frameless and sliding doors.

Aluminium.

MDF veneered.

Timber.

Head/ abutment channel finish

Insert requirement, consult Komfort for details.

Fire rating for panels

Consult Komfort technical team for details.

Manifestation

Insert requirement, consult Komfort for details.

Ironmongery

Insert requirement, consult Komfort for details.

Door leaf

Insert requirement, consult Komfort for details.

Joints

Bubble Jointed.

Deflection tolerance

Not applicable.

±15 mm.

±25 mm.

Type

Not required.

Three-part.

Environmental information

Country of product manufacture

United Kingdom

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit

Revit 2017

1

2.1
Download now from NBS National BIM Library

Literature

Komfort Partitioning Product Brochure
