Polar Double Glazed Standard Head

Polar Double Glazed Standard Head

Komfort Partitioning Ltd

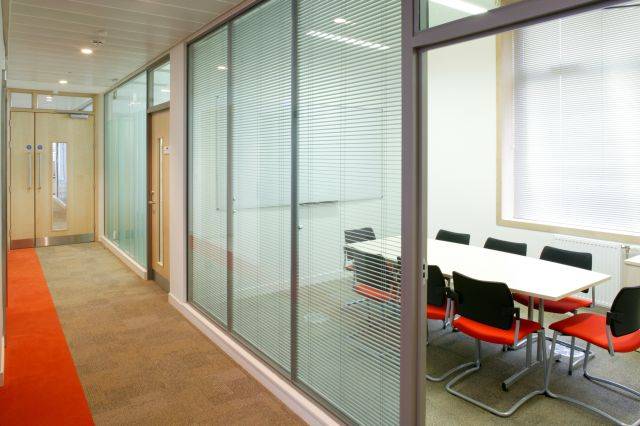

The bubble joint and discreet mullions, or ‘ghost posts’, and framework of Polar Double Glazed combine contemporary aesthetics, elegance and durability.

Jump to:
+44 (0) 1403 390300 www.komfort.com

Application

A glass unit used as an interior partition.

Description

A frameless double glazed glass partition system with discreet mullions, or ‘ghost posts’, and framework combining contemporary aesthetics, elegance and durability.


Polar Double Glazed partitioning can be integrated with other Komfort partitioning systems. Doors can be single-glazed, double-glazed or timber. All doors within double-glazed are framed in either aluminium, timber or MDF veneered.


Features and Benefits:

  • Frame or frameless options available.
  • Can accommodate wide variety of designs.
  • Can be toughened glass or provide extra acoustic protection.
  • Easy installation.
  • Multiple door options available.
  • Multiple thicknesses available.
  • Acoustic rating (Rw, maximum): 49 dB.
  • Structural rating: Up to severe duty.

General information

Finish

Powder coated finish

Material

Glass / Aluminium

Uniclass 2015

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/10 Relocatable partition system

K30/130 Relocatable partition system

Specification data - Partition panels Enhanced data

Unit size

-

Thickness

12 mm.

Thickness value of the door unit.

44 mm.

Partition height (nominal)

Insert requirement, consult Komfort for details. Maximum height of 3300 mm.

Deflection allowance (maximum)

-

Head

Insert requirement, consult Komfort for details.

Joint treatment

-

Type

Bubble jointed.

Glazed panels

-

Type

Available in combinations of the following:

Acoustic laminated safety glass, 10.8 mm thick.

Acoustic laminated safety glass, 12.8 mm thick.

Intumescent fire safety glass, 12.4 mm thick.

Toughened safety glass, 6 mm thick.

Toughened safety glass, 8 mm thick.

Toughened safety glass, 10 mm thick.

Toughened safety glass, 12 mm thick.

Toughened safety glass, 15 mm thick.

With deflection heads.

Door arrangement

-

Type

Framed.

Frameless.

Sliding.

Door frames

Not applicable.

For frameless and sliding doors.

Aluminium.

MDF veneered.

Timber.

Fire rating (maximum)

Consult Komfort technical team for details on fire rating.

Head/ abutment channel finish

Insert requirement, consult Komfort for details.

Manifestation

Insert requirement, consult Komfort for details.

Ironmongery

Insert requirement, consult Komfort for details.

Door leaf

Insert requirement, consult Komfort for details.

Joints

Bubble Jointed.

Deflection tolerance

Not applicable.

±15 mm.

±25 mm.

Type

Not required.

Three-part.

Environmental information

Country of product manufacture

United Kingdom

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit

Revit 2017

1

2.1
Download now from NBS National BIM Library
