+point® ICCP System - Corrosion Management System: Restoration
Verified by manufacturer 7 months ago
Impressed current cathodic protection (ICCP) anode to pass protection current to the structural steel frame of transitional era (1890–1950) buildings, and masonry clad steel frame buildings.
Application
Corrosion protection of structural steel frames within transitional era (1890–1950) buildings which are commonly affected by structural deterioration otherwise known as Regent Street Disease.
Installed using a conventional repointing gun and finishing tools.
Description
Impressed current cathodic protection (ICCP) anode.
Installed using a conventional repointing gun and finishing tools.
Operates behind the heritage mortar finish to pass protection current to the structural steel frame of transitional era (1890–1950) buildings and masonry clad steel frame buildings which are commonly affected by structural deterioration otherwise known as Regent Street Disease.
Features and benefits:
- For permanent and continuous operation.
- Single lifetime application.
- Service life tracking and compliance with ICCP standards via AiMS facility.
- Provides greater flexibility with the design parameters that influence service life.
- Reduces cost of traditional repair.
- Contributes to NetZero initiatives through products and systems that are Environmental Social Governance (ESG) compliant.
- Control zones provide remote access to performance data from embedded sensors and probes to remotely control the current and voltage provided to each zone within the property.
- A continuous record of performance is provided with C-Probe's online service live tracking facility.
Components:
- +point® anode mortar
- CP200 corrosion rate probes (four per zone)
- AchillesICP power, control and monitoring network
- Electrical connections, wiring and environmentally-protected enclosure
- a.c. and broadband connectors at the NAU.
- AiMS facility for ongoing performance management and reporting.
General information
Color | Grey |
Finish | Cement |
Material | Cementitious |
Uniclass | |
CAWS | C42/305 Proprietary repair systems |
Specification data - Embedded impressed current anode systems
Description | Corrosion management system: restoration. |
System performance | Guidance for specification option: Insert requirements or omit. |
System manufacturer | C-Probe Systems. |
Anode | Mortar coating. |
Power supply | AchillesICP power, control and monitoring network. |
Monitoring equipment | CP200 corrosion rate probes (four per zone). |
Standards | Anode is manufactured by C-Probe and compliance tested at anode source to meet: ISO 12696:2016, BSI PAS 8820:2016 and is designed to meet ISO 15257:2019 by Structural Healthcare. |
System code | Manufacturer guidanceInsert details. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Cementitious |
Literature
Literature type
Achilles interactive Management Server (AiMS) - Online Control and Monitoring of Your Structure
+point® - ICCP System for Stone and Brick Clad Heritage Buildings
Background to Corrosion for Heritage Buildings
Case studies

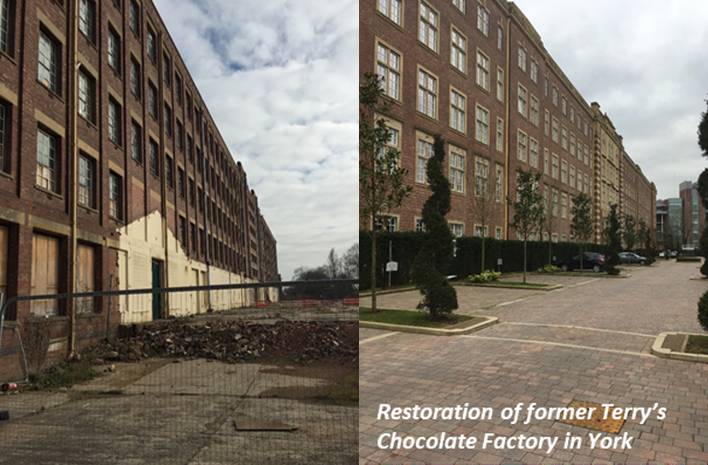

Historic Restoration - Terry's Chocolate Factory York
