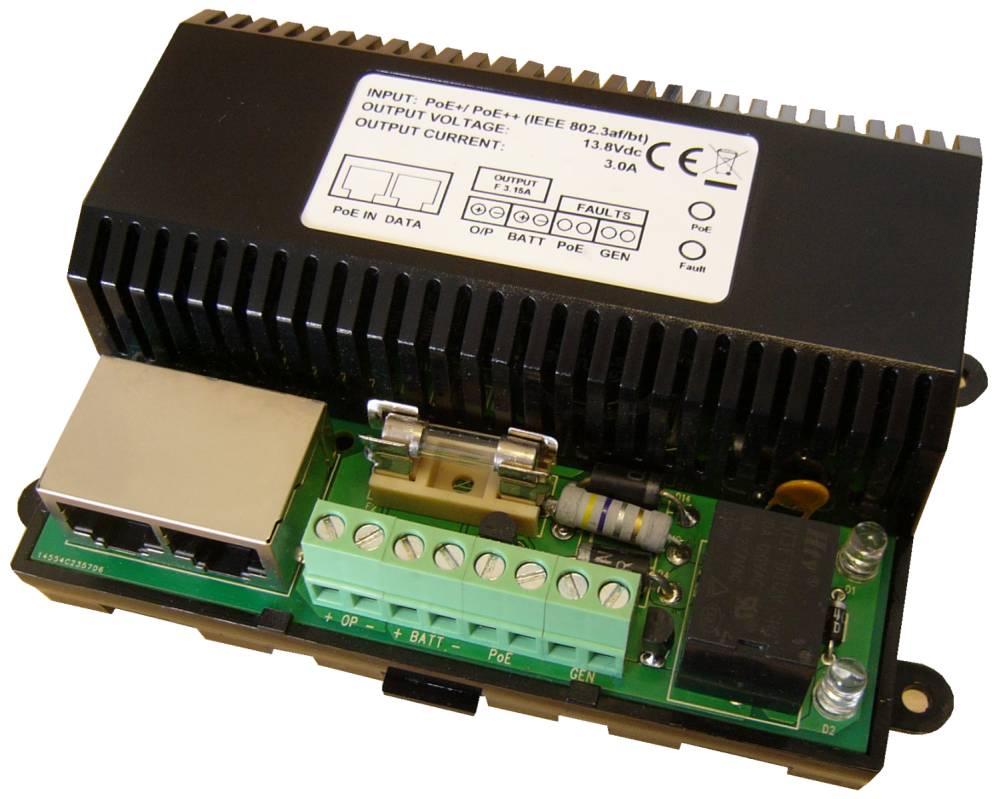

POE ULTRAPOD - UPS unit
Description

A PoE powered device that provides power for critical IP systems such as Access Control, over a single Ethernet cable. The PoE UltraPod™ can charge up to a 12V 17Ah battery whilst continuing to provide a 13.8V dc output of up to 3A. If the PoE power being provided to the input fails, the battery seamlessly takes over continuing to provide the 13.8V dc voltage to the device.


The PoE Ultrapod™ provides up to 3A to the device with an additional 0.5A available for battery charging (PoE++ required). It is capable of powering most common Access Controllers along with the high power locks connected to them.

The PoE Ultrapod™ also has plug and play PoE and data connections, simplifying setup and also removes the requirement for a fused mains spur at the device location.

Features and benefits:

  • Available as a DIN mountable module or a boxed unit.
  • Boxed unit has space for 17Ah battery and fixing points for commonly used access control boards.
  • Provides remote fault monitoring outputs:
    – PoE Input failure.
    – Battery Low.
  • Data pass through for IP connections (10/100Mbps).
  • Powered remotely by:
    – PoE++ (PoE 802.3bt).
    – PoE+ (PoE 802.3at).
    – PoE (PoE 802.3af).
  • Battery Deep Discharge Protection.
