Pocket Doors - Single - Sliding Single Door Frames

Name: Pocket Doors - Single - Sliding Single Door Frames
Brand: Rocket Door Frames Ltd
SKU: qvcNevzCujDysivXayQKaT

Verified by manufacturer 2 months ago

75 mm pocket

Rocket Door Frames Ltd

Sliding pocket single door frames in a range of sizes.

Jump to:

BOS

0330 998 0617 Website

Application

Sliding pocket door frames for internal use.

Description

Sliding pocket single door frames in a range of sizes.

Features and benefits:

Suitable for use with 35 and 44 mm doors (to be specified separately).
Pocket widths of 70, 75 or 90 mm.
Finished wall thicknesses 95–125 mm, depending on pocket width and build-up required.
Supports doors up to 60 kg.
Integral soft brake included.
Self-closing mechanism.
Two single frames can be combined to create a double (double door variation specified separately).
FD30 Version Available

General information

Finish	Galvanized
Material	Steel
Shape	Rectangle
Width	Bespoke
Height	Bespoke
Warranty description	12 year Guidance for specification option: Against against manufacturing and material defects; consult manufacturer for details.

Uniclass	Pr_30_59_24_80 Sliding door and partition setsPrimary
CAWS	L20/525 Sliding pocket doors L20/65 Sliding pocket doors

Specification data - Sliding door and partition sets

Arrangement	Pocket door, 75 mm pocket.
Track system	Manufacturer's standard.
Door leaves	-

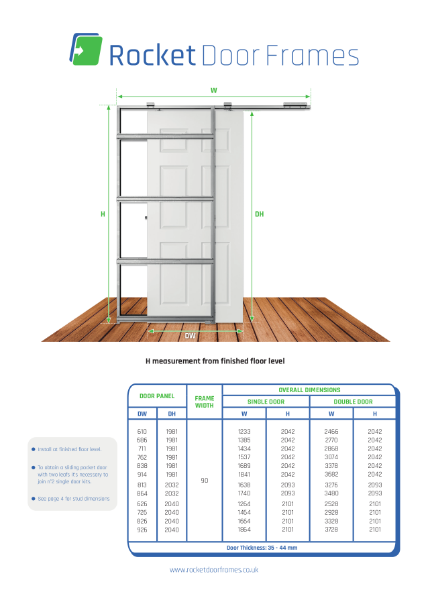

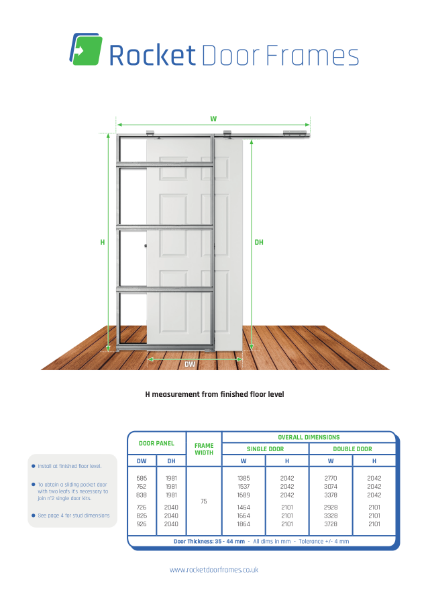

Construction	To suit door panel 686 x 1981 mm. Guidance for specification option: 2' 3" x 6' 6". Overall dimensions (width x depth): 1389 x 2042 mm. Passage (without jamb kit): 685 mm. Pocket width: 700 mm. Finished passage (width x height; including jam kit): 661 x 19719 mm. To suit door panel 762 x 1981 mm. Guidance for specification option: 2' 6" x 6' 6". Overall dimensions (width x depth): 1541 x 2042 mm. Passage (without jamb kit): 761 mm. Pocket width: 776 mm. Finished passage (width x height; including jam kit): 737 x 1971 mm. To suit door panel 838 x 1981 mm. Guidance for specification option: 2' 9" x 6' 6". Overall dimensions (width x depth): 1693 x 2042 mm. Passage (without jamb kit): 837 mm. Pocket width: 852 mm. Finished passage (width x height; including jam kit): 813 x 1971 mm. To suit door panel 726 x 2040 mm. Guidance for specification option: Overall dimensions (width x depth): 1467 x 2101 mm. Passage (without jamb kit): 724 mm. Pocket width: 740 mm. Finished passage (width x height; including jam kit): 700 x 2030 mm. To suit door panel 826 x 2040 mm. Guidance for specification option: Overall dimensions (width x depth): 1667 x 2101 mm. Passage (without jamb kit): 824 mm. Pocket width: 840 mm. Finished passage (width x height; including jam kit): 800 x 2030 mm. To suit door panel 926 x 2040 mm. Guidance for specification option: Overall dimensions (width x depth): 1867 x 2101 mm. Passage (without jamb kit): 924 mm. Pocket width: 940 mm. Finished passage (width x height; including jam kit): 900 x 2030 mm. Manufacturer guidance Door leaf to be specified separately.
Operation	Manual, with soft brake.
Hardware	Guidance for specification option: Insert requirements or omit if to be specified separately.
Accessories	Guidance for specification option: Consult manufacturer for options and insert requirements or omit.

Configuration/ Design	With 75 mm timber stud, 12.5 mm plasterboard to both sides. Guidance for specification option: Insert details, drawing or schedule references as required. Finished wall thickness: 100 mm. With 100 mm timber stud, 2x 12.5 mm plasterboard to both sides. Guidance for specification option: Insert details, drawing or schedule references as required. Finished wall thickness: 125 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	Italy
Country of product manufacture	Italy
Recycled content As defined in clause 7.8 of BS EN ISO 14021	95 %
