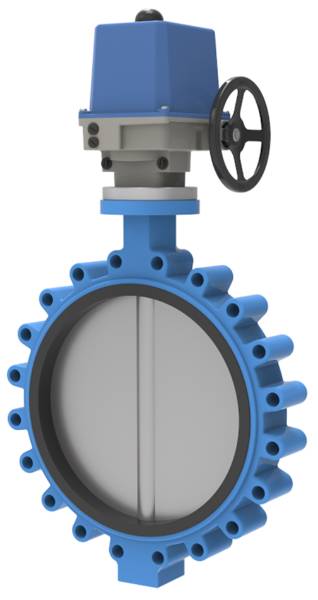

PN16 and PN25 Fully Lugged Electric Actuated Butterfly Control Valves
Verified by manufacturer 6 months ago
DN65 PN16
DN65 PN16
Statement of compliance
Certificate type
Lugged electric actuated butterfly valves.
Application
Used on ON/OFF applications. Coolers. Chillers.
Description
FLOWCON IVC PN16 AND PN25 lugged electric actuated butterfly valves.
Features and benefits:
- Valve:
- Fully lugged bolt pattern
- Valve size: 65–600 mm.
- Body Spheroidal Graphite Ductile Iron
- Disc, Pin & Spindle AISI 431 Stainless Steel
- Bonded Vulcanized EPDM
- Coating Epoxy RAL 5015 [thickness 250 μ]
- Maximum working pressure 16 bar or 25 bar
- Operating temperature range -15˚C – 120˚C.
- Actuator:
- Electric quarter turn suitable for modulation [Class C EN 15714 2]
- Selected for Open/Closed duty
- 230 VAC, 24 V VAC & 24 VDC options
- Ambient temperature conditions -20˚C – 80˚C
- Well proven, very robust and maintenance free
- Enclosure IP 67
- Visual position indication
- Manual de-clutchable override handle
- Fitted with end position limit switches as standard
- Compact design
- Self-locking
- Optional: position transmitter Space heater.
General information
Color | Blue |
Material | Iron Stainless steel Rubber |
Warranty description | 18 months |
Uniclass | |
CAWS | S92/435 Control valve sets S90/650 Flow reducing/ servicing valves S90/650 Flow-reducing/ servicing valves |
Product range |
Specification data - Butterfly valves
PN rating | PN16. |
Materials | |
Body | Spheroidal Graphite Ductile Iron. |
Shaft | AISI 431 Stainless Steel. |
Disc | AISI 431 Stainless Steel. |
Seat | Bonded Vulcanized EPDM. |
Operation | |
Manual | Gear. |
Automatic | Electric. |
Options | Position Signal Switches.Position Signal Switches - Gold.Additional Torque Switches.Additional Torque Switches - Gold.Positioner.Position Transmitter.Heating Resistor.Potentiometer.Reversing Starter Contactor.Corrosion Protection (including Heating Resistor).Enclosure IP67 (includes Heating Resistor and Corrosion Protection). |
Actuator | Manufacturer guidanceThere are multiple actuator options for each size and pressure rating - please see data sheets. |
