Plywood System
Application

Mostly used for interior applications where there is an existing substructure.

Description

A plywood build-up system primarily used for interior applications where there is an existing substructure.

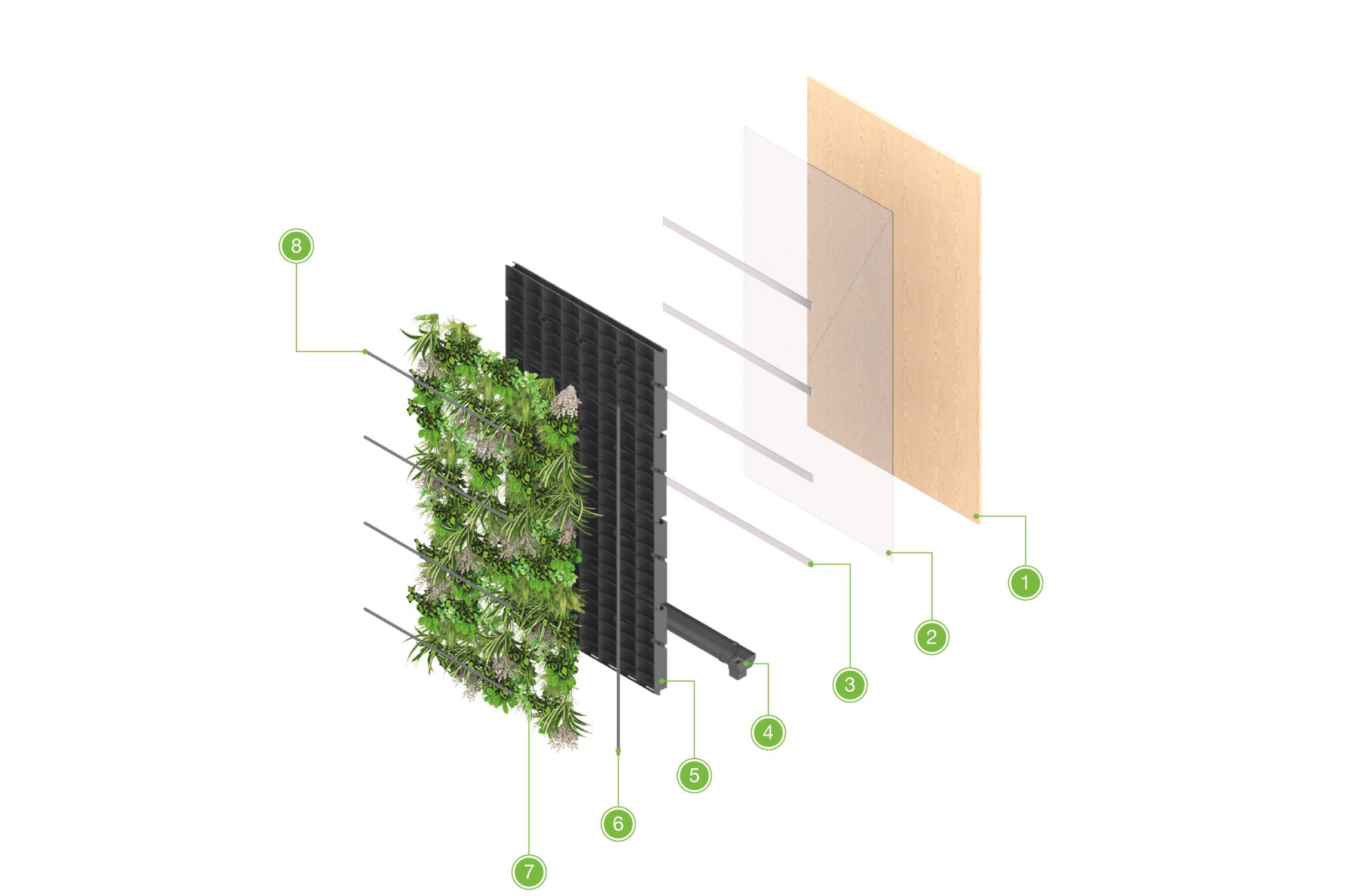

Order of build-up:

  • Indicative brick or concrete surface.
  • Waterproof membrane.
  • 48 x 12 mm ANS fixing rail.
  • Osma squareline gutter or client specified.
  • ANS living wall module 500 x 250 x 100 mm.
  • 16 mm vertical irrigation pipe.
  • Planting.
  • 16 mm inline emitter pressure regulated irrigation pipe.

Application:

Mostly used for interior applications where there is an existing substructure.

General information

Color

Black

Features

Aesthetic, improved air quality, increased biodiversity, branding opportunity, positive effect on staff morale, increased sound insulation, outdoor structural protection, temperature regulation

UV Resistant

Finish

Planted surface

Smooth

Material

PVC

PVC-U

Shape

Linear

Size

107 x 51 mm

WarrantyDescription

10 year manufacturer guarantee

Uniclass 2015

Ss_45_40_95_54 Modular unit vertical planting systemsPrimary

CAWS

Q31/292 Prefabricated plant containers

Specification data - Modular unit vertical planting systems

Product Reference

ANS Living Wall Plywood System

Standard product features

Colour:

Black.

Features:

Aesthetic, improved air quality, increased biodiversity, branding opportunity, positive effect on staff morale, increased sound insulation, outdoor structural protection, temperature regulation, UV resistant.

Finish:

Planted surface, smooth.

Material:

Unplasticized polyvinyl chloride (PVC-U).

Shape:

Linear modules.

Size:

107 x 51 mm modules.

Warranty description:

10-year guarantee on the living wall module, 12 months guarantee for everything else.

Recycled content:

Living wall module contains 100% recycled plastic.

Recyclability:

Living wall module is recyclable, can reuse soil and plants where appropriate.

Country of origin:

UK.

Environmental information

Recyclability

Living wall module is recyclable, can reuse soil and plants where appropriate

Recycled content

Living wall module contains 100% recycled plastic

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
