PLXE
Application

The PLXE range is suitable for domestic use (bedroom, bathroom (splash-proof), lounge, dining room, hallway and landing, utility room, study, conservatory etc). With its natural white colour, gentle curvature and louvered grille (PLXC300E has a slotted grille), the heater will fit naturally into any room.

Two year warranty.

Description

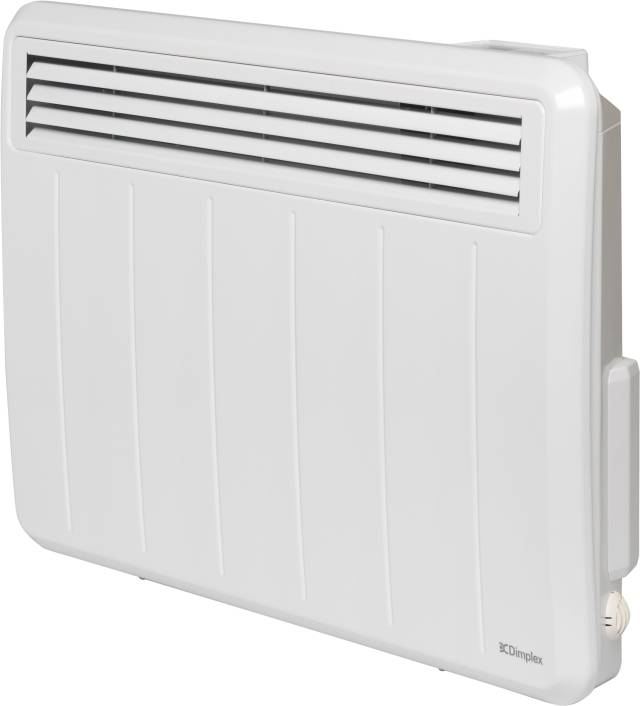

The PLXE range is a Lot 20 compliant, modern and efficient electric panel heater. Offering intuitive controls with multiple timers, natural white colour and louvered grille, this heater will fit naturally into any room.

This panel heater features the CapSense controller, providing a more intuitive user experience with its backlit LCD display and touch-sensitive buttons.

Adaptive Start pre-heats the room ahead of a programmed heating schedule for only exactly the amount of time required to meet the desired target temperature at the desired time.

Open Window detection monitors the room temperature while the heater attempts to achieve a desired room temperature. If the room temperature does not change or decreases while heat is being emitted, the product will stop heating and enter a standby mode in order to not waste energy.

Features and benefits:

  • Programmable room temperatures and heating time periods.
  • Multiple seven-day timer profiles.
  • Electronic thermostat accurate to within 0.2°C.
  • Energy-saving technologies such as Adaptive Start and Open Window Detection.
  • Complies with Lot 20 of ERP Directive.
  • CE marked and BEAB approved.

Applications:

The PLXE range is suitable for domestic use (bedroom, bathroom (splash-proof), lounge, dining room, hallway and landing, utility room, study, conservatory etc). With its natural white colour, gentle curvature and louvered grille (PLXC300E has a slotted grille), the heater will fit naturally into any room.

Two year warranty.

General information

Uniclass 2015

Pr_70_60_36_74 Room heatersPrimary

CAWS

V90/590 Equipment

Specification data - Room heaters

Product Reference

PLXE

Type:

PLX050E

0.5 kW heat output. Size (w x h x d): 450 x 430 x 108 mm. Weight 4.6 kg.

PLX075E

0.75 kW heat output. Size (w x h x d): 620 x 430 x 108 mm. Weight 5.9 kg.

PLX100E

1 kW heat output. Size (w x h x d): 620 x 430 x 108 mm. Weight 5.9 kg.

PLX125E

1.25 kW heat output. Size (w x h x d): 690 x 430 x 108 mm. Weight 6.1 kg.

PLX150E

1.5 kW heat output. Size (w x h x d): 690 x 430 x 108 mm. Weight 6.1 kg.

PLX200E

2 kW heat output. Size (w x h x d): 860 x 430 x 108 mm. Weight 7.8 kg.

PLXC300E

3 kW heat output. Size (w x h x d): 860 x 430 x 143 mm. Weight 8.7 kg.

Standard product features

Colour/ Finish:

Traffic white (RAL 9016).

Technical characteristics:

  • Construction: Durable epoxy-polyester powder coated steel casing.
  • Controls: Digitally controlled, electronic timer modes: Seven day programmable user timer, out all day, home all day, holiday continuous heat modes. Timer: Eco, manual, frost, protect, runback, off.
  • Heat output: 0.5 kW.
  • Heat source: Electric.
  • Installation: H-frame wall bracket for easy fixing.
  • Ingress protection (IP) rating: IP24.
  • Thermostat type: Electronic thermostat (±0.2°C) overheat detection.
  • Cable exit point: Bottom right.
  • Cable length: 1.3 m.
  • Connection: Three-core cable (live, neutral, earth).
  • Digital timer: Yes.
  • Voltage: ~230/ 240 V.
  • Element type: Compact, finned, mineral filled sheathed element.
  • Safety cut out: Auto re-set cut-out.
