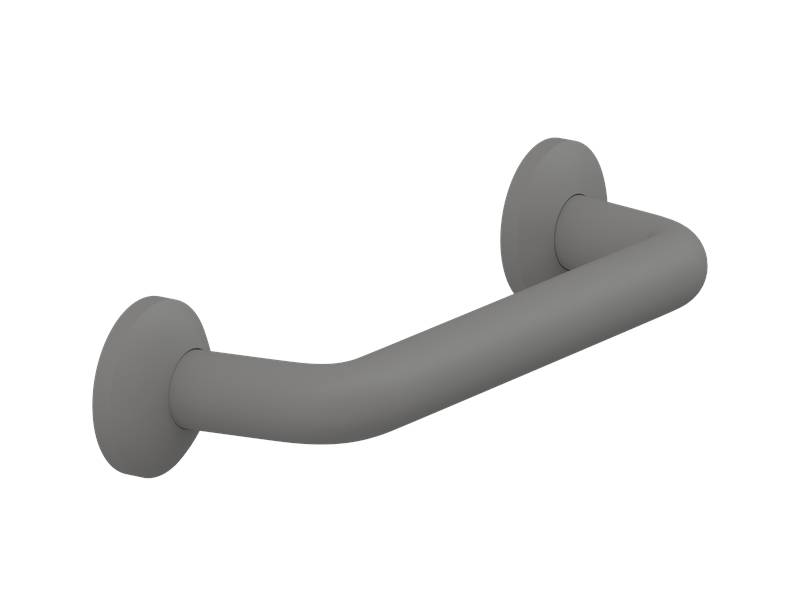

PLUS handrail for bathroom - various lengths
Verified by manufacturer 27 days ago
RT100
RT100
UK Conformity Assessed (UKCA)
Certificate type
Support handrail. Various length and combinations available
Application
A support for walking and standing users in the bathroom or for assisting seated users who need help getting up.
For the shower area
The shower area should incorporate stable handrails in order to maintain maximal safety at all times. This makes work easier for staff, prevents falls, and contributes to the patient’s rehabilitation and increased sense of dignity.
Description
Pressalit handrails are available in a range of configurations, designed to provide stable support in any situation. The 33 mm diameter and 50 mm clear projection from the wall make the rails easy to take hold of. Constructed of aluminium with a polyester lacquer, the rails will not rust and are not cold to the touch.
Features and benefits:
- Warm slip resistant surface.
- Covered fixing rose - screws hidden.
- Grab rail.
Product capacity:
- Maximum load: 235 kg.
- When the handrail is loaded with 235 kg, each wall fastener is loaded with 56 kg.
- Handrails are tested with a 1.5 safety factor in accordance with the requirements in ISO 17966:2016.
Options:
RT100 300mm
RT101 450mm
RT102 600mm
RT103 800mm
RT104 1000mm
General information
Color | White Blue Red Grey |
Finish | Lacquered |
Material | Aluminium Polyester |
Shape | Circle |
Length | Bespoke Manufacturer guidanceVarious lengths available RT100 300mm RT101 450mm RT102 600mm RT103 800mm RT104 1000mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/436 Handrails and grab bars |
Specification data - Support rails
Form | Wall mounted. |
Diameter | 33 mm. |
Materials | |
Body | Aluminium. |
Finish and colour | Polyester lacquer. |
Integral accessories | Includes wall rosette to cover fixings. |
Colour | 000 White. 035 Red. 108 Dark Blue. 112 Anthracite. |
Cover cap | Cycoloy plastic. |
Length | 300 mm. |
Corner handrail | Not required. RT124. Guidance for specification option: 762 x 475 mm corner (horizontal) handrail. RT126. Guidance for specification option: 762 x 762 mm corner (horizontal) handrail. RT128. Guidance for specification option: 762 x 1200 mm corner (horizontal) handrail. RT136. Guidance for specification option: 762 x 762 mm corner (horizontal) handrail, with 1090 mm connecting vertical rail. |
Rail section | Not required. RT300. Guidance for specification option: 300 mm tube component with male and female connecting joints. RT303. Guidance for specification option: 1200 mm tube component with male and female connecting joints. RT307. Guidance for specification option: 2400 mm tube component with male and female connecting joints. |
Rail section with corner strap | Not required. RT330. Guidance for specification option: 365 mm tube component with one wall rosette and 90° connection to horizontal or vertical rail. RT331. Guidance for specification option: 652 mm tube component with one wall rosette and 90° connection to horizontal or vertical rail. RT332. Guidance for specification option: 790 mm tube component with one wall rosette and 90° connection to horizontal or vertical rail. RT333. Guidance for specification option: 1090 mm tube component with one wall rosette and 90° connection to horizontal or vertical rail. |
Angled rail component with horizontal angle | Not required. RT345. Guidance for specification option: Corner angle component (horizontal), 762 x 154 mm, internal 90° angle with one wall rosette and male connecting joint, reversible - right/left. |
Rail component including wall rosette | Not required. RT320. Guidance for specification option: 321 mm tube component with one wall rosette with female connecting joint. RT321. Guidance for specification option: 608 mm tube component with one wall rosette with female connecting joint. RT322. Guidance for specification option: 746 mm tube component with one wall rosette with female connecting joint. RT323. Guidance for specification option: 1046 mm tube component with one wall rosette with female connecting joint. |
Angled rail component with vertical angle including wall rosette | Not required. RT340. Guidance for specification option: Corner angle component right (horizontal), 400 x 154 mm, internal 90° angle with one wall rosette and male connecting joint. RT341. Guidance for specification option: Corner angle component left (horizontal), 400 x 154 mm, internal 90° angle with one wall rosette and male connecting joint. |
Fittings | Not required. RT350. Guidance for specification option: 90° angle component, 154 x 154 mm, including male and female connecting joints. RT360. Guidance for specification option: Wall rosette mounting component with strap for connection to rail. RT361 Guidance for specification option: Wall rosette mounting component with strap and rail connector with male and female connecting joints. RT362. Guidance for specification option: Rail to rail component connector (horizontal/ vertical). |
Projection | 50 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Denmark |
Country of product manufacture | Denmark |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2016 | 3 |
Third party certifications

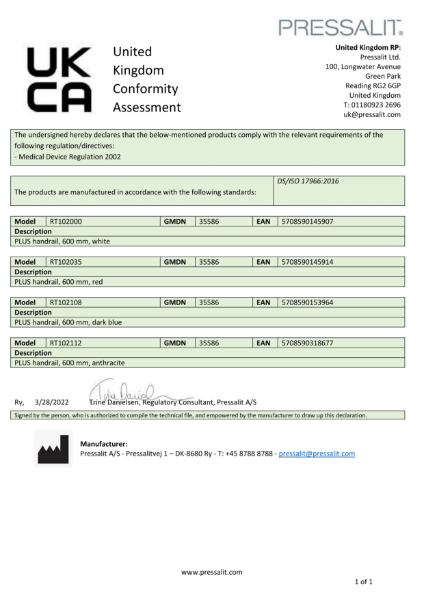

UK Conformity Assessed (UKCA)
UKCART102
Literature
Accessibility Solutions for Bathrooms
Case studies
Addington School 6th form block in Woodley
