Pleated Blind - Rooflight - Silent Gliss SG 8500
Verified by manufacturer 4 months ago
Model DB - Normal opening
Model DB - Normal opening

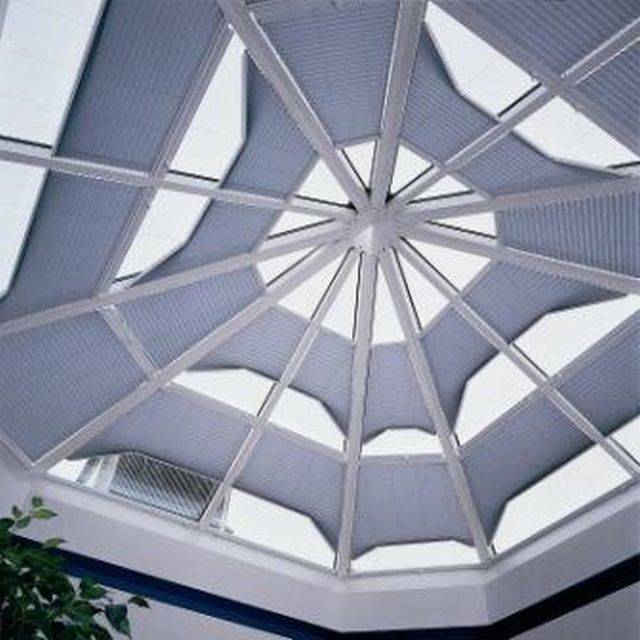

Pleated blind for vertical operation or with tension wire, up to 15° incline.
Application
Pleated blind systems designed for vertical, horizontal and sloping applications.
Description
A range of pleated blind systems designed for vertical, horizontal and sloping applications.
Features and benefits:
- A range of shapes and stacking arrangements is available for all uses including conservatories and rooflights.
- Small stacking dimensions allows fitting in restrictive areas and can be fitted inside frame giving better heat reflection.
- The blinds are made to measure and supplied ready assembled.
- A wide range of blind systems is available within this model.
Inclined Operation, Parallel Sides:
Designed for "Velux type" window applications; small to medium windows; Tension wires/ side-guided profile at sides only (no wires in window space). All with pull grips.
- Normal opening.
- Top or bottom opening.
- Centre opening.
- "Day and Night"; two different fabrics.
General information
Specification data - Pleated blinds
Blinds | - |
Material | A wide range of Silent Gliss® fabrics is available.Including blackout and aluminium backing for heat reflection. All are washable and antistatic; consult manufacturer for details. |
OperationContact manufacturer for details. | Electric inclined.Electric horizontal.Electric vertical.Manual. |
Execution | Installing blinds. |
Headrail/ Brackets finish/ colour | White powder coated. As standard. Brown powder coated. Silver anodized. |
TypeInclined Operation, Parallel Sides. | Normal opening. |
Size | Small to medium. Designed for "Velux type" window applications; small to medium windows. |
Angle of inclination | 60°. |
WidthDetermined by the fabric chosen. | 1500 mm. |
Drop length | 2200 mm. |
PrimarySurfaceArea | 2.25 m². |
Dimensions | As drawing. As schedule. |
Literature
Pleated Blinds Technical Catalogue by Silent Gliss
