Plaza

Name: Plaza
Brand: Knauf UK
SKU: dfWKmBNqFgqDfW96hSPmC2

Verified by manufacturer 8 months ago

Knauf UK

Third party certifications:

EPD
Certificate type

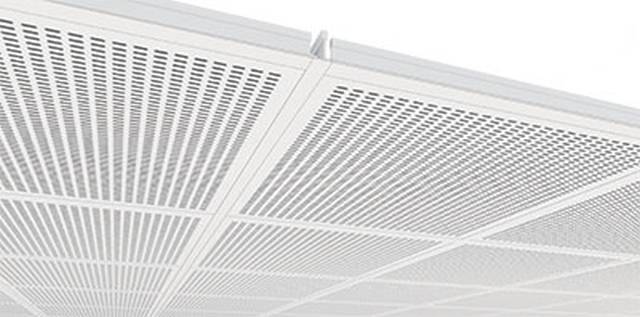

Edge A gypsum acoustic ceiling tile in an exposed grid ceiling system.

Jump to:

0800 521 050 Website

Application

Recommended use in various construction projects, such as within the education sector due to the acoustic performance, up to 0.90 NRC, and the increased air quality certified according to the Danish Indoor Climate Labelling.

Description

Demountable gypsum acoustic ceiling tile in an exposed grid ceiling system.

Features and benefits:

An acoustic gypsum ceiling tile designed with a straight edge for installation in an exposed T-grid system, ensuring a highly robust, clean cut looking, suspended ceiling.
Fast and easy to mount and adapt, as all edges remain hidden above the grid system.
No issue of tile re-alignment.
Perforations options available: Globe (GI), Micro (M1), Quadril (Q1), Tangent (T1), Plain (P), Unity 3, Unity 4 and Unity 8/15/20.
Demountable for access to services.
Class C sound absorption (Class B with Tangent and Unity 3 perforations)
Aesthetic options of border around the perforations (standard range) or perforations right up to edge (unity range).

General information

Color	White
Finish	Painted
Material	Gypsum Guidance for specification option: Glass fibre reinforced.
Length	600 mm
Width	600 mm
Height	9.5 mm 12.5 mm

Uniclass	Ss_30_25_22_51 Modular suspended ceiling systemsPrimary
CAWS	K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system K40/135 Board-suspended ceiling system K40/265 Infill units

Product range	Danoline

Specification data - Modular suspended ceiling systems

System performance	Acoustic performance.
Ceiling support	Demountable suspended ceiling grids.
Support fasteners	As schedule. As drawing. Guidance for specification option: Insert drawing reference number. Guidance for specification option: For sizes up to 625 x 625 not in Tangent perforation, units of up to 3 k.g. can be installed directly into the panel without reinforcement. For larger module sizes and all sizes with Tangent perforation a reinforcement panel of sufficient strength can be installed behind the tile. The reinforcement panel must extend all the way into the main runners, so that the weight is transferred to them. The total weight should not be greater than 3 k.g. for each m² of ceiling. Where loads are greater than 3 k.g./m², additional hangers must be used. Units over 3 k.g., should be installed independently, so that they do not place any load on the ceiling. Insert additional requirements; contact manufacturer for more information.
Ceiling units	Glass fibre reinforced gypsum tiles.
Samples required	Not required. Required. Guidance for specification option: Insert requirements; contact manufacturer for more information.

Grid	15 mm lay-in. 24 mm lay-in.
Hangers	Standard suspension wire. Adjustable hanger.
Finishing	Pre painted white.
Fire safety	A2-s1, d0.
Light reflectance	69.2-82.6%. Guidance for specification option: Depending on perforation design in accordance with DIN 5036.
Weight	7.8-8.7 k.g./m² (for 9.5 mm) / 9-9.9 k.g./m² (for 12.5 mm).
Surface pattern	Plain (P). Micro (M1) - (square 3 x 3 mm). Globe (GI) - (circles Ø 6 mm). Quadril (Q1) - (square 12 x 12 mm). Tangent (T1) - (obround 4 x 14 mm). Unity 3 - (square 3.5 x 3.5 mm). Unity 4 - (circles Ø 4 mm). Unity 8/15/20 - (various circles Ø 8/15/20 mm). Show more
Edge profile	A. A+.
Grid system	Exposed T-grid with cross tees and hangers.
Fixing into substrates	As per site requirements. Guidance for specification option: Fixings are used to meet performance constraint confirmation is required from supplier to meets ceiling specification and any additional loading. Insert requirements; contact manufacturer for more information.
Construction	As schedule. As drawing. Guidance for specification option: Insert drawing reference number. Guidance for specification option: Suspension hangers: Knauf 25 x 25 mm angle section at 1200 mm centres, (first angle maximum 400 mm from wall). Primary support channel: Knauf 38 mm deep 15 T-grid primary runner at 1200 mm centres (first runner maximum 600 mm from wall). Cross tees: Knauf 38 mm deep 15 T-grid cross tees at 600 mm centres (cross ties available in 1200 mm and 600 mm lengths). Perimeter channel: Use Knauf 20 X 24 mm wall angle or Knauf MS15 shadow line trim (creating 15 mm shadow gap) fixed at 300 mm centres. Insert additional requirements; contact manufacturer for more information.
Tile size	600 x 600 x 9.5 mm. 600 x 600 x 12.5 mm.

Sustainability data

Country of material origin	Denmark
Country of product manufacture	Denmark
Material	Gypsum Guidance for specification option: Glass fibre reinforced.
Recyclability	- Manufacturer guidance Recyclable.

Third party certifications

Knauf Plaza Perforated EPD

Third party certifications

EPD

Knauf Plaza Perforated EPD
