Description

An exceptionally strong steel paling fence featuring Jacksons unique vandal-proof connectors. Pales pass through the bottom rail and into the top rail and are welded at 129 mm centres making it virtually impossible to remove individual palings.

The horizontal rails are sleeved into the upright posts with our unique fixing system to form a rigid structure with no visible fixings. Manufactured from hot dip galvanized steel. Covered by twenty five year service life guarantee.

Features:

  • Inherently safe.
  • Vandal-proof connectors.
  • Galvanized to BS EN 1461 as standard or galvanized and powder coated to BS EN 13438 in any BS or RAL colour at extra cost.
  • RoSPA approved.
  • Conforms to BS EN 1176 play fence standards.
  • Twenty five year service life guarantee.

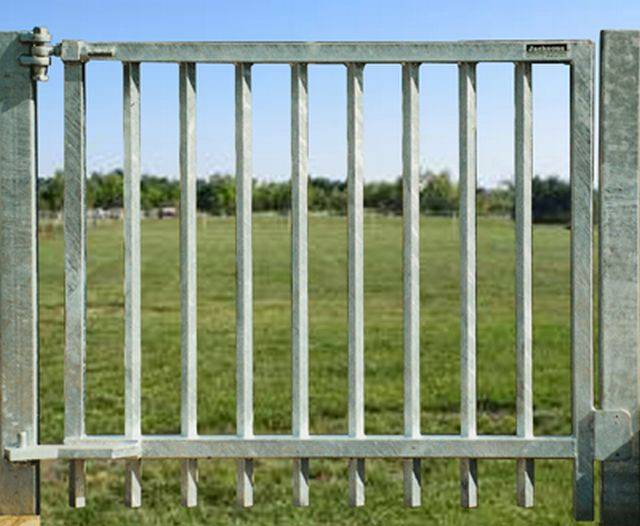

Playtime self-closing gates:

Designed to complement Playtime steel fencing. Gates conform to all current play area safety guidelines.

The in-ground operator with adjustable closing rate and soft close feature ensures that the gate returns to the closed position after use preserving the integrity of the perimeter and prevents slamming and trapped fingers.

General information
Features

Inherently safe

Vandal-proof connectors

Galvanized to BS EN 1461 as standard or galvanized and powder coated to BS EN 13438 in any BS or RAL colour at extra cost

RoSPA approved

Conforms to BS EN 1176 play fence standards

Twenty five year service life guarantee

Uniclass 2015
Steel vertical bar fencing systems (Ss_25_14_63_86)Primary
Specification data - Steel vertical bar fencing systems
Product Reference

Playtime Steel Fencing

Posts

60 x 60 mm

Galvanized as standard with overlength posts to be set in concrete. Posts can be baseplated on request.

Gates -
Type

Double gates, 1000 mm high

Single gates, 1000 mm high

Operation

Self closing

Sliding

Swing

Finish/ Colour

Manufacturer's standard

Galvanized and polyester powder coated.

Panel frame and posts

Green RAL 6005

Pales

Blue RAL 5010

Red RAL 3020

Yellow RAL 1018

Standard product features

General:

  • Height: 1100 mm above ground.
  • Post centres: 3000 mm.
  • Rails: 60 x 40 mm hollow section.
  • Pales: 25 x 25 mm hollow section.
  • Panel width: 2940 mm.
  • Intermediate posts: 60 x 60 mm.

Gates, self closing with fully adjustable in floor hinge:

  • Height: 1100 mm.
  • Gate posts: 80 x 80 mm.
  • Swing or sliding gates available in single or double leaf.

Product Options

Finish/ Colour:

Other RAL colours and colour configurations available at extra cost.

Third party certifications
  • ROSPA Approved
