This product is no longer available

Description

Features:

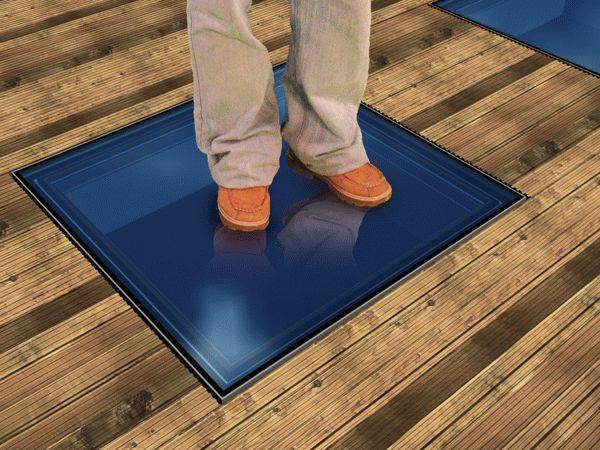

  • Designed for safe pedestrian use of flat roof areas.
  • Sits flush with the roofing material or decking surface.
  • Available in a range of sizes, colours and glazing options.
  • Steel construction, polyester powder coated.

General information
Features

Designed for safe pedestrian use of flat roof areas

Sits flush with the roofing material or decking surface

Available in a range of sizes, colours and glazing options

Steel construction, polyester powder coated

Uniclass 2015
Framed rooflights (Pr_30_59_72_31)Primary
Specification data - Framed rooflights
Product Reference

Plateau Rooflight Walk On

Standard product features

Glazing details:

  • Conforms to Category A of BS 6399 with maximum uniformly distributed load of 1.5kN/m2 and maximum concentrated load of 1.4kN.

Warranty:

  • Up to12 years for protective coating, depending on location and mandatory maintenance regime.
  • Up to 5 years on the glass
  • Up to 1 year on the ancillary items

Product Options

Optional Glazing details:

Conforms to Category C of BS 6399 with maximum uniformly distributed load of 5.0kN/m2 and maximum concentrated load of 3.6kN.

Third party certifications
  • BS EN1279-2
  • KM 93754
Similar products from The Rooflight Company
