Plastic Access Panels

Timloc Building Products

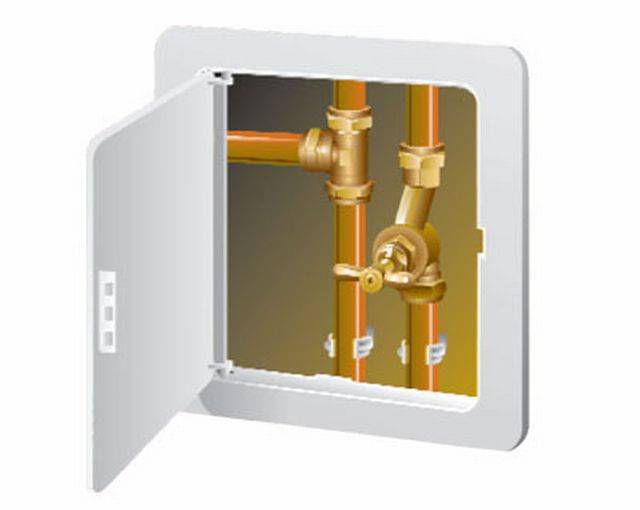

Plastic access panels provide simple, easy access through dry lined walls, ceilings, ducts and units to gain access to concealed plumbing, switches, valves, stopcocks, fuse boxes, controls and connections.

Jump to:
+44 (0)1405 765567 www.timloc.co.uk
Application

  • Dry lined walls.
  • Ceilings (excluding AP450).
  • Ducts.
  • Units.

Description

Features:

  • Cost effective yet reliable and simple method for providing access to services and connections.
  • Ideal solution for meeting the gas safety industry’s concealed boiler flue inspection access requirements (non-fire rated applications).
  • Flush fitting door panels that can be fully removed for maximum access.
  • Installed in minutes using basic hand tools and silicon/flexible sealant.
  • Visible picture frame surround smartly conceals cut out edges and contributes to a faster installation.
  • AP110 and AP200 panels are clip fit door panels.
  • AP150, AP300 and AP450 are hinged door panels.
  • Key lock options available.

Applications:

  • Dry lined walls.
  • Ceilings (excluding AP450).
  • Ducts.
  • Units.

General information
Features

Cost effective yet reliable and simple method for providing access to services and connections

Ideal solution for meeting the gas safety industry’s concealed boiler flue inspection access requirements (non-fire rated applications)

Flush fitting door panels that can be fully removed for maximum access

Installed in minutes using basic hand tools and silicon/flexible sealant

Visible picture frame surround smartly conceals cut out edges and contributes to a faster installation

AP110 and AP200 panels are clip fit door panels

AP150, AP300 and AP450 are hinged door panels

Key lock options available

Uniclass 2015
Access panels (Pr_30_59_36_01)Primary
Specification data - Access panels
Product Reference

AP110

Overall dimensions: 135 x 185 mm.

AP150

Overall dimensions: 195 x 275 mm.

AP200

Overall dimensions: 245 x 245 mm.

AP300

Overall dimensions: 345 x 345 mm.

AP450

Overall dimensions: 510 x 510 mm.

AP150keylock

Overall dimensions: 195 x 275 mm.

AP300keylock

Overall dimensions: 345 x 345 mm.

AP450keylock

Overall dimensions: 510 x 510 mm.

Product Options

Technical details:

  • Fire rating: None.
  • Acoustic performance: 26 dB.
  • Airtight: No.
  • Insulated and draft stripped: No.
  • Locking facility: Catch clip across the range. Key lock in selected sizes.
  • Material: Injection moulded ABS plastic - tough and UV stabilized.
  • Closing mechanism: Catch clip or keylock.
  • Colour: White.
  • Surface finish: Textured.

Frame detail:

  • Visible width: 25 mm (15 mm on AP110 only).
  • Depth: 12 mm (low profile).
