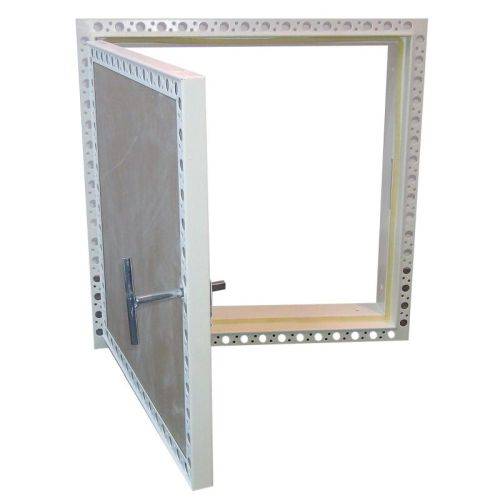

Access panel with a concealed, beaded frame manufactured in Zintec steel, and door manufactured from Zintec steel with plasterboard infill.
For application into ceilings for loft access, or walls for access to services.
Please note that the actual size of structural opening in the wall/ ceiling needs to be 5 mm larger than the overall panel size.
This panel is non fire rated.
Access panel with a concealed, beaded frame manufactured in Zintec steel, and door manufactured from Zintec steel with plasterboard infill.
Features and benefits:
Applications:
For application into ceilings for loft access, or walls for access to services.
Please note that the actual size of structural opening in the wall/ ceiling needs to be 5 mm larger than the overall panel size.
This panel is non fire rated.
Size | 300 x 300 mm Structural opening size: 305 x 305 mm. Clear opening size: 276 x 276 mm. 450 x 450 mm Structural opening size: 455 x 455 mm. Clear opening size: 426 x 426 mm. 550 x 550 mm Structural opening size: 555 x 555 mm. Clear opening size: 526 x 526 mm. 600 x 600 mm Structural opening size: 605 x 605 mm. Clear opening size: 576 x 576 mm. 900 x 600 mm Structural opening size: 905 x 605 mm. Clear opening size: 876 x 576 mm. 1200 x 600 mm Structural opening size: 1205 x 605 mm. Clear opening size: 1176 x 576 mm. |
Finish | RAL 9010, 20% gloss |
Material | Frame: 1.2 mm Zintec steel Door: Zintec steel, with plasterboard infill Door tray: 1 mm Zintec steel |
Uniclass 2015 | |
CAWS | K10/430 Access panels K40/280 Access units |
Product Reference | Plasterboard Door Access Panels with Beaded Frame |
Size | 300 x 300 mmStructural opening size: 305 x 305 mm. Clear opening size: 276 x 276 mm. 450 x 450 mmStructural opening size: 455 x 455 mm. Clear opening size: 426 x 426 mm. 550 x 550 mmStructural opening size: 555 x 555 mm. Clear opening size: 526 x 526 mm. 600 x 600 mmStructural opening size: 605 x 605 mm. Clear opening size: 576 x 576 mm. 900 x 600 mmStructural opening size: 905 x 605 mm. Clear opening size: 876 x 576 mm. 1200 x 600 mmStructural opening size: 1205 x 605 mm. Clear opening size: 1176 x 576 mm. |
Finish | RAL 9010, 20% gloss |
Locking | Budget lock |
Standard product features | Material:
Frame: 25 mm. |
Product Options | Finish: Other colours are available on request, consult manufacturer for details. Locking: Other lock options are available on request, consult manufacturer for details. |
