Plas-Pro Decking Subframe - Subframe for External Decking
Verified by manufacturer 5 months ago
Plas-Pro 50 x 50 mm joists with DuoLift system
Plas-Pro 50 x 50 mm joists with DuoLift system
Subframe for external decking. A durable, hardwearing and practical solution for spaces exposed to damp.
Application
Suitable as a alternative to timber for constructing supporting structures for decks, seating, planters and more.
Description
An alternative to timber for constructing supporting structures for decks, seating, planters and more; Plas-Pro is incorporated within the DuoSpan aluminium subframe system but it can also be used on its own in low-height areas, such as roof terraces, and in waterside areas where use of metal is not advisable.
Constructed from recycled plastic, Plas-Pro is strong, versatile and easy to work with. Available in a range of sizes to act as posts, joists and bearers, it can be cut and drilled just like wood, yet never rots even when placed in water. The flexibility of Plas-Pro means that it can also be used to create distinctive and special outdoor constructions, incorporating curves and twists that would be impossible with conventional materials.
Plas-Pro complements the DuoLift Joist support system along with the Millboard outdoor flooring range, enabling a complete, full turn-key, non-rot outdoor flooring solution.
Features and benefits:
- 100% recycled and recyclable at end-of-use.
- Non-porous.
- Superior to timber subframe - will not rot in wet conditions, no knots or splintering.
- Suitable for use with all Millboard decking products.
- Can be submerged in water.
- Will not rot like wood, made out of 100% recycled plastic, can be submerged in water.
Components:
- Post: 100 x 100 x 3000 mm.
- Joist: 125 x 50 x 3000 mm.
- Joist (batten): 50 x 50 x 2400 mm.
- Joist (batten): 30 x 60 x 2800 mm.
General information
Color | Black Grey |
Finish | Smooth |
Material | Recycled plastic |
Shape | Rectangle Square |
Length | 2400 mm 2800 mm 3000 mm |
Width | 50 mm 100 mm 60 mm |
Height | 50 mm 100 mm 125 mm 30 mm |
Warranty description | 20 year Guidance for specification option: 20 Year Manufacturers Warranty |
Uniclass | |
CAWS | Q55/110 Deck Q55/120 Boardwalk |
Specification data - Boardwalk systems
Ground preparation | Guidance for specification option: Insert requirements. |
Barrier membrane | Guidance for specification option: Insert requirements or omit. |
Structure | |
Primary structure | DuoLift system.Guidance for specification option: Consult manufacturer's literature and insert requirements and/or drawing reference. Multiple types may be required depending on substrate height variation.
Supports along joist every 600 mm centres for residential applications and 400 mm centres for commercial applications. |
Subframe | Plas-Pro joist, 50 x 50 mm.Guidance for specification option: Spacing (maximum):
Joists supported by the DuoLift Joist Pedestals over a solid/ stable base. 2400 mm long as standard. |
Deck boards | |
Material | Guidance for specification option: To be specified separately. Insert details as required. |
Fasteners | Guidance for specification option: To be specified separately. Insert details as required. |
Board accessories | Guidance for specification option: To be specified separately. Insert details as required, or omit. |
Guarding | Required.Guidance for specification option: Insert details. Not required. |
Edge protection | Required.Guidance for specification option: Insert details. Not required. |
System accessories | DuoLift acoustic separation pad, 3 mm.Guidance for specification option: Agglomerated cork and recycled rubber pads offer a layer of protection between joist supports and membranes, as well as providing an acoustic benefit. None. |
Design | As drawing. As schedule. Manufacturer guidanceContact manufacturer for details as required. |
Integral accessories | DuraFix Hexhead screws to connect joists. |
Sustainability data
Material | Recycled plastic |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 3 |
 IFC | - | 2 |
Literature

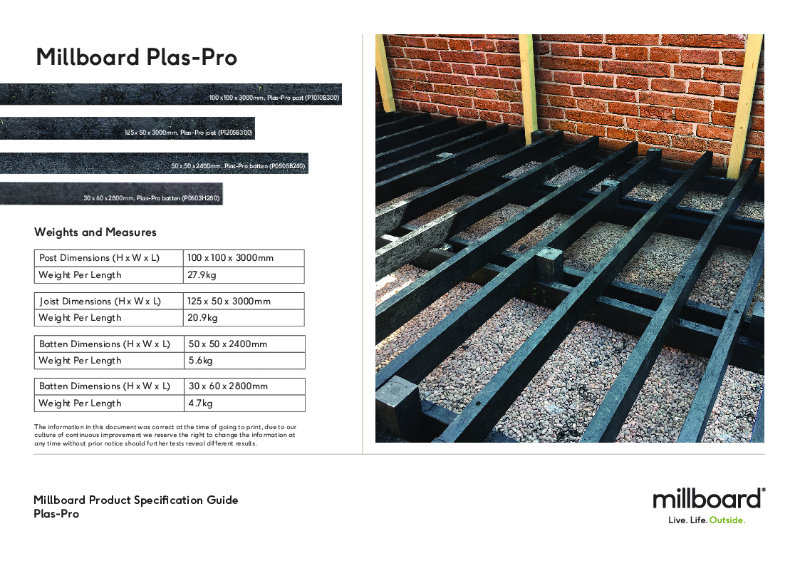

Plas-Pro Technical specification sheet
Millboard Collection Brochure 2024
