Plantroom
Verified by manufacturer 15 hours ago
Plantroom for Series 1, 2, 3 Platforms, Flatscreen, Standard screen, Louvre100 and Peaceflow300.
Application

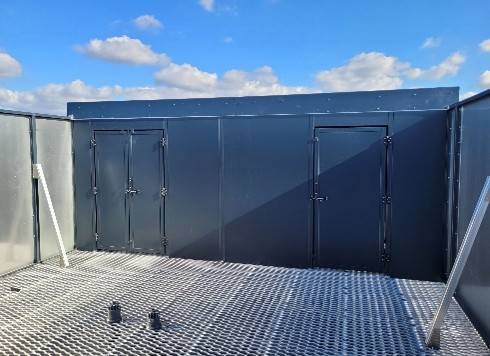

To completely enclose plant and equipment from view on series 1, 2, 3 Platforms with Flatscreen, Standard screen, Louvre100 and Peaceflow300 walls and a Flatscreen roof.
Description
Plantroom for Series 1, 2, 3 Platforms, Flatscreen, Standardscreen, Louvre100 and Peaceflow300.
Features and benefits:
- Clean straight lines for a tidy look.
General information
Color | Grey Other |
Finish | Mill Guidance for specification option: Frame. Powder-coated Guidance for specification option: Wall and roof sections. |
Material | Aluminium Guidance for specification option: Extruded aluminium structure. Stainless steel Guidance for specification option: Fixings. |
Shape | Square Rectangle Other Manufacturer guidanceGenerally square or rectangular, but other shapes and step-ins can be accommodated. |
Length | Bespoke Guidance for specification option: Any 600 mm increment length around the perimeter. |
Height | Bespoke Guidance for specification option: Height in 400 mm increments. |
Warranty description | 20 year |
Uniclass | Ss_30_12_64_65 Plant enclosure and platform systems Primary |
CAWS | L35/360 Working platforms |
Specification data - Plant enclosure and platform systems
System manufacturer | Configured Platforms. |
System reference | Plantroom. |
Size (l x w x d) | Manufacturer guidanceAny size in 600 mm increments in length around the perimeter and 400 mm increments in height. Insert requirements or refer to a drawing. |
Platform | Series 1/ 2/ 3 Platform (specified separately). |
Frame | Extruded aluminium. |
Walls | Standard Screen system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or a double door. Height options in 400 mm increment sizes above the walking surface. SoundShield system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or a double door. Height options in 400 mm increment sizes above the walking surface - Rw 28. PeaceMaker system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or double door. Height options in 400 mm increment sizes above the walking surface - NRC 1. Acoustic+ system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or double door. Height options in 400 mm increment sizes above the walking surface - Rw 33. Flatscreen system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or double door. Height options in 400 mm increments - Rw 31. |
Doors | Not required. Self-closing door. Double doors. |
Roof | Flatscreen. |
Finish/ Colour | Mill finish frame, powder-coated wall and roof sections. Guidance for specification option: Powder-coated to suit project requirement - available in any RAL colour. Insert requirements. |
Construction | Stainless steel bolted and screwed construction. |
Sustainability data
Material | Aluminium Guidance for specification option: Extruded aluminium structure. Stainless steel Guidance for specification option: Fixings. |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | 10 kg CO₂ eq/kg |
Declared unit | 10 kg CO₂ eq/kg Self-declared |
Recyclability | 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % Guidance for specification option: Aluminium up to 95%. |
