Planting Area Drains
Description

Top gratings and standpipes, providing drainage of moisture in planting areas and flower boxes, minimising loss of soil.

General information
Uniclass 2015
Pr_65_50_35_37 Gravity rainwater outletsPrimary
CAWS

R10/26 Rainwater outlets

R10/365 Proprietary rainwater outlets

Specification data - Gravity rainwater outlets
Product Reference

Planting Area Drains

Type

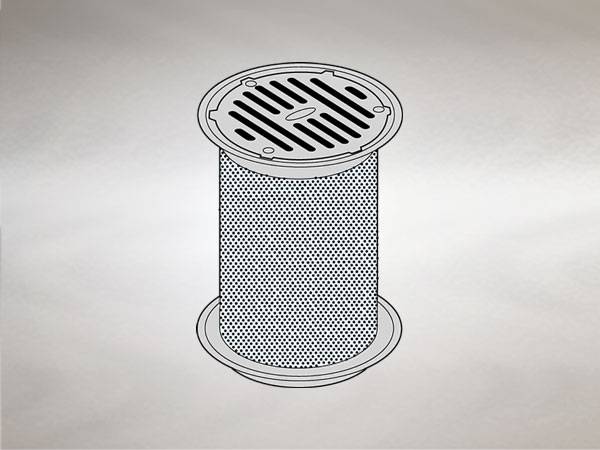

P801, ductile iron grating with perforated stainless steel ballast guard, ___ mm

For use with D10 to D12 gully bodies.

P901, copper dome with PVC standpipe, ___ mm

For use with vari-level gullies.

P1001, perforated stainless steel dome body, sheet or brush on membrane

For use with C2 to C5 gully bodies.

P1002, perforated stainless steel dome body

For use with D10 to D12 gully bodies.

Standard product features

Material:

- P801:

  • Grating: Ductile iron, sherardized.
  • Ballast guard: Stainless steel.
  • Frame/ Clamp collar: Cast iron, lacquered.

- P901:

  • Dome: Copper.
  • Standpipe: PVC.

- P1001 and P1002:

Dome: Perforated stainless steel.

Product Options

Type:

  • P801: For applications where a grating is required at the surface, in a paved area, or where access is required.
  • P901: For applications where the standpipe is concealed by soil; dome is removable for access purposes.
  • P1001: For applications where all drainage is concealed by soil, to suit sheet or brush on membranes.
  • P1002: For applications where all drainage is concealed by soil, to suit asphalt membranes.

Length:

P801 and P901 units: Ballast guards or stand pipes are manufactured to specific requirements; minimum 100 mm.
