PLANITHERM® TOTAL +

Application

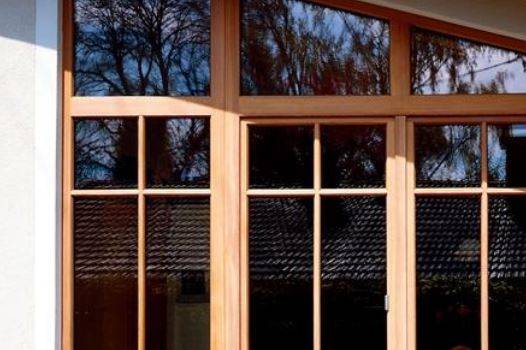

Suitable for use across all building sectors, including hospitals, schools, office buildings and homes in glazing applications that require thermal insulation and daylight.

Description

High performance low-emissivity glass, optimised for Window Energy Ratings (WERs). It is versatile, and can be used in a range of domestic and commercial applications.


Part of Saint-Gobain Glass’ PLANITHERM® product range, this low-e glass is a single stock product that can be used annealed or heat treated (thermally toughened or heat-strengthened) when required.


Delivers consistent thermal insulation, helping to reduce heating bills and provide thermal comfort in residential and commercial properties throughout the year.


This low-e coating is added to PLANICLEAR®, Saint-Gobain Glass’ mid iron glass substrate, as standard.


Features and benefits:

  • The thermal insulation properties enables energy savings by retaining internal heat during colder months.
  • Coatings are neutral, allowing high levels of natural light into buildings, helping to reduce the need for interior lighting.
  • Can be combined with other glazing solutions form the Saint-Gobain Glass range.


The suitability of PLANITHERM® coatings for use in exterior structural sealant glazing has been tested in accordance with ETAG 002, with Dow Corning DC993 and DC3362 silicones covered by an ETA (European Technical Approval).

General information

Color

Clear

Features

Enables energy savings by retaining internal heat during colder months, PLANITHERM® neutral coatings allowing high levels of natural light into buildings, reducing the need for interior lighting.

Material

Glass, low-emissivity (e) coating

Shape

Rectangular

Size

3210 x 6000 mm as standard

Uniclass 2015

Pr_25_71_33_02 Annealed glass sheetsPrimary

CAWS

H13/115 Structural glass assembly

H10/115 Patent glazing

H11/110 Curtain walling

Specification data - Annealed glass sheets Enhanced data

Third-party certification

CE Marked, Environmental Performance Declaration (EPD), Building Regulation (E&W) Approved Document L compliant

Thickness

4 mm

6 mm

6.8 mm

7.5 mm

8 mm

8.8 mm

10 mm

10.8 mm

Body colour

Clear

Coating

-

Type

Low-emissivity.

Performance requirements

-

Light

Light Transmission: 79% (with PLANICLEAR® 6/16(Ar)/4 doubled glazed unit)

Solar control

Solar Factor: 0.73 (with PLANICLEAR® 6/16(Ar)/4 doubled glazed unit)

Substrate glass

PLANICLEAR®

Standard.

STADIP®

STADIP PROTECT®

Processing

Consult manufacturer and insert requirements.

Standard

BS EN 1096: Class B

Panel size

3210 x 6000 mm

Special order

Environmental information

Recycled content

30
