Plain Mesh Channel Grating

Application

Suitable for areas with large volumes of wash down water and vat discharge, including:

  • White welly traffic.
  • Pedestrian.
  • 5 tonne forklift.
  • Industrial use.
  • Meat processing.
  • Chemical plants.
  • Food processing.
  • Drinks processing.
  • Laboratories.
  • Kitchens.
  • Hospitals.

Description

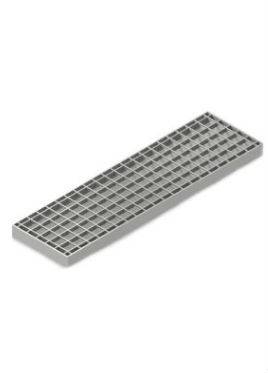

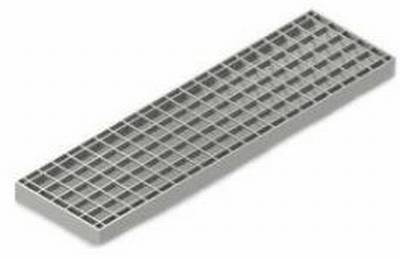

Plain mesh grating with a 22 x 22 mm opening and either 2 or 3 mm load bearing bars depending on the loading required and the free span of the channel. The product has an electropolished finish for extra hygiene.

Applications:

Suitable for areas with large volumes of wash down water and vat discharge, including:

  • White welly traffic.
  • Pedestrian.
  • 5 tonne forklift.
  • Industrial use.
  • Meat processing.
  • Chemical plants.
  • Food processing.
  • Drinks processing.
  • Laboratories.
  • Kitchens.
  • Hospitals.

General information

Material

1.4307 (304L) stainless steel

1.4404 (316L) stainless steel

Features

All sizes can be fabricated, high flow rate applications, multiple applications

Finish

Electropolished

Shape

Rectangle

Uniclass 2015

Pr_65_52_24_29 Floor channel covers and gratingsPrimary

CAWS

R11/310 Floor channels

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor channel covers and gratings

Product Reference

Plain Mesh Channel Grating

Type

KMG150

KMG207

Size

-

Width

146 mm

196 mm

Depth

25 mm

Standard.

40 mm

50 mm

Grate

207 x 207 mm

307 x 307 mm

Load class

A

B

C

Material

1.4307 (304L) stainless steel

1.4404 (316L) stainless steel

Standard product features

Length:

990 mm.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.0
Revit

Revit 2017

1

2.0
Download now from NBS National BIM Library
