Pitched Stainless Steel Profiled Sheet Roof on Light Steel Rafters

Verified by manufacturer 6 months ago

NBS

Pitched roof construction comprising: Metal profiled sheet covering system, light steel framed roof structure system.

Jump to:
BIM object icon
+44 (0)345 4569594 Website

Description

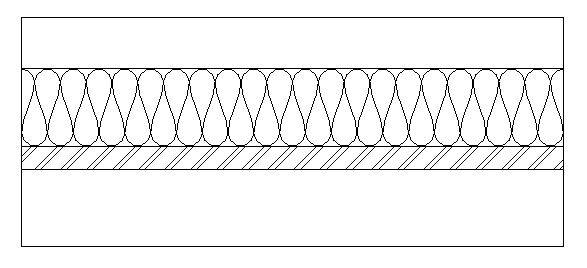

Pitched roof construction comprising:

Metal profile sheet covering system:

  • 100 mm Stainless steel profiled sheet
  • Plastics sheet roofing underlay
  • 150 mm Mineral wool insulation

Light steel framed roof structure system:

  • 45 mm Steel inner lining
  • 150 mm Cold-formed galvanized section

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
IFC
-

2

Revit

Revit 2016

2
