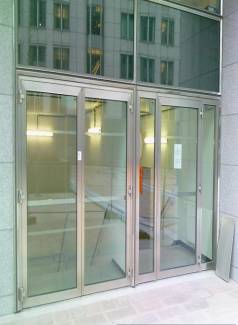

PiroSign Fire Rated Swing Doors

Application

Fire resistant door suitable for large and complex entrances.

Description

A range of fire resistant automatic and manual doors available in a range of dimensions and designs.


Features and benefits:

  • Available in a variety of single, double, multi and straight or curved configurations.
  • Motors for automatically opening door leaves weighing up to 3,000 kg are custom manufactured.
  • Door leaves are available in stainless steel, aluminium, copper and solid glass.
  • Made to measure in accordance with the client’s height and width specifications.

General information

Finish

Special finishes on request.

Stainless steel

Copper

Bronze

Aluminium

Polyester powder coated

Material

Glass

Steel

WarrantyDescription

Lifetime with service contract

Please contact Bauporte for further information.

Size

Available in a range of sizes.

Uniclass

Ss_25_30_20_25 Doorset systemsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Doorset systems Enhanced data

System performance

Fire performance requirements to BS EN 13501.

Doorset

-

Type

Composite doorsets.

Framework is constructed of welded through stainless steel sections for added durability and strength with glazing panels.

Glazing

Vision panels.

Over panels

Not required.

Required.

Over Panels Available.

Side panels

Not required.

Required.

Side panels available.

Product Reference

PiroSign Fire Rated Swing Doors - Single

PiroSign Fire Rated Swing Doors - Double

Finish

Door frame finish.

Stainless steel.

Copper.

Bronze.

Aluminium.

Polyester powder coated.

Show more

Operation

Manual.

Automatic.

Door locking

Manual.

Automatic.

ClearWidth

1000 mm+.

Available in 1 mm increments. To comply with Access to and use of buildings: Approved Document M.

Height

1980 mm+.

Available in 1 mm increments. Maximum door height is dependent on the resistance rating of the door, please check with Bauporte.

Weight

Door weight.

< 3000 kg.

Fire classification (to EN ISO 13501-1)

E.

PiroSign fire resistant doors that meet classifications E, El and EW and comply with EN 1634, EN 13501 and EN 15269.

Safety

Designed, manufactured and installed to EN 16005.

Power supply

Not required.

230 V/50 Hz.

Automatic only.

Drive unit

Underfloor drive unit.

Over door drive unit.

Under structural flooring slab drive unit.

Literature

Bauporte PiroSign Fire Rated Swing Doors

Bauporte PiroSign Fire Rated Swing Doors
