Pill And Beverage Hatch - Safe and Secure Service Hatch

Verified by manufacturer over a year ago

STJ Projects Ltd

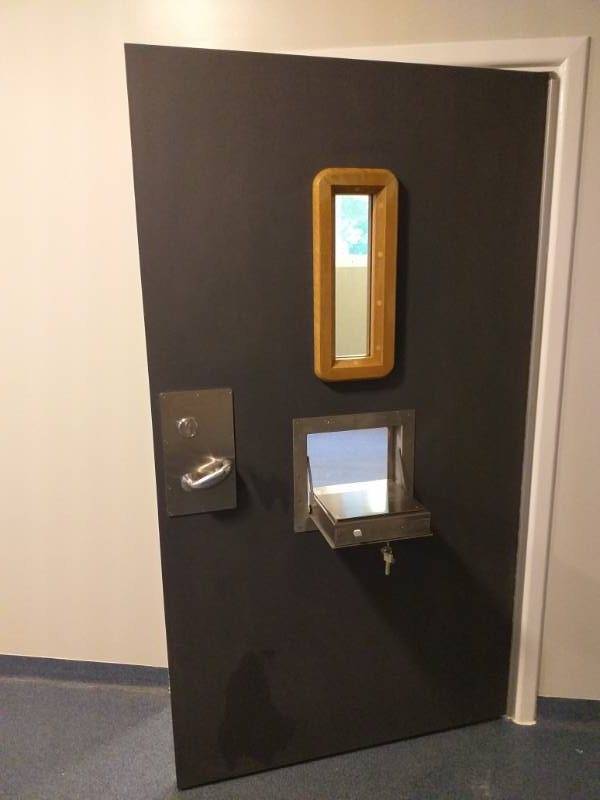

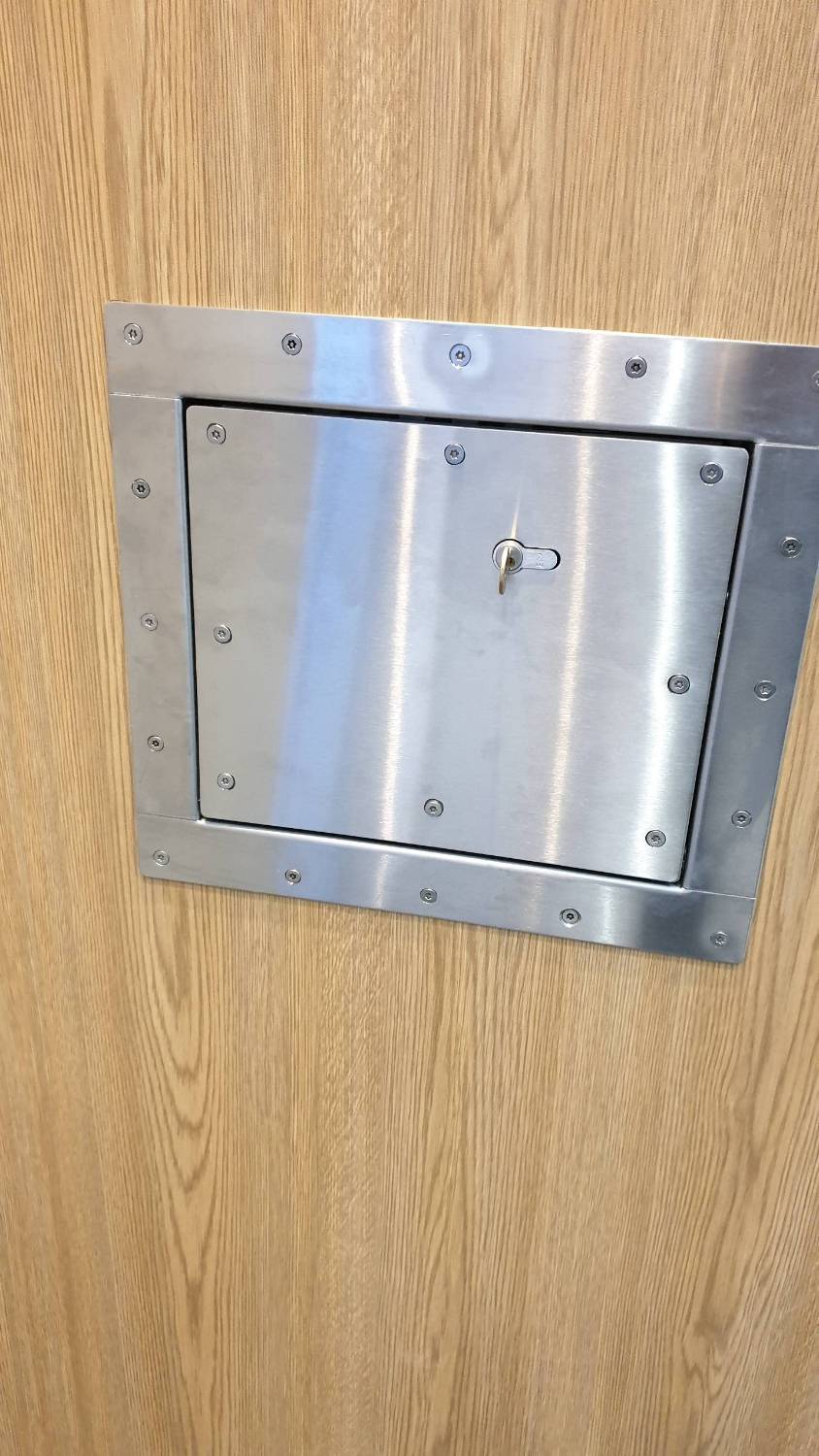

Stainless steel Pill and Beverage hatch for installation within doors in medium to high security Healthcare and Custodial environments.

Jump to:
+44(0)1724720977 Website

Application

Medium to High Security Mental Healthcare environments.

Medium to High Security Custodial environments.

Description

The Pill & Beverage Hatch has been designed to enhance patient dignity through a safe and secure means of dispensing medication and beverages. Staff safety is enhanced through the ability to open the hatch and utilising the door as a serving tray, before placing items on the tray and then standing back, permitting the patient free movement to obtain those items. Once the patient is clear, staff can quickly and safely close the hatch with the slam lock function engaging immediately on closure, allowing a safe time to lock the hatch in its closed position.


Features and benefits:

  • Flat secure serving shelf, reducing the need and potential of physical contact.
  • Safe retrieval of items by patient.
  • Option to have a lock in open position.
  • Slam lock function as standard with double throw lock bolts for added security.
  • Flush or surface mounted to door.
  • Available in a range of colours/effects via powder coating.
  • Suitable for medium and/or high secure environments.
  • Standard Euro Cylinder to allow client suiting of keys for ease of access.
  • Hardwood timber packer to allow installation to doors of any thickness.
  • No accessible fixings to patient side.
  • Hinged door can be replaced easily and quickly should it become damaged.

General information

Color

Silver

Manufacturer guidance

Available in a range of colours and effects via powder coating.

Finish

Powder-coated

Material

Stainless steel

Shape

Rectangle

Length

62 mm

Width

283 mm

Height

240 mm

Uniclass

Pr_30_59_97_90 Transaction unitsPrimary

CAWS

N10/110 Purpose-made

N10/10 Purpose-made

Specification data - Transaction units

Form

Door hatch.

Construction

-

Hatch doors

-

Locking

Double throw lock bolts (standard).

A lock in open position (optional).

Dimensions

240 x 283 x 62 mm.

Guidance for specification option:

Clear opening height: 173 mm, Clear opening width: 276 mm.

Material

Stainless steel.

Finish

Natural.

Powder coated.

Colour

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Packer

Not required.

Required.

Guidance for specification option:

The hatch suits a 62 mm thick door when the face surrounds are surface fixed to the door. A hardwood timber packer is available to allow the product to be used on door thicknesses less than 62 mm. It is recommended to install the packer to the non-patient side of the door, allowing a flush finish to the patient side.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

75 %
