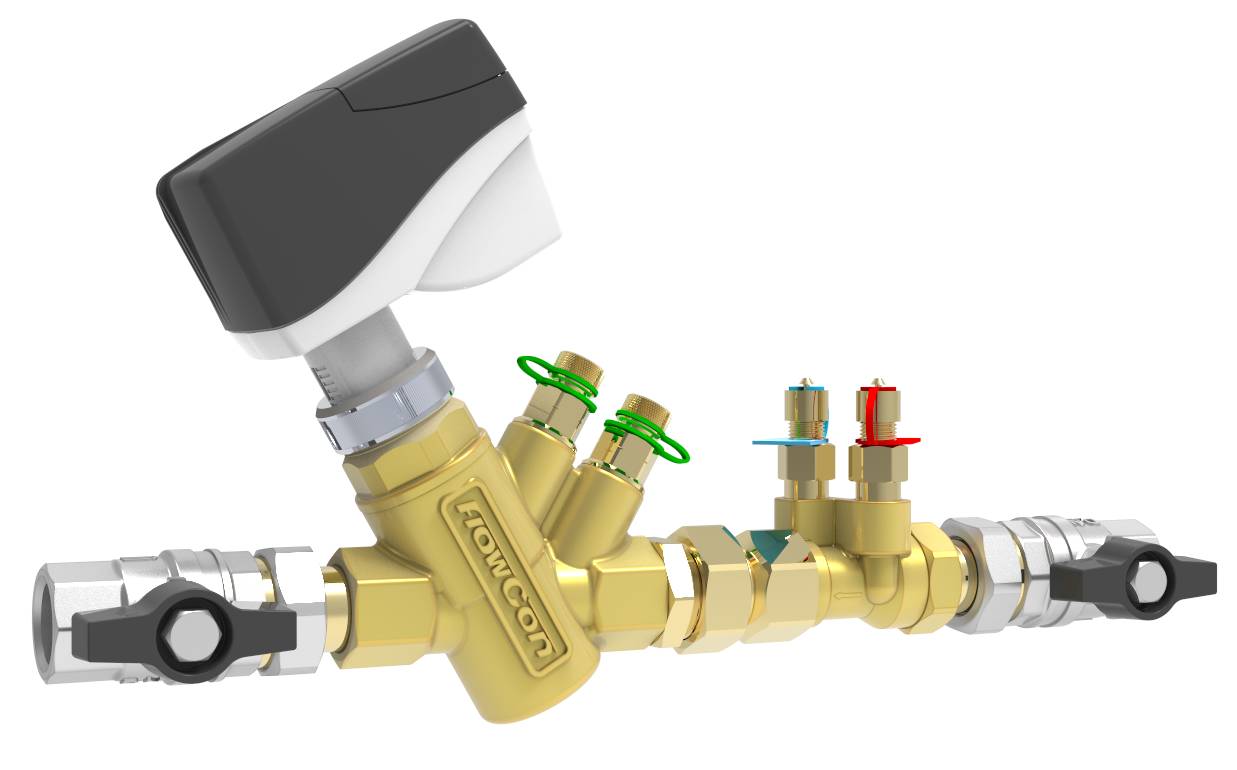

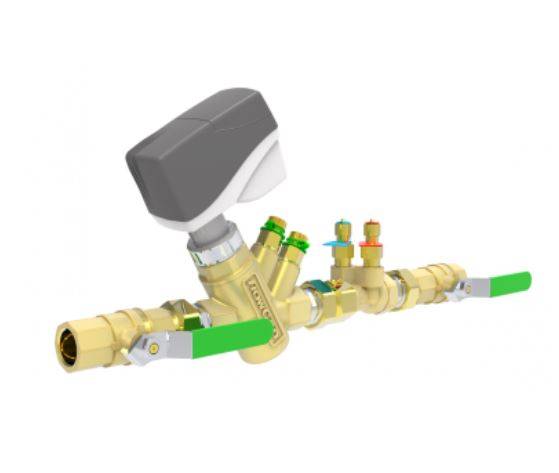

Name: PICV Zone Valve Assembly
Brand: FLOCONTROL LTD
SKU: qG8TxZiDHNsk7ubXdASVnk

PZ.12.1.T.Bxxx

Guidance for specification option:

1 = 15 XLF Metering Station Kvs 0.263.
Bxxx: Fitted with blank cap, insert supplied loose.

PZ.12.1.T.EQ0

Guidance for specification option:

1 = 15 XLF Metering Station Kvs 0.263.
EQ0: GreEQ.0 [0.00482—0.126 L/s, 16-600 kPaD].

PZ.12.1.T.EQ1

Guidance for specification option:

1 = 15 XLF Metering Station Kvs 0.263.
EQ1: GreEQ.1 [0.0764—0.224 L/s, 30-800 kPaD].

PZ.12.1.T.0

Guidance for specification option:

1 = 15 XLF Metering Station Kvs 0.263.
0: Green.0 [0.0103—0.160 L/s, 16-600 kPaD].

PZ.12.1.T.1

Guidance for specification option:

1 = 15 XLF Metering Station Kvs 0.263.
1: Green.1 [0.0178—0.308 L/s, 30-800 kPaD].

PZ.12.1.T.1HF

Guidance for specification option:

1 = 15 XLF Metering Station Kvs 0.263.
1HF: Green.1HF [0.172—0.736 L/s, 35-800 kPaD].

PZ.12.1.T.2

Guidance for specification option:

1 = 15 XLF Metering Station Kvs 0.263.
2: Green.2 [0.240—1.29 L/s, 16-800 kPaD].

PZ.12.1.T.3

Guidance for specification option:

1 = 15 XLF Metering Station Kvs 0.263.
3: Green.3 [0.528—3.79 L/s, 16-600 kPaD].

PZ.12.2.T.Bxxx

Guidance for specification option:

2 = 15 ULF Metering Station Kvs 0.55.
Bxxx: Fitted with blank cap, insert supplied loose.

PZ.12.2.T.EQ0

Guidance for specification option:

2 = 15 ULF Metering Station Kvs 0.55.
EQ0: GreEQ.0 [0.00482—0.126 L/s, 16-600 kPaD].

PZ.12.2.T.EQ1

Guidance for specification option:

2 = 15 ULF Metering Station Kvs 0.55.
EQ1: GreEQ.1 [0.0764—0.224 L/s, 30-800 kPaD].

PZ.12.2.T.0

Guidance for specification option:

2 = 15 ULF Metering Station Kvs 0.55.
0: Green.0 [0.0103—0.160 L/s, 16-600 kPaD].

PZ.12.2.T.1

Guidance for specification option:

2 = 15 ULF Metering Station Kvs 0.55.
1: Green.1 [0.0178—0.308 L/s, 30-800 kPaD].

PZ.12.2.T.1HF

Guidance for specification option:

2 = 15 ULF Metering Station Kvs 0.55.
1HF: Green.1HF [0.172—0.736 L/s, 35-800 kPaD].

PZ.12.2.T.2

Guidance for specification option:

2 = 15 ULF Metering Station Kvs 0.55.
2: Green.2 [0.240—1.29 L/s, 16-800 kPaD].

PZ.12.2.T.3

Guidance for specification option:

2 = 15 ULF Metering Station Kvs 0.55.
3: Green.3 [0.528—3.79 L/s, 16-600 kPaD].

PZ.12.3.T.Bxxx

Guidance for specification option:

3 = 15 LF Metering Station Kvs 1.15.
Bxxx: Fitted with blank cap, insert supplied loose.

PZ.12.3.T.EQ0

Guidance for specification option:

3 = 15 LF Metering Station Kvs 1.15.
EQ0: GreEQ.0 [0.00482—0.126 L/s, 16-600 kPaD].

PZ.12.3.T.EQ1

Guidance for specification option:

3 = 15 LF Metering Station Kvs 1.15.
EQ1: GreEQ.1 [0.0764—0.224 L/s, 30-800 kPaD].

PZ.12.3.T.0

Guidance for specification option:

3 = 15 LF Metering Station Kvs 1.15.
0: Green.0 [0.0103—0.160 L/s, 16-600 kPaD].

PZ.12.3.T.1

Guidance for specification option:

3 = 15 LF Metering Station Kvs 1.15.
1: Green.1 [0.0178—0.308 L/s, 30-800 kPaD].

PZ.12.3.T.1HF

Guidance for specification option:

3 = 15 LF Metering Station Kvs 1.15.
1HF: Green.1HF [0.172—0.736 L/s, 35-800 kPaD].

PZ.12.3.T.2

Guidance for specification option:

3 = 15 LF Metering Station Kvs 1.15.
2: Green.2 [0.240—1.29 L/s, 16-800 kPaD].

PZ.12.3.T.3

Guidance for specification option:

3 = 15 LF Metering Station Kvs 1.15.
3: Green.3 [0.528—3.79 L/s, 16-600 kPaD].

PZ.12.4.T.Bxxx

Guidance for specification option:

4 = 15 Metering Station Kvs 2.80.
Bxxx: Fitted with blank cap, insert supplied loose.

PZ.12.4.T.EQ0

Guidance for specification option:

4 = 15 Metering Station Kvs 2.80.
EQ1: GreEQ.0 [0.00482—0.126 L/s, 16-600 kPaD].

PZ.12.4.T.EQ1

Guidance for specification option:

4 = 15 Metering Station Kvs 2.80.
EQ1: GreEQ.1 [0.0764—0.224 L/s, 30-800 kPaD].

PZ.12.4.T.0

Guidance for specification option:

4 = 15 Metering Station Kvs 2.80.
0: Green.0 [0.0103—0.160 L/s, 16-600 kPaD].

PZ.12.4.T.1

Guidance for specification option:

4 = 15 Metering Station Kvs 2.80.
1: Green.1 [0.0178—0.308 L/s, 30-800 kPaD].

PZ.12.4.T.1HF

Guidance for specification option:

4 = 15 Metering Station Kvs 2.80.
1HF: Green.1HF [0.172—0.736 L/s, 35-800 kPaD].

PZ.12.4.T.2

Guidance for specification option:

4 = 15 Metering Station Kvs 2.80.
2: Green.2 [0.240—1.29 L/s, 16-800 kPaD].

PZ.12.4.T.3

Guidance for specification option:

4 = 15 Metering Station Kvs 2.80.
3: Green.3 [0.528—3.79 L/s, 16-600 kPaD].

Color	Gold Silver
Finish	Brass
Material	Brass
Warranty description	18 months

Pressure rating	PN25.
Temperature range	-10°C to +110°C.
Material	DZR brass and nickel-plated brass.
Connections	Threaded, female according to UNI ISO 228/1.

Type:	DN15.
Product code	PZ.12.1.T.Bxxx Guidance for specification option: 1 = 15 XLF Metering Station Kvs 0.263. Bxxx: Fitted with blank cap, insert supplied loose. PZ.12.1.T.EQ0 Guidance for specification option: 1 = 15 XLF Metering Station Kvs 0.263. EQ0: GreEQ.0 [0.00482—0.126 L/s, 16-600 kPaD]. PZ.12.1.T.EQ1 Guidance for specification option: 1 = 15 XLF Metering Station Kvs 0.263. EQ1: GreEQ.1 [0.0764—0.224 L/s, 30-800 kPaD]. PZ.12.1.T.0 Guidance for specification option: 1 = 15 XLF Metering Station Kvs 0.263. 0: Green.0 [0.0103—0.160 L/s, 16-600 kPaD]. PZ.12.1.T.1 Guidance for specification option: 1 = 15 XLF Metering Station Kvs 0.263. 1: Green.1 [0.0178—0.308 L/s, 30-800 kPaD]. PZ.12.1.T.1HF Guidance for specification option: 1 = 15 XLF Metering Station Kvs 0.263. 1HF: Green.1HF [0.172—0.736 L/s, 35-800 kPaD]. PZ.12.1.T.2 Guidance for specification option: 1 = 15 XLF Metering Station Kvs 0.263. 2: Green.2 [0.240—1.29 L/s, 16-800 kPaD]. PZ.12.1.T.3 Guidance for specification option: 1 = 15 XLF Metering Station Kvs 0.263. 3: Green.3 [0.528—3.79 L/s, 16-600 kPaD]. PZ.12.2.T.Bxxx Guidance for specification option: 2 = 15 ULF Metering Station Kvs 0.55. Bxxx: Fitted with blank cap, insert supplied loose. PZ.12.2.T.EQ0 Guidance for specification option: 2 = 15 ULF Metering Station Kvs 0.55. EQ0: GreEQ.0 [0.00482—0.126 L/s, 16-600 kPaD]. PZ.12.2.T.EQ1 Guidance for specification option: 2 = 15 ULF Metering Station Kvs 0.55. EQ1: GreEQ.1 [0.0764—0.224 L/s, 30-800 kPaD]. PZ.12.2.T.0 Guidance for specification option: 2 = 15 ULF Metering Station Kvs 0.55. 0: Green.0 [0.0103—0.160 L/s, 16-600 kPaD]. PZ.12.2.T.1 Guidance for specification option: 2 = 15 ULF Metering Station Kvs 0.55. 1: Green.1 [0.0178—0.308 L/s, 30-800 kPaD]. PZ.12.2.T.1HF Guidance for specification option: 2 = 15 ULF Metering Station Kvs 0.55. 1HF: Green.1HF [0.172—0.736 L/s, 35-800 kPaD]. PZ.12.2.T.2 Guidance for specification option: 2 = 15 ULF Metering Station Kvs 0.55. 2: Green.2 [0.240—1.29 L/s, 16-800 kPaD]. PZ.12.2.T.3 Guidance for specification option: 2 = 15 ULF Metering Station Kvs 0.55. 3: Green.3 [0.528—3.79 L/s, 16-600 kPaD]. PZ.12.3.T.Bxxx Guidance for specification option: 3 = 15 LF Metering Station Kvs 1.15. Bxxx: Fitted with blank cap, insert supplied loose. PZ.12.3.T.EQ0 Guidance for specification option: 3 = 15 LF Metering Station Kvs 1.15. EQ0: GreEQ.0 [0.00482—0.126 L/s, 16-600 kPaD]. PZ.12.3.T.EQ1 Guidance for specification option: 3 = 15 LF Metering Station Kvs 1.15. EQ1: GreEQ.1 [0.0764—0.224 L/s, 30-800 kPaD]. PZ.12.3.T.0 Guidance for specification option: 3 = 15 LF Metering Station Kvs 1.15. 0: Green.0 [0.0103—0.160 L/s, 16-600 kPaD]. PZ.12.3.T.1 Guidance for specification option: 3 = 15 LF Metering Station Kvs 1.15. 1: Green.1 [0.0178—0.308 L/s, 30-800 kPaD]. PZ.12.3.T.1HF Guidance for specification option: 3 = 15 LF Metering Station Kvs 1.15. 1HF: Green.1HF [0.172—0.736 L/s, 35-800 kPaD]. PZ.12.3.T.2 Guidance for specification option: 3 = 15 LF Metering Station Kvs 1.15. 2: Green.2 [0.240—1.29 L/s, 16-800 kPaD]. PZ.12.3.T.3 Guidance for specification option: 3 = 15 LF Metering Station Kvs 1.15. 3: Green.3 [0.528—3.79 L/s, 16-600 kPaD]. PZ.12.4.T.Bxxx Guidance for specification option: 4 = 15 Metering Station Kvs 2.80. Bxxx: Fitted with blank cap, insert supplied loose. PZ.12.4.T.EQ0 Guidance for specification option: 4 = 15 Metering Station Kvs 2.80. EQ1: GreEQ.0 [0.00482—0.126 L/s, 16-600 kPaD]. PZ.12.4.T.EQ1 Guidance for specification option: 4 = 15 Metering Station Kvs 2.80. EQ1: GreEQ.1 [0.0764—0.224 L/s, 30-800 kPaD]. PZ.12.4.T.0 Guidance for specification option: 4 = 15 Metering Station Kvs 2.80. 0: Green.0 [0.0103—0.160 L/s, 16-600 kPaD]. PZ.12.4.T.1 Guidance for specification option: 4 = 15 Metering Station Kvs 2.80. 1: Green.1 [0.0178—0.308 L/s, 30-800 kPaD]. PZ.12.4.T.1HF Guidance for specification option: 4 = 15 Metering Station Kvs 2.80. 1HF: Green.1HF [0.172—0.736 L/s, 35-800 kPaD]. PZ.12.4.T.2 Guidance for specification option: 4 = 15 Metering Station Kvs 2.80. 2: Green.2 [0.240—1.29 L/s, 16-800 kPaD]. PZ.12.4.T.3 Guidance for specification option: 4 = 15 Metering Station Kvs 2.80. 3: Green.3 [0.528—3.79 L/s, 16-600 kPaD]. Show more Manufacturer guidance See also Handle choice for final component of product code. final handle signifier: Product code elements: PZ: (fixed; = Zone control PICV valve assembly) 12 (fixed; = ½" nominal diameter) Metering station; see option guidance for details. T (fixed;= Threaded). See option guidance for final element definitions.
Handle	Standard (butterfly). Extended.

Country of product manufacture	United Kingdom
Recycled content As defined in clause 7.8 of BS EN ISO 14021	70 %

PICV Zone Valve Assembly

Application

Description

General information

Color

Finish

Material

Warranty description

Uniclass

Product range

Specification data - Pressure-independent control valves

Pressure rating

PN25.

Temperature range

-10°C to +110°C.

Material

DZR brass and nickel-plated brass.

Connections

Threaded, female according to UNI ISO 228/1.

Type:

Product code

Manufacturer guidance

Handle

Sustainability data

Country of product manufacture

Recycled content

Third party certifications

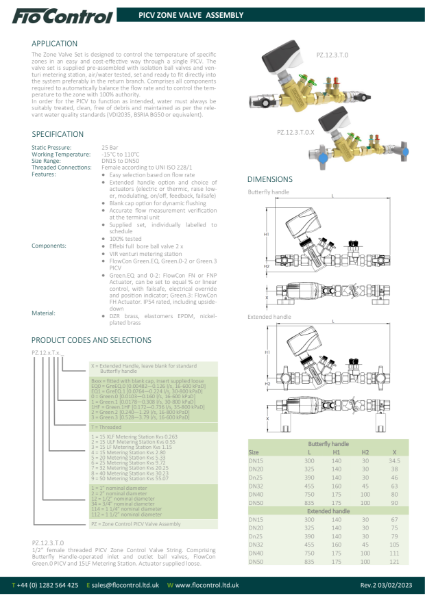

Literature
