Phoenix Shrouded Bearing Butt Hinges

Phoenix Shrouded Bearing Butt Hinges

Third party certifications:
  • Certifire Certificate

    Certifire Certificate

    Certificate type

Hafele UK Ltd

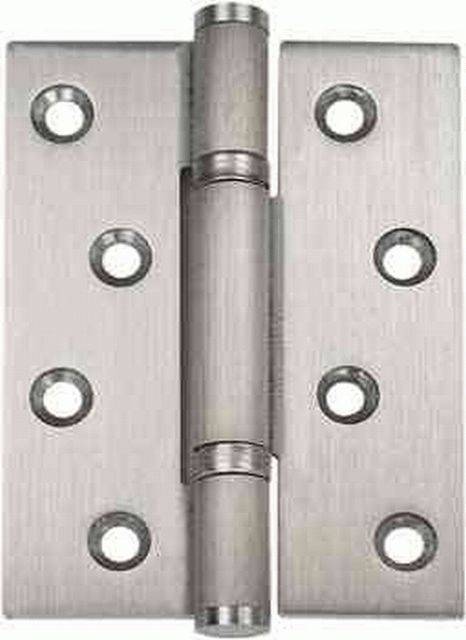

Fixed pin, three knuckle, shrouded bearing butt hinges.

Jump to:
+44 (0)800 171 2907 www.hafele.co.uk
Description

Fixed pin, three knuckle, shrouded bearing butt hinges.

Staggered hole pattern as standard.

General information

Material

Grade 304 stainless steel

As standard.

Carbon steel

As schedule ___

Uniclass 2015

Pr_30_36_36_79 Single axis door hingesPrimary

CAWS

P21/310 Single axis door hinges

P21/6 Single axis door hinges

Specification data - Single axis door hinges

Product Reference

Phoenix Shrouded Bearing Butt Hinges

Type

926.91.460

102 x 76 mm, square corners, satin.

926.91.461

102 x 76 mm, square corners, polished.

926.91.470

102 x 76 mm, radius corners, satin.

926.91.471

102 x 76 mm, radius corners, polished.

926.91.480

102 x 89 mm, square corners, satin.

926.91.481

102 x 89 mm, square corners, polished.

926.91.490

102 x 89 mm, radius corners, satin.

926.91.491

102 x 89 mm, radius corners, polished.

926.91.500

102 x 102 mm, square corners, satin.

926.91.501

102 x 102 mm, square corners, polished.

926.91.510

102 x 102 mm, radius corners, satin.

926.91.511

102 x 102 mm, radius corners, polished.

As schedule ___

Material

Grade 304 stainless steel

As standard.

Carbon steel

As schedule ___

Other requirements

None

ANSI hole pattern

Anti-ligature

Conductor

Dog bolt

As schedule ___

Product Options

Type:

– 102 x 76 m hinges:

  • Grade (BS EN 1935): 13.
  • Door weight (maximum): 120 kg.
  • Door thickness (minimum): 35 mm.

– 102 x 89 mm hinges:

  • Door weight (maximum): 100 kg.
  • Door thickness (minimum): 44 mm.

– 102 x 102 mm hinges:

  • Door weight (maximum): 100 kg.
  • Door thickness (minimum): 44 mm.

Third party certifications
  • Certificate: CF351 : 102 x 76 mm hinges, 30 minutes
