PHLR Pro
Application

Detection of hydrocarbon liquids in interstitial spaces of tanks, pipes, sumps or other containment areas where hydrocarbon liquid can accumulate to a depth of 1/4" or more.

Consult manufacturer's literature for examples of:

  • Contained pipe;
  • Pressurized containment;
  • Sump;
  • Contained area.

Description

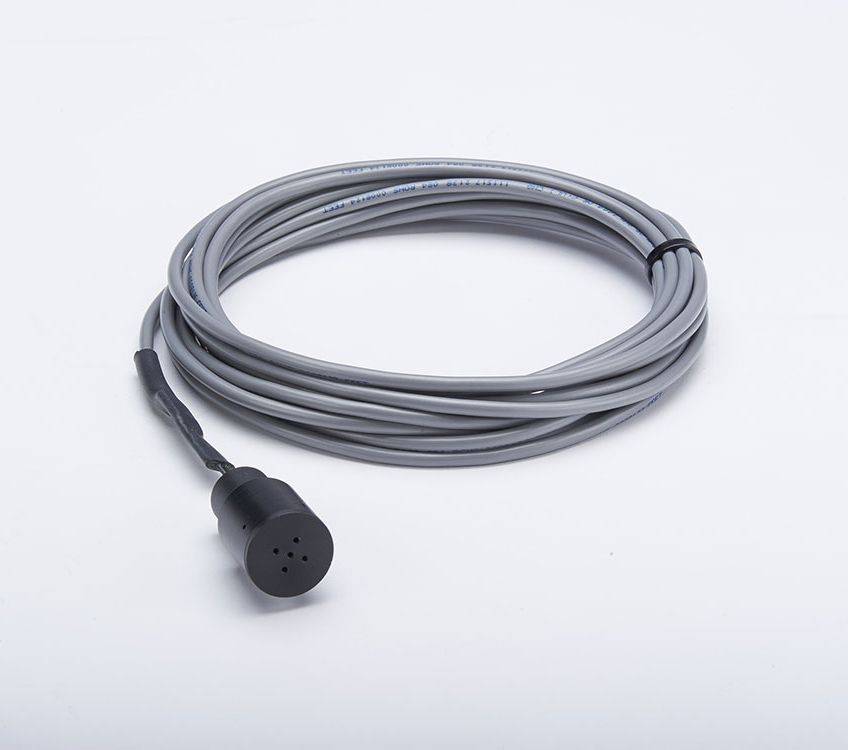

Resettable hydrocarbon probe.


Features and benefits:


  • Detects hydrocarbon liquids in interstitial spaces of tanks and pipes, sumps and other containment areas where hydrocarbon liquid can accumulate to a depth of ¼” or more.
  • Detectable liquids include: gasoline, diesel fuel, jet fuel and crude oil.
  • Ignores vapours.
  • Compact, durable design.
  • Fast respond time.
  • Relay-output capable.
  • Sensor elements swell upon exposure to hydrocarbon liquids to activate a sealed switch. Sensor elements can be cleaned and reused multiple times, allowing a quick reset time.
  • A PHLR series probe is available for the PAL-AT® and LiquidWatch® systems.

General information
Color

Grey/ black

Features

Resettable hydrocarbon probe; Detects hydrocarbon liquids in interstitial spaces of tanks and pipes, sumps and other containment areas; Compact, durable design; Fast respond time; Relay-output capable.

Shape

Cable.

Size

Manufacturer's standard

WarrantyDescription

Consult manufacturer

Uniclass 2015
Pr_75_50_48_67 Probe leak sensorsPrimary
Specification data - Probe leak sensors Enhanced data
Liquid to be detected

Hydrocarbon.

Response time (maximum)

<One minute:

1,1,1, Trichloroethane; acetone; MEK; Xylene; naphtha; gasoline.

<Five minutes:

Diesel fuel; kerosene; jet fuel; crude oil.

Alcohols are not detected.

Resettability

Required.

Exposure limits

Consult manufacturer

Mounting arrangement

Manufacturer's standard

PHLR Probe:

Slips into the end of a 3/4" schedule 40 PVC pipe, which can then be mounted in any orientation, horizontal or vertical.

PHLR-P Probe:

Slips into a 3/4" PVC coupling, which must be mounted vertically.

Product Reference

PHLR Probe

Standard, for non-pressurized applications.

PHLR-P Probe

For pressurized applications.
