PFEIFER FS Box Light
PFEIFER FS Box Light
European Technical Approval (ETA)
Certificate type

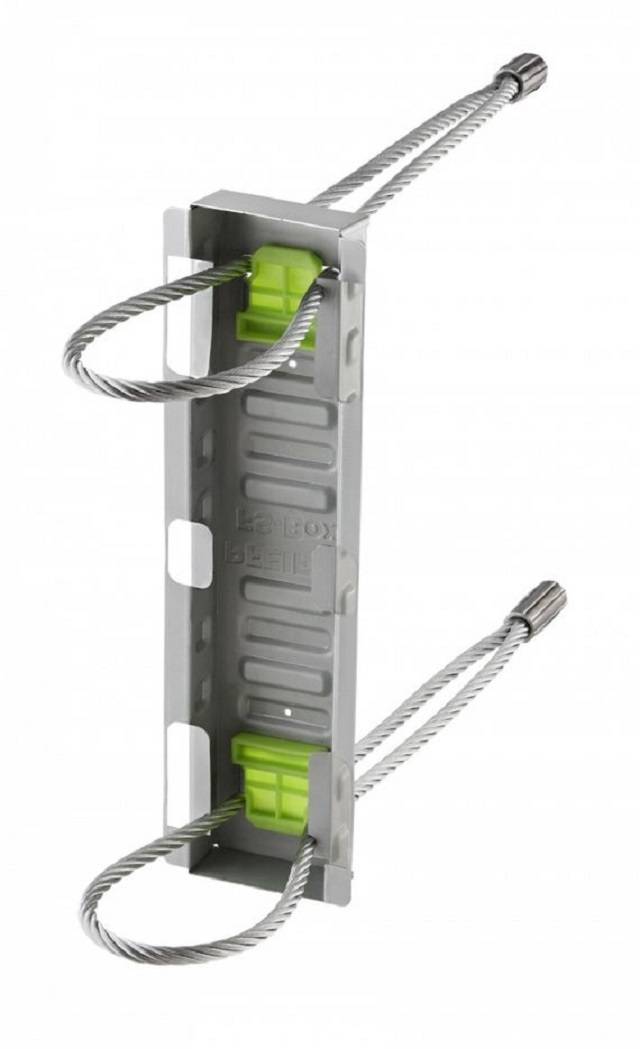

Wire loop box for concrete to concrete connections.
Application
Precast to in-situ, or in-situ to in-situ concrete connections.
Description

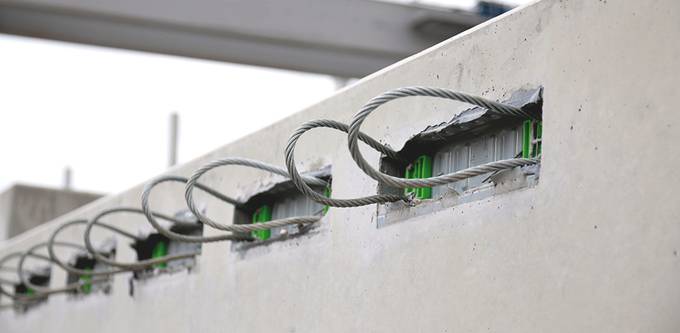

The Pfeifer FS Box offers high load continuity connections. Wire loops are housed inside the steel box which is cast into concrete so that its outside cover is flush with the concrete surface. Removing the cover releases the loops so they project to receive reinforcement which is then passed through the loops prior to pouring the concrete of an adjacent part of the structure.
The FS Box supports acting loads in three dimensions and its projecting wire loops are much safer for site personnel than projecting reinforcing bars.
Design load capacities up to 45 kN per box.
Features and benefits:
- Traditional bar projections are avoided.
- High load capacities.
- Reliable performance.
- Simple installation.
General information
Color | Grey |
Finish | Zinc plated |
Material | Steel |
Shape | Other |
Length | 320 mm 220 mm |
Width | 30 mm 25 mm |
Height | 70 mm 80 mm |
Uniclass | |
CAWS | E30/250 Proprietary prefabricated continuity reinforcement strips |
Specification data - Prefabricated continuity reinforcement strips
Materials | Manufacturer's standard. Manufacturer guidance
|
Dimensions | 220 x 25 x 80 mm. Guidance for specification option: Length x height x width. |
StrengthGrade | 45 kN per box. |
Sustainability data
Country of product manufacture | Germany |
Third party certifications
European Technical Approval (ETA)

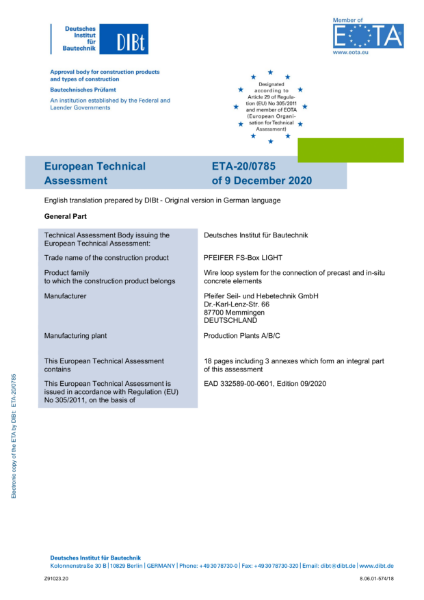

European Technical Approval For Pfeifer FS Box Light
Literature
Pfeifer FS Box Design Catalogue
Pfeifer FS Box Light Product Catalogue
