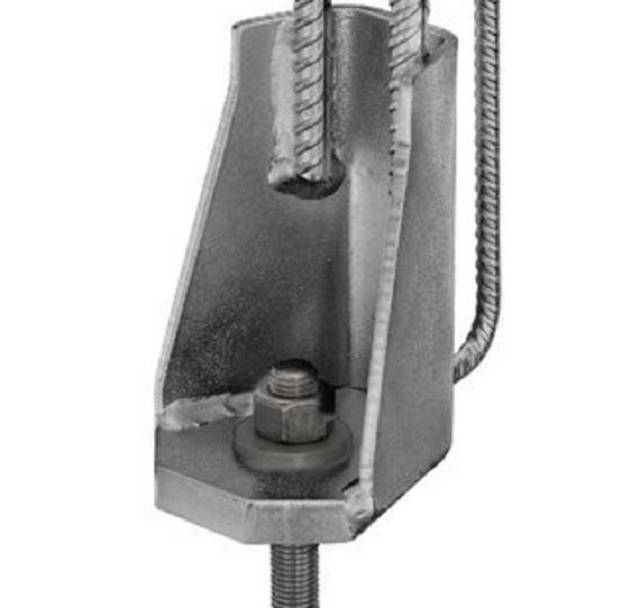

PFEIFER Column Shoe Fixing System
Verified by manufacturer 3 months ago
PCC-16
PCC-16
Cast-in threaded connection for precast columns and beams.
Application
The primary use is the connection of precast concrete columns to concrete slabs and foundations. The system can also be used to connect precast columns vertically to each other and connect beams to columns corbels.
Description
PFEIFER Column Shoes and PFEIFER Foundation Anchors provide a secure threaded anchorage system to to connect precast concrete columns to foundations and floor slabs. PFEIFER Column Shoes are cast into precast columns at the precast concrete factory. At the construction site PFEIFER Column Shoes are connected to the slab or foundation using PFEIFER Foundation Anchors. This system can also be used to connect precast columns vertically to each other and connect beams to columns corbels.
The standard range of products incorporates connections M16 - M39. Connections M42 - M56 are also available for special requirements.
Features and benefits:
- Performance verified by ETA 18/0785.
- Fast installation of columns without temporary propping.
- Threaded connections can immediately be loaded..
- All-weather installation.
- Levelling and adjustment capability.
- High quality materials.
- Easy to connect to existing reinforcement (overlapping joint).
- CE marked.
General information
Color | Black |
Material | Steel |
Shape | Other |
Width | 16 mm Guidance for specification option: M16 20 mm Guidance for specification option: M20 24 mm Guidance for specification option: M24 30 mm Guidance for specification option: M30 36 mm Guidance for specification option: M36 Manufacturer guidanceDimensions refer to connecting Foundation Anchor Thread diameter |
Height | 725 mm Guidance for specification option: M16 connection 880 mm Guidance for specification option: M20 connection 1085 mm Guidance for specification option: M24 connection 1360 mm Guidance for specification option: M30 connection 1475 mm Guidance for specification option: M30 connection Manufacturer guidanceDimension refers to the height of the Column Shoe within the column |
Uniclass | |
CAWS | E42/345 Anchor plates/ column shoes |
Specification data - Carbon steel column shoes
Usage | Rigid connection of precast concrete columns and foundations |
Material | |
Designation | Reinforcing steel bar B500 A/B structural steel. |
Anchors | |
Location | Foundation anchors. |
Dimensions | 90 x 89 x 145 mm. |
Height | 725 mm. |
Sustainability data
Country of product manufacture | Germany |
Material | Steel |
Literature
Pfeifer Column Shoe Fixing System Product Catalogue
Installation Instructions Pfeifer Column Shoe PCC - Construction Site
Installation Instructions Pfeifer Column Shoe PCC - Precast Factory
