Intumescent pipe wrap designed to provide a fire-resistant seal in flexible and rigid walls and rigid floors.
The intended use of PFC Corofil Intumescent Pipe Wraps CIPW is to reinstate the fire resistance performance of wall and floor constructions where they are penetrated by various combustible pipes services.
PFC Corofil Intumescent Pipe Wraps CIPW are designed and tested to provide a fire-resistant seal in flexible walls, rigid walls, rigid floors, and PFC Corofil Coated panels where they have been penetrated by service penetrations containing plastic pipes and metallic pipes with insulation.
PFC Corofil Intumescent Pipe Wraps CIPW have been tested to EN1366-3 and offer fire resistance periods of
up to 120 minutes for differing services and wall/floor constructions. Sizes are available to suit pipes from 32mm up to 250mm diameter. In the event of a fire the intumescent will expand when heated, providing a closure of combustible pipes to prevent the passage of fire between compartments.

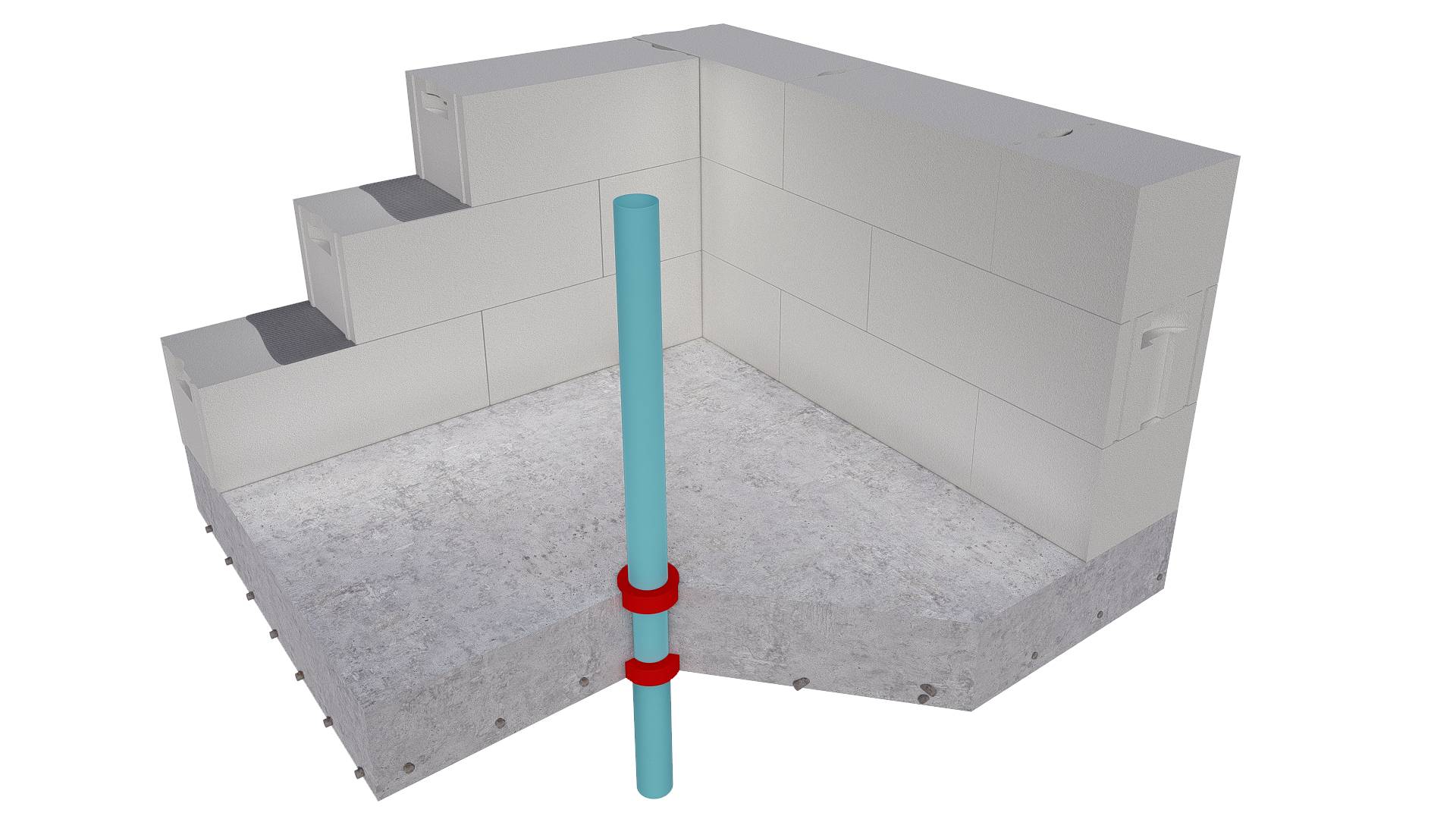

PFC Corofil Intumescent Pipe Wraps CIPW are supplied in assembled form. The intumescent in the wrap is contained within a lightweight PVC carrier bag and is installed around the pipe at the soffit and upper face of rigid floors or on both faces of the wall depending on the application. The annular gap around the pipe wrap should be sealed using PFC Corofil Acoustic Intumescent Sealant (please see Technical Data Sheet TDCAIS for details).
Features and benefits:
• Provides fire resistance performance of up to 120 minutes integrity and insulation
• Conditioned to Type X: Intended for conditions exposed to weathering -20°C to +70°C; tested in accordance with EOTA TR024. Products for penetration seals intended for outdoor use exposed to weathering – rain, UV, high temperatures, frost and frost thaw in winter
• Have an assumed working life of 10 years

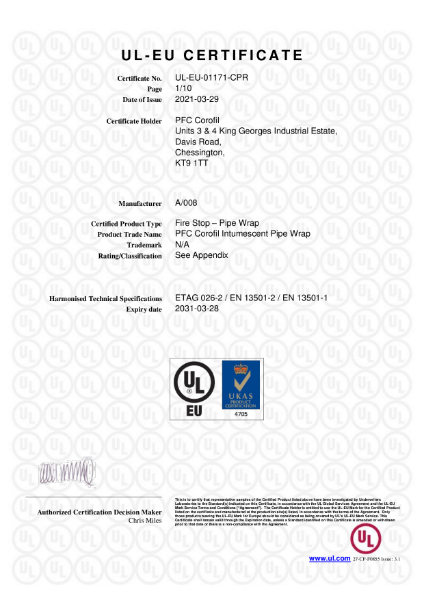

• 3rd party certification; UL-EU Certificate UL-EU-01171-CPR
Flexible intumescent material.
Pr_65_52_61_15 Concealed intumescent pipe collarsPrimary
P12/370 Pipe collar
P12/43 Pipe collar
Fitted in hole or opening.
Insert requirement, available to suit 32–250 mm outer diameter pipes.
Up to two hours (120 minutes).
To EN 1366-3: 2009, dependent on size and substrate, consult manufacturer's literature for more information.
UL-EU Certificate: UL-EU-01171-CPR.
Country of material origin
