PFC Corofil Insulated Fire Sleeves CIFS
Verified by manufacturer 12 days ago

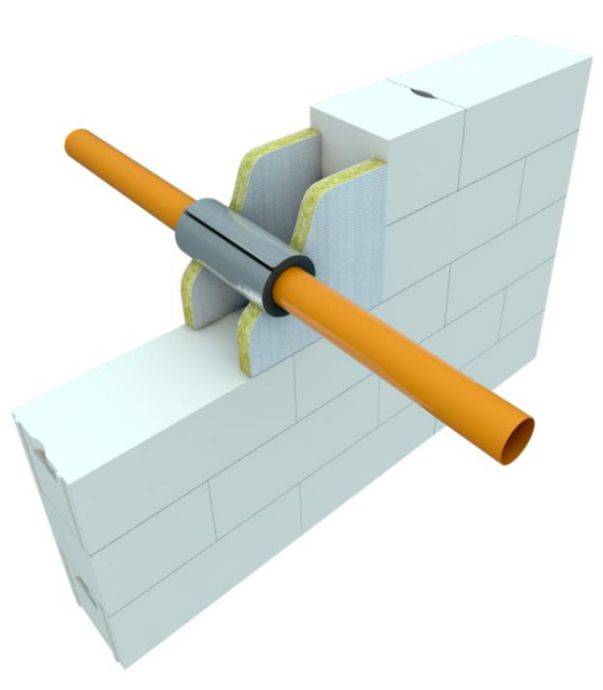

Insulated fire sleeve installed around metal and plastic pipes through non-load bearing wall and floor constructions.
Application
PFC Corofil Insulated Fire Sleeves are a pipe closure device, installed around metal and plastic pipes to form a penetration seal, to reinstate the fire resistance performance of non load bearing wall and floor constructions where they have been provided with apertures for the penetration of services.
Description
PFC Corofil Insulated Fire Sleeve is a flexible intumescent material, consisting primarily of mineral fibres, intercalated graphite and organic binders formed into a pipe sleeve. Grey in colour it has a glass fibre reinforced aluminium foil cladding around the perimeter along its full length. Supplied in various diameters to suit specific pipe sizes it has a nominal 25 mm thick wall. It can be cut down along its length to aid fitment and a strip of aluminium foil tape is used to seal the joint.
PFC Corofil Insulated Fire Sleeve have been tested in accordance with EN 1366-3 and offer fire resistance periods of up to EI240 for differing services and wall / floor constructions.
Features and benefits:
- Comprehensive range of sizes to suit pipe diameters 15–162 mm.
- Can be used in flexible and rigid walls, rigid floors and with Corofil Firestop Compound.
- Reduces cold bridging on insulated pipe systems.
- Conditioned to Type X: Products intended for use in conditions exposed to weathering.
General information
Color | Grey |
Finish | Foil |
Material | Graphite Guidance for specification option: Flexible intumescent material, consisting primarily of mineral fibres, intercalated graphite and organic binders. It has a glass fibre reinforced aluminium foil cladding around the perimeter along its full length. |
Shape | Circle |
Length | 300 mm |
Uniclass | |
CAWS | P12/370 Pipe collar P12/43 Pipe collar |
Product range |
Specification data - Concealed intumescent pipe collars
Sizes | 25 mm thick wall. |
Fire performance | Up to four hours (240 minutes).Guidance for specification option: To EN 1366-3:2009, dependent on size and pipe material, consult manufacturer's literature for more information. |
Diameter | Guidance for specification option: Available to suit 15–162 mm pipe diameters, consult manufacturer's literature for more information. |
Length | 300 mm. Guidance for specification option: Consult manufacturer's literature for more information. |
Position | Fitted in hole or opening. |
Sustainability data
Country of material origin | United Kingdom |
Material | Graphite Guidance for specification option: Flexible intumescent material, consisting primarily of mineral fibres, intercalated graphite and organic binders. It has a glass fibre reinforced aluminium foil cladding around the perimeter along its full length. |
Literature

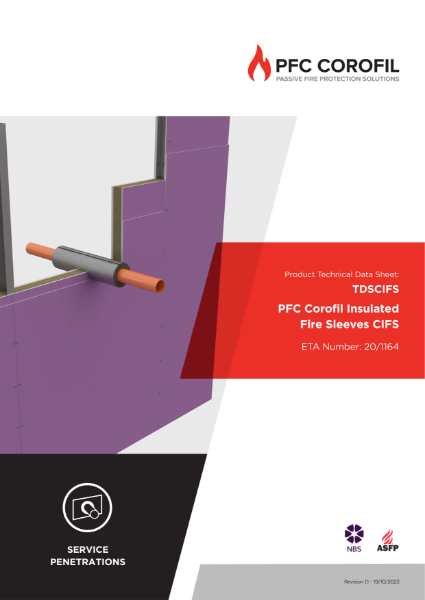

PFC Corofil Insulated Fire Sleeves CIFS - Datasheet
