PFC Corofil Cable Patch CCPH
Verified by manufacturer 12 days ago
UL-EU Certified
Certificate type
Intumescent putty used to form penetration seals where small cables, pipes or conduits penetrate walls.
Application
PFC Corofil Cable Patch CCPH is used to reinstate the fire resistance performance of flexible or rigid walls where they have been penetrated by small cables, pipes, or conduits.
Description
PFC Corofil Cable Patch CCPH is an intumescent putty used to form penetration seals where small cables, pipes or conduits penetrate walls. The PFC Corofil Cable Patch is available as a disc 100mm diameter for maximum 50mm x 50mm apertures. The discs are supplied pre cut with a peel off protective backing. The cable patch is installed by removing the backing and applying the patch around the service where it penetrates the face of the wall.
Feature and benefits:
- Tested to EN 1366-3.
- Provides fire resistance performance of up to 120 minutes integrity and insulation.
- Can be used in rigid and flexible walls.
- Conditioned to type Y1: Intended for use below 0°C with exposure to UV, but no exposure to rain; tested in accordance with EOTA TR024. EAD 350454-00-1104 Firestopping and fire sealing products, penetration seals.
- Third party certification; UL-EU Certificate UL-EU-01174-CPR.
General information
Color | Red |
Material | Manufacturer guidanceSemi-flexible, intumescent. |
Uniclass | |
CAWS | P12/370 Pipe collar P12/43 Pipe collar |
Product range |
Specification data - Concealed intumescent pipe collars
Sizes | 60 mm diameter.Guidance for specification option: For maximum 25 x 25 mm apertures. 100 mm diameter.Guidance for specification option: For maximum 50 x 50 mm apertures. |
Fire performance | Up to two hours (120 minutes).Guidance for specification option: To EN 1366-3:2009, dependent on application. |
Sound insulation rating | RW (C:Ctr) = 67 (-1:-6) dB.Guidance for specification option: To EN 10140-1,2,4,5/ EN ISO 717-1. |
Third-party certification | UL-EU Certificate: UL-EU-01174-CPR. |
Position | Surface mounted. |
Sustainability data
Country of material origin | United Kingdom |
Material | Manufacturer guidanceSemi-flexible, intumescent. |
Third party certifications
UL-EU Certified

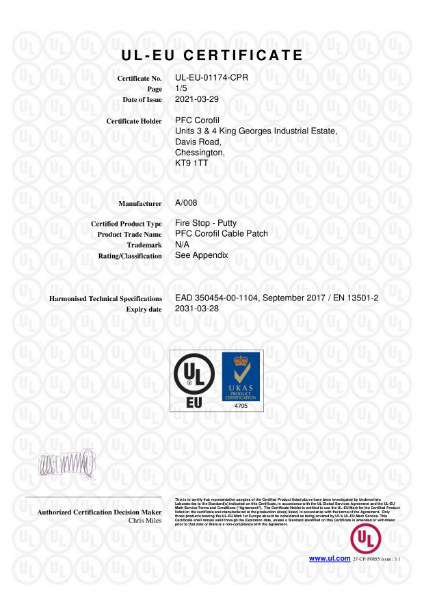

PFC Corofil Cable Patch CCPH - UL-EU Certificate: 01174-CPR
Literature

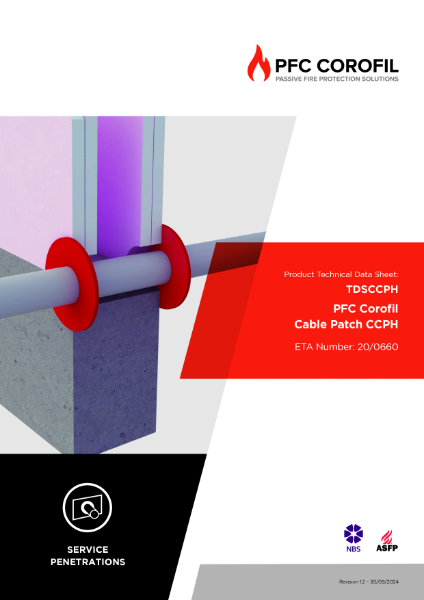

PFC Corofil Cable Patch CCPH - Datasheet
