PermaBound Soft Gravel

Verified by manufacturer 13 days ago

14641 - Red/Black

GCL Products Ltd Variant:

Permeable, hybrid rubber & gravel surfacing system

Jump to:
+44 (0) 1246 418144 Website

Application

Wide range of applications including paths, walkways, nature trails, cycle tracks, golf course buggy tracks, tree pits, patios and borders.

Description

Soft Gravel is a bound surfacing solution that creates seamless, durable, fully SuDs compliant and low-maintenance surfaces. Soft Gravel is a term used to describe a permeable, hybrid rubber and resin bound gravel surfacing system which is an attractive alternative to hardcore, tarmac or concrete for a wide range of applications including paths, walkways, nature trails, cycle tracks, golf course buggy tracks, tree pits, patios and borders.


By combining recycled rubber chips (SBR) and washed, dried aggregate with a single-part binder, a flexible but hardy surface can be created which requires little-to-no maintenance and will resist some of the harsh conditions a public surface is subjected to.


Features and benefits:

  • SUDS compliant: soft gravel surfaces are permeable surface which allows water to drain away naturally and help reduce surface water build up.
  • Slip resistant: the combination of rubber and gravel produces a non-slip surface suitable for a wide range of applications.
  • Easy to install: soft gravel is simple to lay once correctly mixed which can be levelled and compacted with a hand trowel.
  • Planning exemptions: the use of soft gravel to create the required surface can reduce or even eliminate planning requirements.
  • Decorative: the combination of rubber and gravel will produce attractive surfaces for each project.
  • Low maintenance: soft gravel requires little-to-no maintenance and will resist some of the harsh conditions a public surface experiences.
  • Versatile: creating seamless, flexible yet hardy surfaces, soft gravel can be utilized for a whole host of applications.

General information

Color

Black

Red

Silver

Gold

Finish

Other

Material

Polyurethane (PUR)

Rubber

Gravel

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

25 mm

35 mm

Uniclass

Pr_35_31_05_71 Resin-bound mixed aggregate surfacingsPrimary

CAWS

Q26/260 Resin bound stone aggregate surfacing

Q23/20 Resin bound aggregate surfaces

Q23/226 Proprietary resin bound chippings overlay

Q23/225 Proprietary resin bound chippings

Specification data - Resin-bound mixed aggregate surfacings

Aggregate

-

Type

Gravel.

Size (nominal)

2—5 mm.

Colour

Red.

Binder

-

Type

Polyurethane resin.

Colour

Clear.

Aggregate/Rubber

SBR Rubber.

Colour

Black.

Manufacturer guidance

Aggregate/rubber.

Size

2–6 mm.

Manufacturer guidance

Aggregate/rubber.

Coverage

2 m² at 25 mm.

Manufacturer guidance

Approximately.

Curing time

6 to 24 hours.

Guidance for specification option:

Full strength in three days.

Samples required

Not required.

All black soft gravel sample.

Guidance for specification option:

  • 14647
  • 120 x 120 x 12 mm.
  • 0.2 kg.

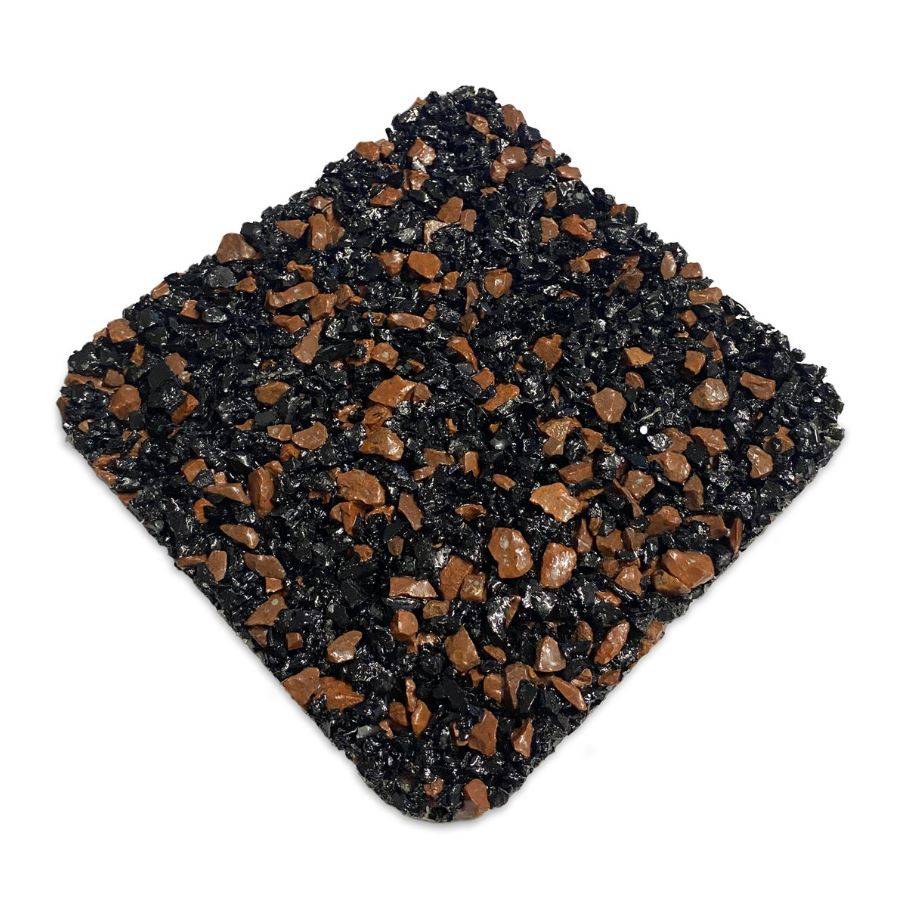

Red/black soft gravel sample.

Guidance for specification option:

  • 14648.
  • 120 x 120 x 12 mm.
  • 0.2 kg.

Silver/black soft gravel sample.

Guidance for specification option:

  • 14650.
  • 120 x 120 x 12 mm.
  • 0.2 kg.

Gold/black soft gravel sample.

Guidance for specification option:

  • 14649.
  • 120 x 120 x 12 mm.
  • 0.2 kg.

Sustainability data

Country of product manufacture

United Kingdom
