Pedestrian Parapet - Guardrail
Verified by manufacturer 4 months ago
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type
Pedestrian parapet guardrail.
Application
Suitable for:
- Highways.
- Industrial areas.
- Ramps.
- Culverts/ wingwalls.
- Subways.
Description

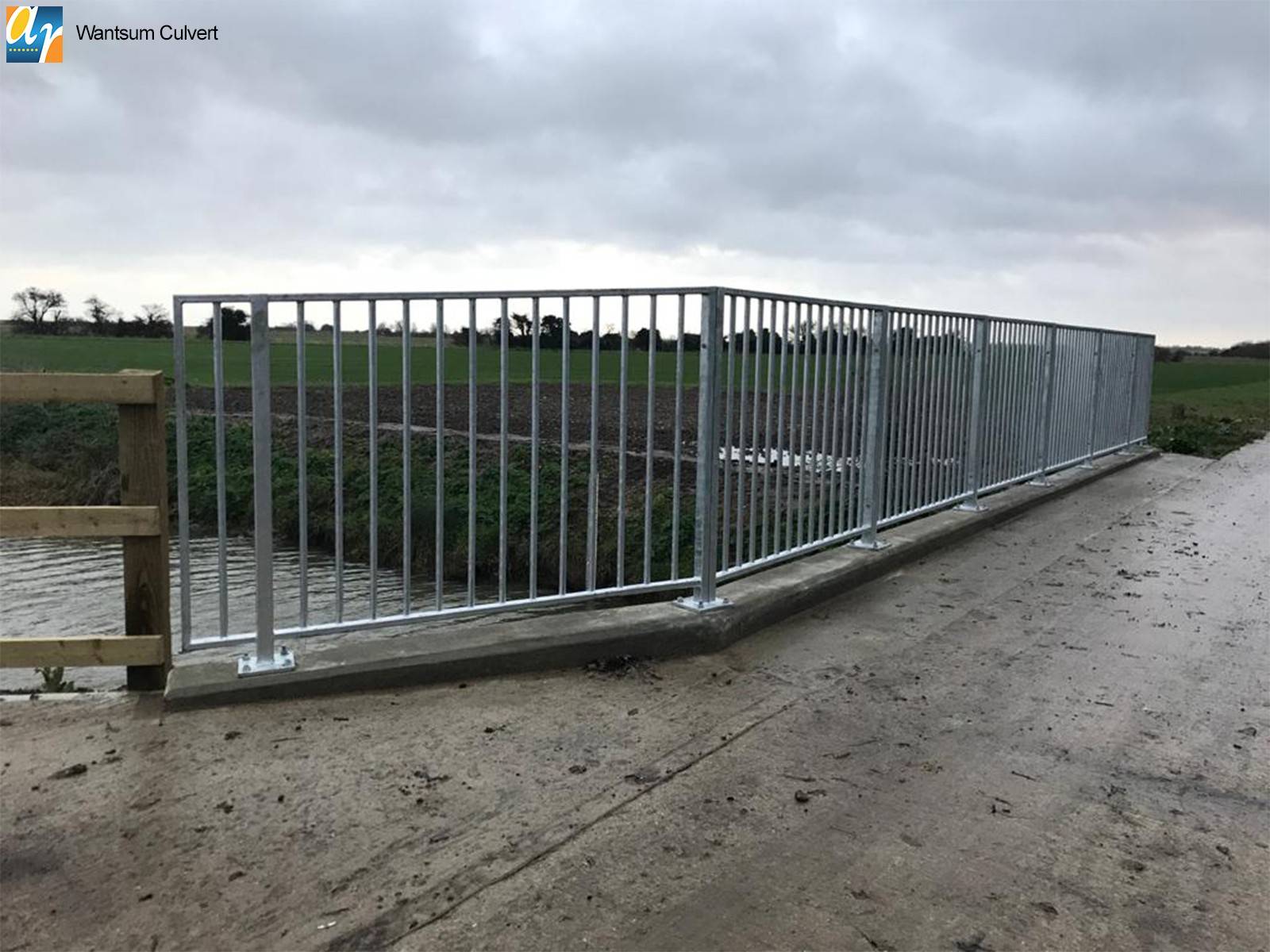

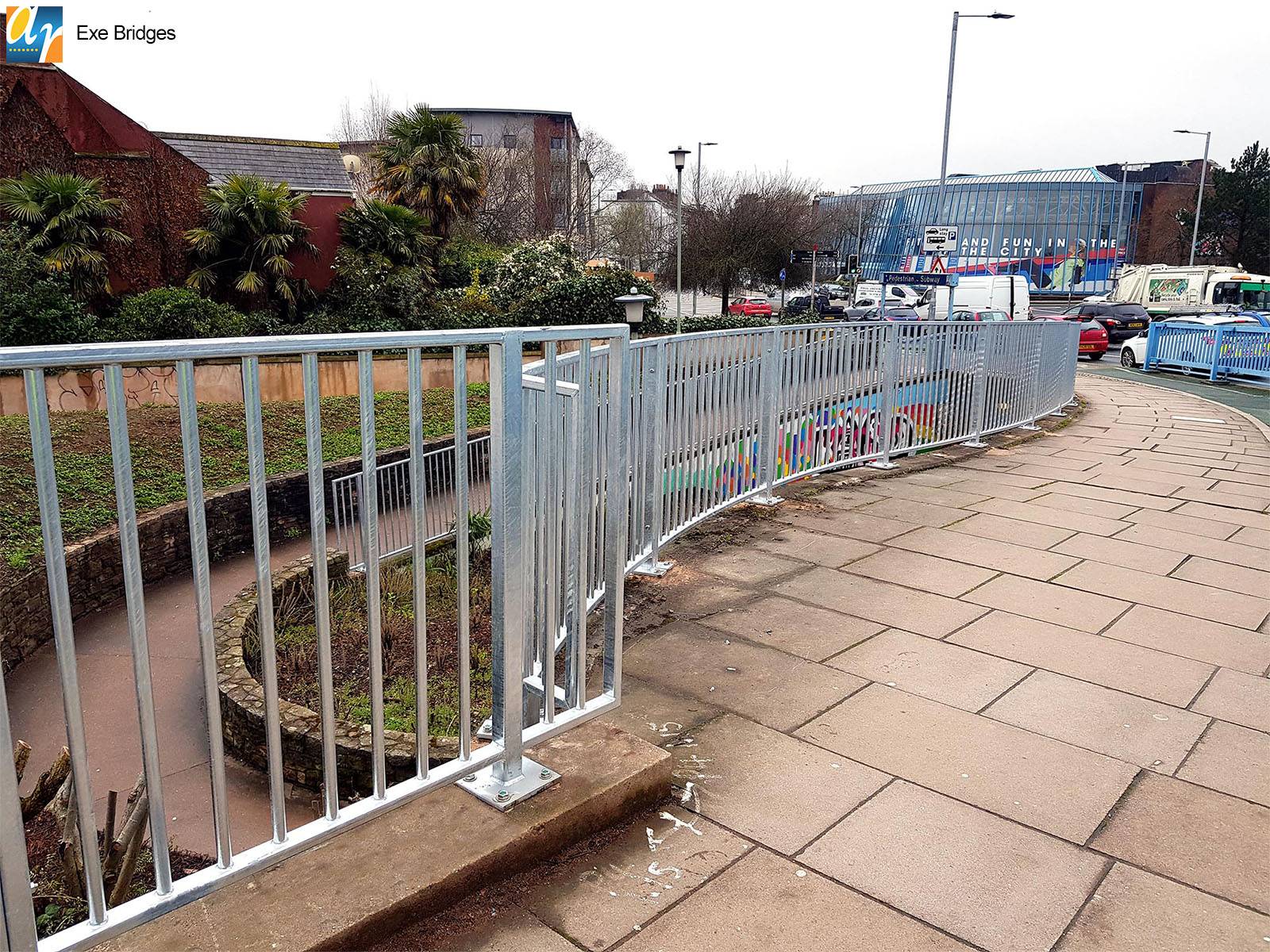

A pedestrian parapet guardrail is a restraint system installed on the edge of a bridge, retaining wall or similar structure where there is a risk of fall. Pedestrian parapet can also be used as culvert railings, fixed to the headwall and the wing wall of the structure.
Features and benefits:
- Its material composition is more heavy-duty specification than standard pedestrian guardrails.
- Manufactured to suit site conditions and raked, radiused and special length panels can be supplied.
- Can be fabricated to suit gradients and radius.
- Powder-coating available.
- Three standard colour finishes: galvanized, black and green.
- Hollow sections S235JR; solid sections S275JR.
- Gates available to suit.
- Surface mounted using baseplates and a suitable chemical anchor.
- Meets the loading requirements of BS 7818 Class 3C.
General information
Color | Silver Grey Black Green Other |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | 1830 mm |
Height | 1150 mm 1400 mm 1500 mm |
Uniclass | |
CAWS | Q40/340 Steel vertical bar fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data - Metal pedestrian parapet systems
Standard | To BS 7818, Class 3C. |
Preparatory work | To system manufacturer’s recommendations. |
Posts | 60 x 40 x 3 mm RHS stiles.Guidance for specification option: 1150 mm high. 60 x 40 x 5 mm RHS stiles.Guidance for specification option: 1400 mm and 1500 mm high. |
Post foundations | Guidance for specification option: Insert requirements.
|
Base boards | 200 x 200 mm RSF steel baseplates. |
Rails | 50 x 30 x 3 mm RHS steel rails. |
Panels | Steel panels with ∅33 mm CHS infills. |
Site applied finishes | Guidance for specification option: Consult manufacturer for details and insert requirements or omit. |
System accessories | Not required.Gates available to suit.Guidance for specification option: Consult manufacturer and insert requirements. |
Finish/ Colour | Hot dipped galvanized to BS EN ISO 1461. Polyester powder-coated, black (RAL 9005). Polyester powder-coated, green (RAL 6005). Polyester powder-coated, RAL colour. Guidance for specification option: Available on request; consult manufacturer and insert requirements. |
Panel width | 1830 mm. |
Height | 1150 mm above ground. 1400 mm above ground. 1500 mm above ground. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel |
Third party certifications
Third party certifications
ISO 14001 Environmental Management Systems
ISO 14001:2015 Environmental Management System
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
Literature
Pedestrian Parapet Data Sheet
Case studies
Metrolink, Manchester
