Application

Designed for residential applications with access to warden or site manager-controlled bin areas. Can also be used within certain commercial applications.

Description

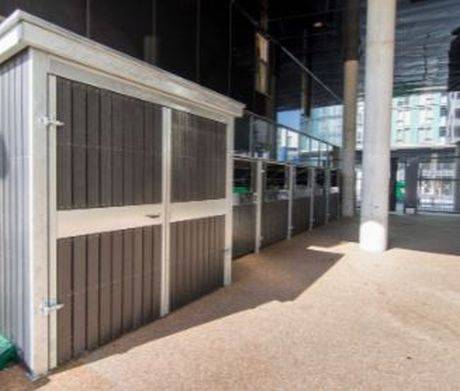

Modular bin room storage units for four-wheeled bins of 1280 L capacity.

Features and benefits:

  • Durable construction, with a fully welded steel frame manufactured in accordance with BS EN 1090, and galvanized to BS EN 1461.
  • Provides an innovative modular bin room design for four-wheeled 1280 L bins.
  • WILD® greenroof system option available.
  • The door panel module accommodates multiple access configurations within the unit. The lock case can be fitted with a choice of key managed by mechanical or powered keypad access options.
  • Consolidates waste streams in a single or series of neat recycling centres.
  • Can be easily coordinated with architectural building fabrics.
  • A range of standard and custom cladding and finish options are available (including vandal resistant steel and hardwood slatted panels) to suit project requirements. Steel frame can be factory refurbished with replacement cladding and fittings if required.
  • Recyclable at the end of product life.
  • CE marked.

Fire performance:

  • Fire retardant options for tongue and groove v-jointed (TGV) and sheet type cladding have a fireboard MgO internal liner with either treated timber or coated steel panel outer to provide Euro-class A1, UK class 0 reaction to fire. The panels are manufactured from materials of limited combustibility throughout to provide 30 minutes' fire resistance to BS 476.
  • Where fire retardant properties are required for an open-spaced cladding type, SE timber plank can be specified with a treatment process providing a Euro-class B, UK class 0 Reaction to Fire classification.

Applications:

Designed for residential applications with access to warden or site manager-controlled bin areas. Can also be used within certain commercial applications.

General information
Uniclass 2015
Pr_40_50_07_07 Bin storesPrimary
Specification data - Bin stores
Product Reference

PBH Bin Storage Units

Type

PBH36.26

Fits two 1280 L four-wheeled bins. Width: 2550 mm.

PBH36.32

Fits four 1280 L four-wheeled bins. Width: 3150 mm.

PBH36.50

Fits six 1280 L four-wheeled bins. Width: 4950 mm.

PBH36.62

Fits eight 1280 L four-wheeled bins. Width: 6150 mm.

PBH36.74

Fits ten 1280 L four-wheeled bins. Width: 7350 mm.

PBH36.92

Fits twelve 1280 L four-wheeled bins. Width: 9150 mm.

PBH48.26

Fits four 1280 L four-wheeled bins. Width: 2550 mm.

PBH48.38

Fits six 1280 L four-wheeled bins. Width: 3750 mm.

PBH48.50

Fits eight 1280 L four-wheeled bins. Width: 4950 mm.

PBH48.62

Fits ten 1280 L four-wheeled bins. Width: 6150 mm.

PBH48.74

Fits twelve 1280 L four-wheeled bins. Width: 7350 mm.

PBH48.86

Fits sixteen 1280 L four-wheeled bins. Width: 8550 mm.

PBH48.98

Fits eighteen 1280 L four-wheeled bins. Width: 9750 mm.

Cladding/ Finish

See 'Options' below and insert requirements.

Door configuration

Left hand hung

Right hand hung

Roof

Standard

WILD® greenroof system

Locking

Latch and code secure lock

Mechanical code lock with code secured entrance.

Latch and eurocylinder lock

Self-latching daybolt. Eurocylinder key-operated self-latching bolt lock.

Latch and FB2 key lock

Self-latching daybolt. FB2 lever key-operated self-latching bolt lock.

Latch and triangle key lock

Self-latching daybolt. Triangle key-operated self-latching bolt lock.

Latch only

Self-latching daybolt. No bolt lock.

Slide bolt and padlock

Self-latching daybolt. Integral slide bolt/ handle with padlock provision.

Accessories/ Other requirements:

Coloured fascia details and other accessories are available. Consult manufacturer for details and insert requirements.

Standard product features

Height:

2260 mm.

Depth:

  • PBH36: 3650 mm.
  • PBH48: 4850 mm.

Product Options

Cladding/ Finish:

- Timber (ForestPanel™):

  • ForestPanel™: FSC European redwood with light green finish and 100 mm PSE planks.
  • ForestPanel™ Cedar: FSC Western red cedar with a natural finish and 100 mm PSE planks.
  • ForestPanel™ Colour: FSC European redwood in a choice of colour, and 100 mm PSE planks. Consult manufacturer and insert requirements.
  • ForestPanel™ FR: FSC European redwood with a clear finish, fire-retardant coating and 100 mm PSE planks.
  • ForestPanel™ Iroko: FSC Iroko with an oiled finish and 70 mm PSE planks.

- SSAB steel (Firenze™):

  • Firenze™ Anthracite: SSAB steel panel with Plastisol P200® coating, finished in anthracite grey.
  • Firenze™ Anthracite FR: SSAB steel panel with Plastisol P200® coating, finished in anthracite grey. Includes fireboard MgO core internal liner.
  • Firenze™ Black: SSAB steel panel with Plastisol P200® coating, finished in black.
  • Firenze™ Black FR: SSAB steel panel with Plastisol P200® coating, finished in black. Includes fireboard MgO core internal liner.
  • Firenze™ Blue FR: SSAB steel panel with Plastisol P200® coating, finished in cornflower blue. Includes fireboard MgO core internal liner.
  • Firenze™ Green FR: SSAB steel panel with Plastisol P200® coating, finished in juniper green. Includes fireboard MgO core internal liner.
  • Firenze™ Grey: SSAB steel panel with Plastisol P200® coating, finished in goosewing grey.
  • Firenze™ Grey FR: SSAB steel panel with Plastisol P200® coating, finished in goosewing grey. Includes fireboard MgO core internal liner.
  • Firenze™ Mushroom FR: SSAB steel panel with Plastisol P200® coating, finished in mushroom. Includes fireboard MgO core internal liner.

- Galvanized steel (Firenze™):

  • Firenze™ Design Wrap: Galvanized steel panel with SAV graphic design finish. Custom design. Consult manufacturer and insert requirements.
  • Firenze™ Design Wrap FR: Galvanized steel panel with SAV graphic design finish. Custom design. Includes fireboard MgO core internal liner. Consult manufacturer and insert requirements.
  • Firenze™ Freestyle: Galvanized steel panel with R5-T8 perforated pattern and powder-coated finish. Custom design. Consult manufacturer and insert requirements.

- High density polyethylene (HDPE - Tuffplas™):

  • Tuffplas™ Black: HDPE, 100% recycled. Black woodgrain finish. 100 mm SE plank.
  • Tuffplas™ Brown: HDPE, 100% recycled. Brown woodgrain finish. 100 mm SE plank.
  • Tuffplas™ Green: HDPE, 100% recycled. Green woodgrain finish. 100 mm SE plank.
  • Tuffplas™ Grey: HDPE, 100% recycled. Grey woodgrain finish. 100 mm SE plank.

Locking:

  • 100% stainless steel mechanism.
  • Aluminium handles (latch mechanisms).
