PaveRail
Application

Terraces, podiums, roof decks and gardens.

Description

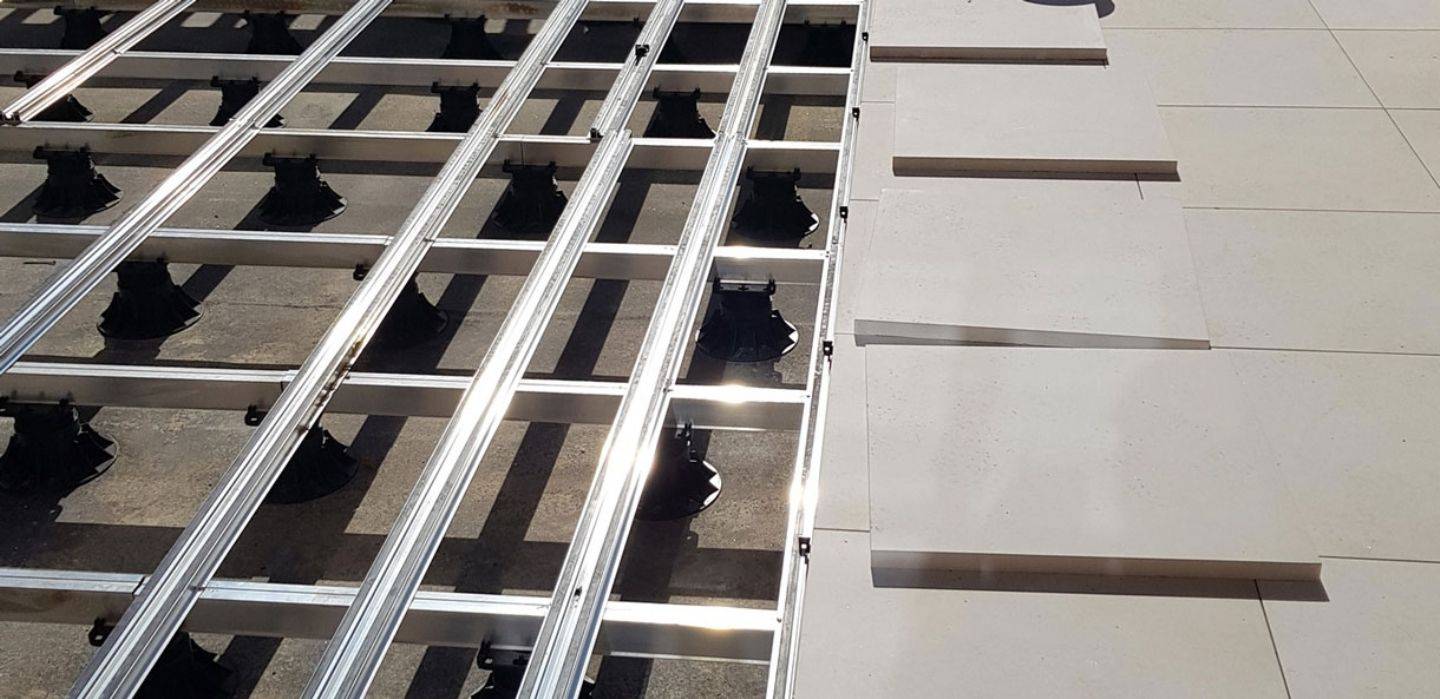

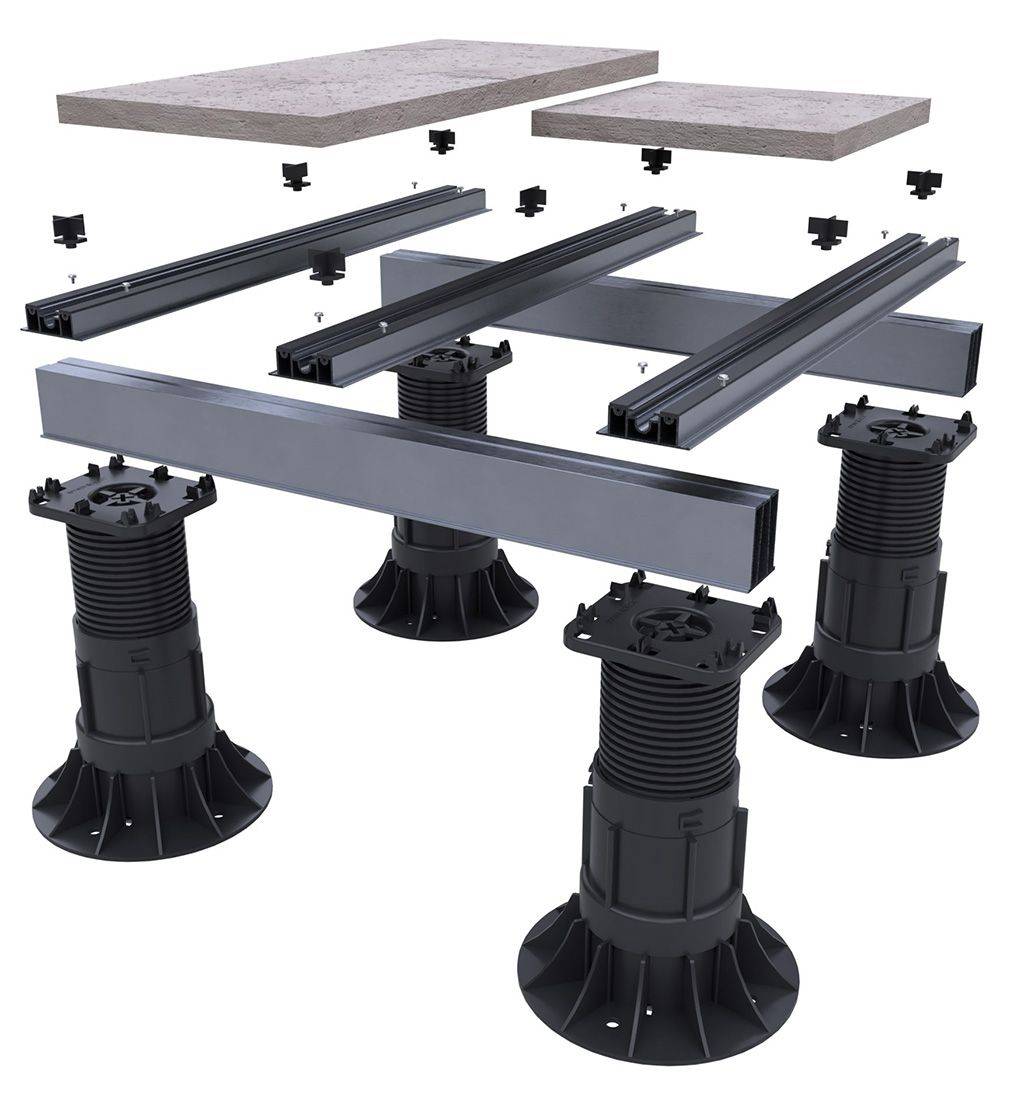

PaveRail™ provides a completely rigid platform for paving slabs. The strong aluminium joists overlap to create a lattice framework with the maximum possible level of support for all calibrated paving types, including natural stone, concrete and porcelain.

Features and benefits:

  • Unlimited design possibilities, allowing more creative paving formats including random-length, mixed width, stack bond, stretcher bond and plank paving to suit project requirements.
  • Features integrated ethylene propylene diene monomer (EPDM) gasket for effective shock-absorption.
  • Additional rails can be introduced to cater for thinner/ weaker paving.
  • High compressive strength.
  • Allows for water drainage through the paving.
  • Spacers are provided which are inserted into top rail, secured by a twist-lock function which prevents the movement of slabs.
  • Slope-correction up to 10.5%.

Applications:

Terraces, podiums, roof decks and gardens.

General information
Color

Grey

Features

Perfect for terraces, podiums, roof decks, balconies, capable of supporting loads in excess of 4400 kg, resistant to moulds, algae, alkali, bitumen, UV

Finish

Aztec Zinc Nickel corrosion resistant finish

Material

Mild steel

Shape

Square base, tubular, square head

Size

120 x 120 mm (height varies)

WarrantyDescription

30 year warranty, 60 year design life

Uniclass 2015
Pr_20_85_47_22 Decking and paving pedestalsPrimary
CAWS

J21/467 Support system for precast concrete paving slabs

J31/370 Precast concrete paving slabs

J31/375 Paving tiles

J31/80 Precast concrete paving slabs

J41/467 Support system for precast concrete paving slabs

J41/90 Precast concrete paving slabs

J42/467 Support system for precast concrete paving slabs

K11/295 Floating floor system

Q37/460 Support pedestals

Q55/395 Support pedestals

Specification data - Decking and paving pedestals
Product Reference

PaveRail™

Lower joist depth

25 mm

60 mm

Finish (top rail and lower joist)

Mill finish

Standard.

Powder coated, RAL

Any standard RAL colour available, insert requirements.

Spacer tab width

2 mm

4 mm

Supporting pedestals

RDA–1

40–56 mm self-levelling adjustable pedestal.

RDA–2

50–70 mm self-levelling adjustable pedestal.

RDA–3

70–110 mm self-levelling adjustable pedestal.

RDA–4

110–160 mm self-levelling adjustable pedestal.

RDA–5

150–210 mm self-levelling adjustable pedestal.

RDA–6

200–300 mm self-levelling adjustable pedestal.

RDA–7

300–400 mm self-levelling adjustable pedestal.

RDA–8

400–500 mm self-levelling adjustable pedestal.

RDA–9

500–600 mm self-levelling adjustable pedestal.

RDA–10

600–700 mm self-levelling adjustable pedestal.

RDA–11

700–800 mm self-levelling adjustable pedestal.

RDA–12

800–900 mm self-levelling adjustable pedestal.

RDA–13

900–1000 mm self-levelling adjustable pedestal.

Standard product features

System height:

55–1087 mm (depending on lower joist and supporting pedestal height). Consult manufacturer’s literature for further details.

Supplied lengths (top rail and lower joist):

3600 mm.

Material:

  • Top rail and lower joist: Aluminium Alloy 6063, T6.
  • Supporting pedestals: Polypropylene (PP).
  • Spacers: Glass-filled nylon.

Allowable load:

  • Uniformly distributed: 4.0 kN/m².
  • Concentrated: 1.4 kN.

Product Options

Spacer tabs:

For equal spacing between slabs.
