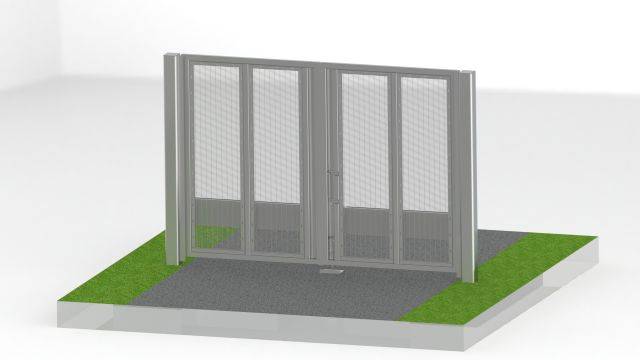

PAS68 tested swing gate. The gates are manufactured from 50 x 50 mm box section with 25 mm bars spaced at 100 mm intervals (approximately).

Optionally available are various safety systems and manual release in the event of power failure.

Unique in-house design solutions available to match project requirements.

Features and benefits:

  • Available as a manual double leaf swing gate with an opening of up to 8.0 m.
  • Also available as an automated single leaf gate swing with an opening of up to 6.0 m.
  • Heights up to 3.6 m available.
  • Very secure with opening and closing speed of 25–35 seconds.
  • Full programmable logic controller (PLC).
  • Galvanized and powder coated finish.
  • Smooth and quiet operation.
  • Low maintenance with few moving parts.
  • Available with any mesh infill, or cladding.

PAS68:2010 Classification:

  • Model No: EAG-PAS68-SG-040.
  • PAS68 V/7500[N2]/64/90:1.1/0.0.
  • Tested with a N2 7.5 tonne vehicle at 40 mph (64 kph).
  • Gate tested at 8.0 m clear opening x 2.4 m high.
  • Only 1.1 m of penetration and zero debris.
  • Shallow foundations of only 380 mm.
  • Gate frame can be shipped in sections and assembled on site.
  • Aesthetically pleasing and able to take power fence or security toppings.

Drive and controls:

  • 240 V/ 16 A supply.
  • PLC design available with frequency inverter speed control.
  • 24 V or three-phase motor available.
  • Heavy-duty hinges.
  • Manual over-ride system.

Safety:

  • Protected with CAT 3 safety edges.
  • Complies with gate safety standard EN 13241-1.
  • Hi/ Lo safety photocells across the threshold.
